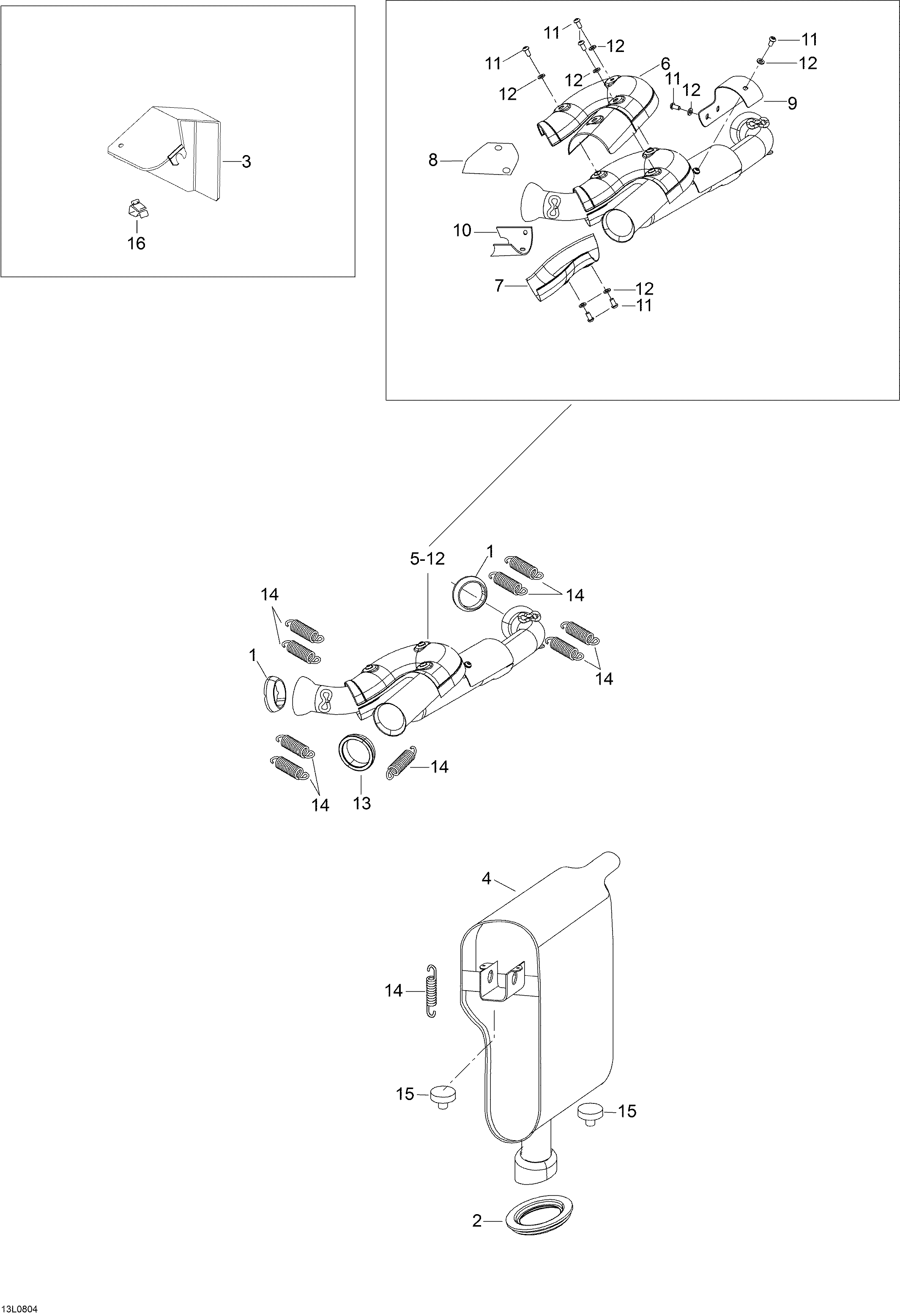

01- Exhaust System для BRP Ski-Doo Expedition V-1300 - 2008
-
№АртикулНазвание
-
1514054174 Exhaust GasketExhaust Gasket
-
2570039000 Exhaust GrommetExhaust Grommet
-
3605352345 Heat ProtectorHeat Protector
-
4605252818 MufflerMuffler
-
5605154771 Tune Pipe, Yeti 4-Tec. Sisaltaa osat 5-12Tune Pipe, Yeti 4-Tec. Sisaltaa osat 5-12
-
11205461060 Socket Head Screw M6 X 10Socket Head Screw M6 X 10
-
12M20032 WasherWasher
-
13514054174 Exhaust GasketExhaust Gasket
-
14415107100 SpringSpring
-
15514053654 Rubber BumperRubber Bumper
-
16M27017 Gear ClampGear Clamp
