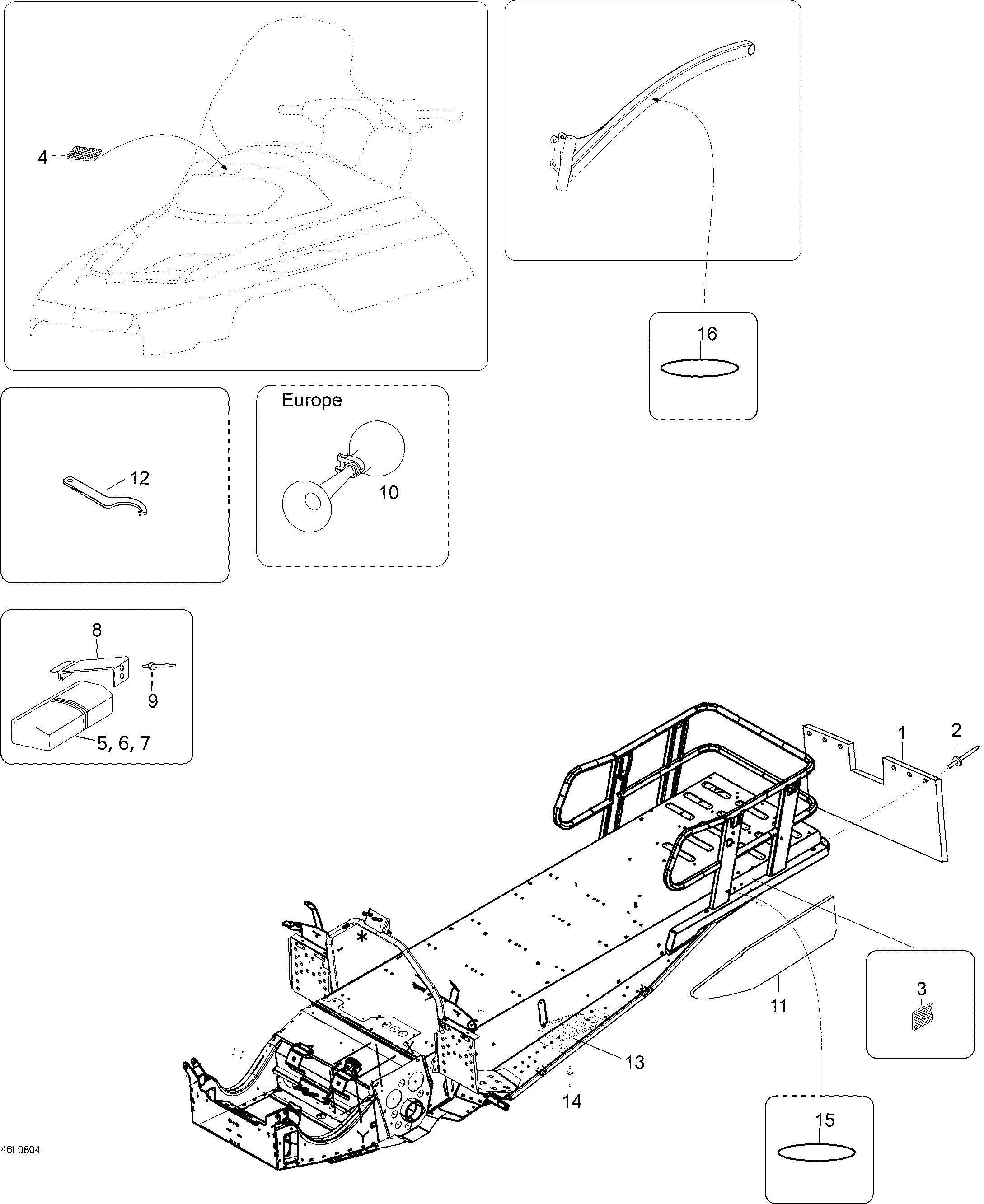

09- Utilities для BRP Ski-Doo Expedition V-1300 - 2008
![](/wa-data/public/shop/sheme/bombardier/ski-doo/ca597f42-b5e4-43e3-b4a0-5af35e80ea42.png)
-
№АртикулНазвание
-
1M538629 Snow GuardSnow Guard
-
2M36036 Rivet-BlackRivet-Black
-
3M21121 Reflector, AmberReflector, Amber
-
4M21060 Reflector, WhiteReflector, White
-
5605352219 Tool SetTool Set
-
6A50121179000 Tool BoxTool Box
-
8M5346728 Spring PlateSpring Plate
-
9M36108 RivetRivet
-
10415040700 HornHorn
-
11605354746 LH Side Snow GuardLH Side Snow Guard
-
11605354747 RH Side Snow GuardRH Side Snow Guard
-
12529035582 Adjustment WrenchAdjustment Wrench
-
13M36489 RivetRivet
-
14605354068 FootrestFootrest
-
15520000523 ReflectorReflector
-
16520000525 ReflectorReflector
