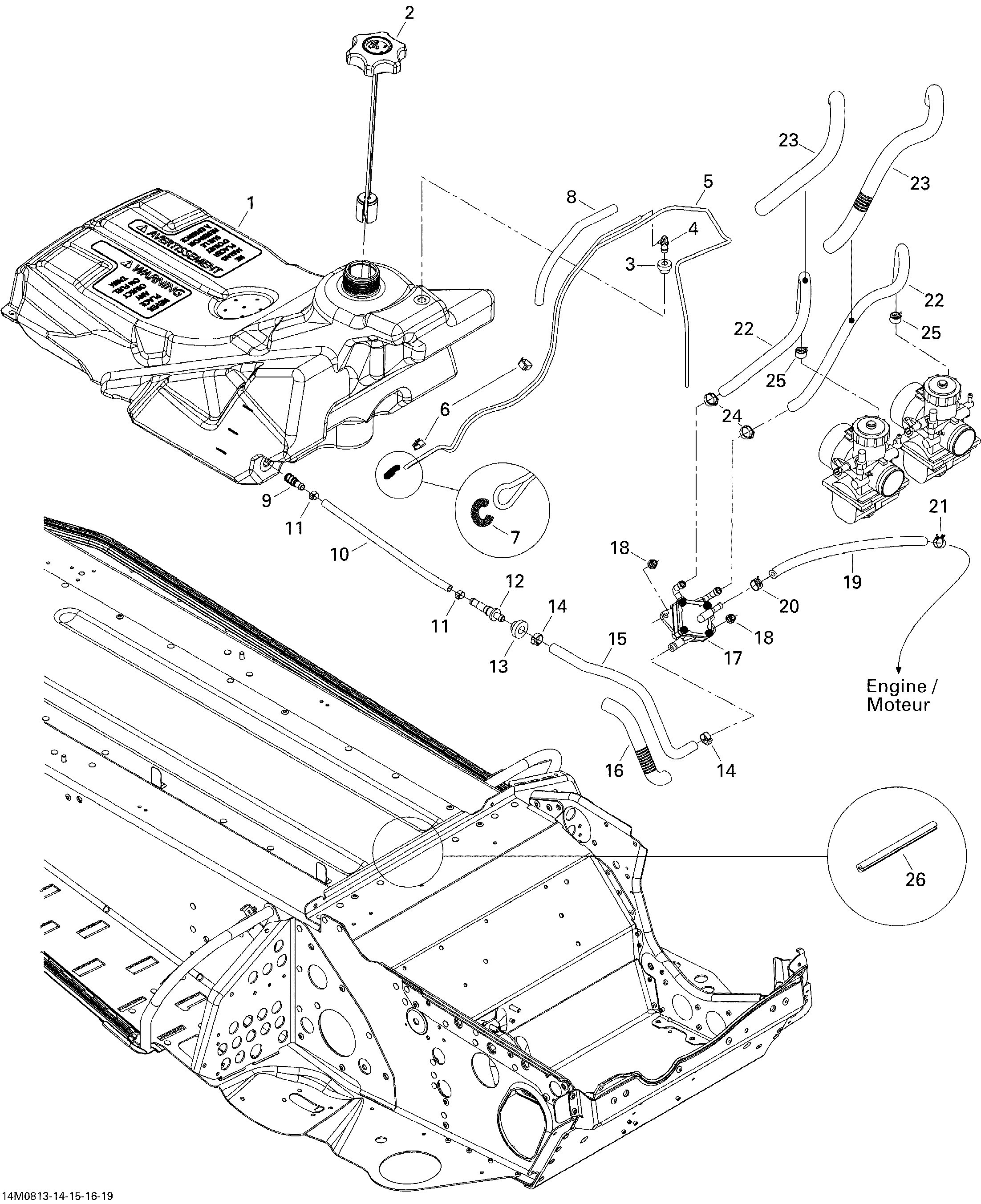

02- Fuel System для BRP Ski-Doo Freestyle PARK 550F - 2008
-
№АртикулНазвание
-
1513033179 Fuel TankFuel Tank
-
2513033361 Fuel Tank CapFuel Tank Cap
-
3513032908 GrommetGrommet
-
4414814100 Male ConnectorMale Connector
-
5415080100 LineLine
-
6414227300 ClipClip
-
7414818200 SpringSpring
-
8415079900 Tubing 10 mmTubing 10 mm
-
9414872100 Fuel FilterFuel Filter
-
10415005700 HoseHose
-
11513033010 Norma Spring ClampNorma Spring Clamp
-
12414872700 Male ConnectorMale Connector
-
13570273900 GrommetGrommet
-
14293650053 Crimp ClampCrimp Clamp
-
15513033374 Formed HoseFormed Hose
-
16415080000 Tubing 16 mmTubing 16 mm
-
17403901813 Fuel PumpFuel Pump
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19513033111 Formed HoseFormed Hose
-
20414415200 Universal Spring ClampUniversal Spring Clamp
-
21513033029 Spring ClampSpring Clamp
-
22513033022 Hose 8 mm, MeterHose 8 mm, Meter
-
23415080000 Tubing 16 mmTubing 16 mm
-
24293650047 Oetiker ClampOetiker Clamp
-
25513033029 Spring ClampSpring Clamp
-
26509000263 TrimTrim
