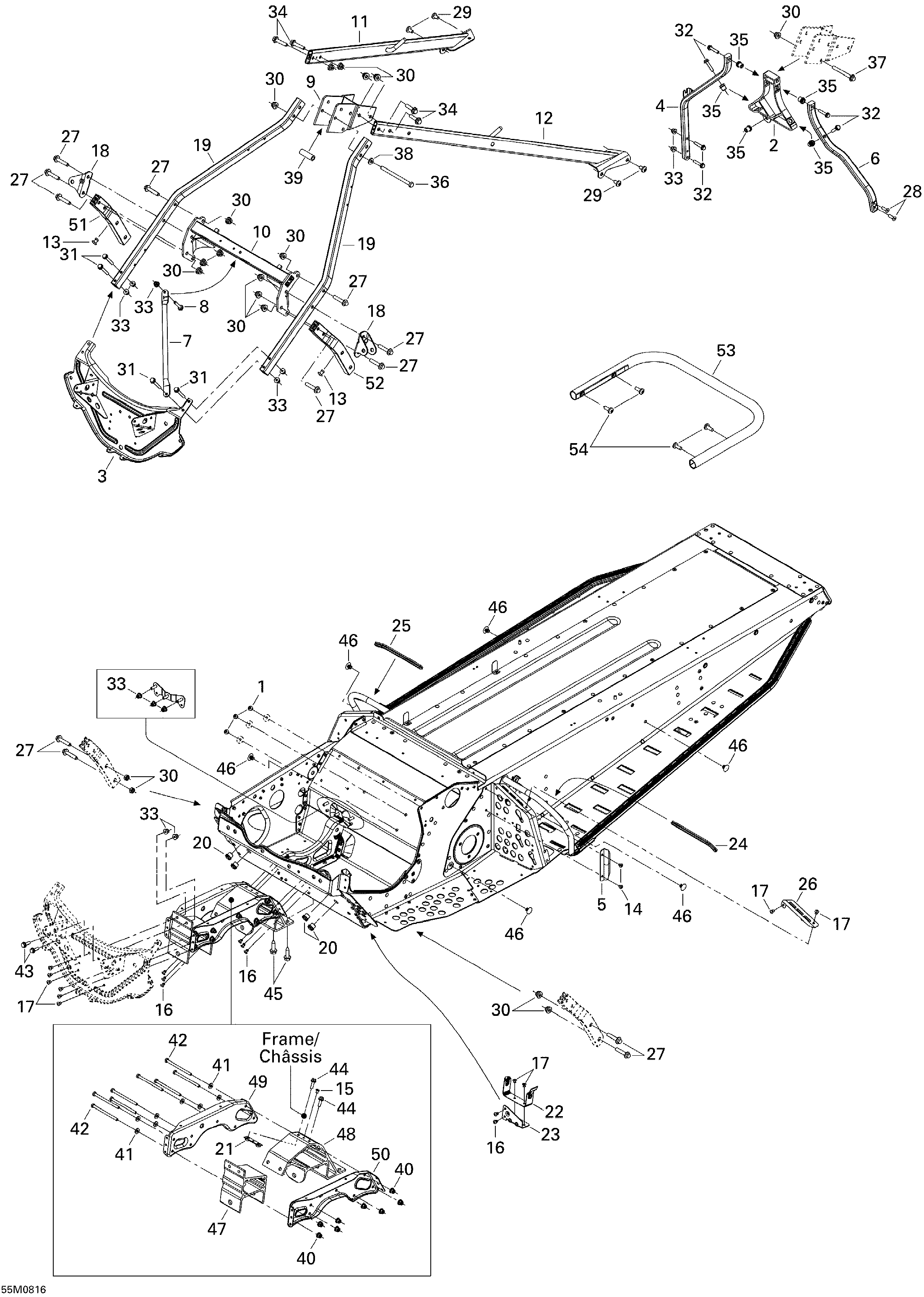

09- Frame and Components для BRP Ski-Doo Freestyle PARK 550F - 2008
-
№АртикулНазвание
-
1293150096 RivetRivet
-
2518324377 Center StiffenerCenter Stiffener
-
3518324216 Front PlateFront Plate
-
4518324397 RH Handle SupportRH Handle Support
-
5518317504 Cable ProtectorCable Protector
-
6518324376 LH Handle SupportLH Handle Support
-
7518324988 BraceBrace
-
8207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
9518324196 Bracket BlockBracket Block
-
10518325150 Upper Cross MemberUpper Cross Member
-
11518324480 RH MemberRH Member
-
12518325193 LH MemberLH Member
-
13293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
14390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
15390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
16390909100 Avex RivetAvex Rivet
-
17390909200 Avex RivetAvex Rivet
-
18518324202 Shock BracketShock Bracket
-
19518325074 Upper TubeUpper Tube
-
20293450166 InsertInsert
-
21518324204 Holder PlateHolder Plate
-
22518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
23518324923 Guard Belt SupportGuard Belt Support
-
24271000110 Protection TrimProtection Trim
-
25271000110 Protection TrimProtection Trim
-
26518323105 Plate, BlackPlate, Black
-
27207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
28205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
29250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
31207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
32250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
35415107300 InsertInsert
-
36230081044 Hex. Screw M8 X 110Hex. Screw M8 X 110
-
37207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
38503189157 WasherWasher
-
39506150500 Housing BushingHousing Bushing
-
40233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
41250200039 Flat WasherFlat Washer
-
42207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
43207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
44207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
45250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
46518321954 Fastener PanelFastener Panel
-
47518324019 Front Attachment, Front SuspensionFront Attachment, Front Suspension
-
48518324020 Rear Attachment, Front SuspensionRear Attachment, Front Suspension
-
49518324014 RH Lateral ReinforcementRH Lateral Reinforcement
-
50518324017 LH Lateral ReinforcementLH Lateral Reinforcement
-
51518324214 RH Vertical TubeRH Vertical Tube
-
52518324215 LH Vertical TubeLH Vertical Tube
-
53518323992 Rear BumperRear Bumper
-
54236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
