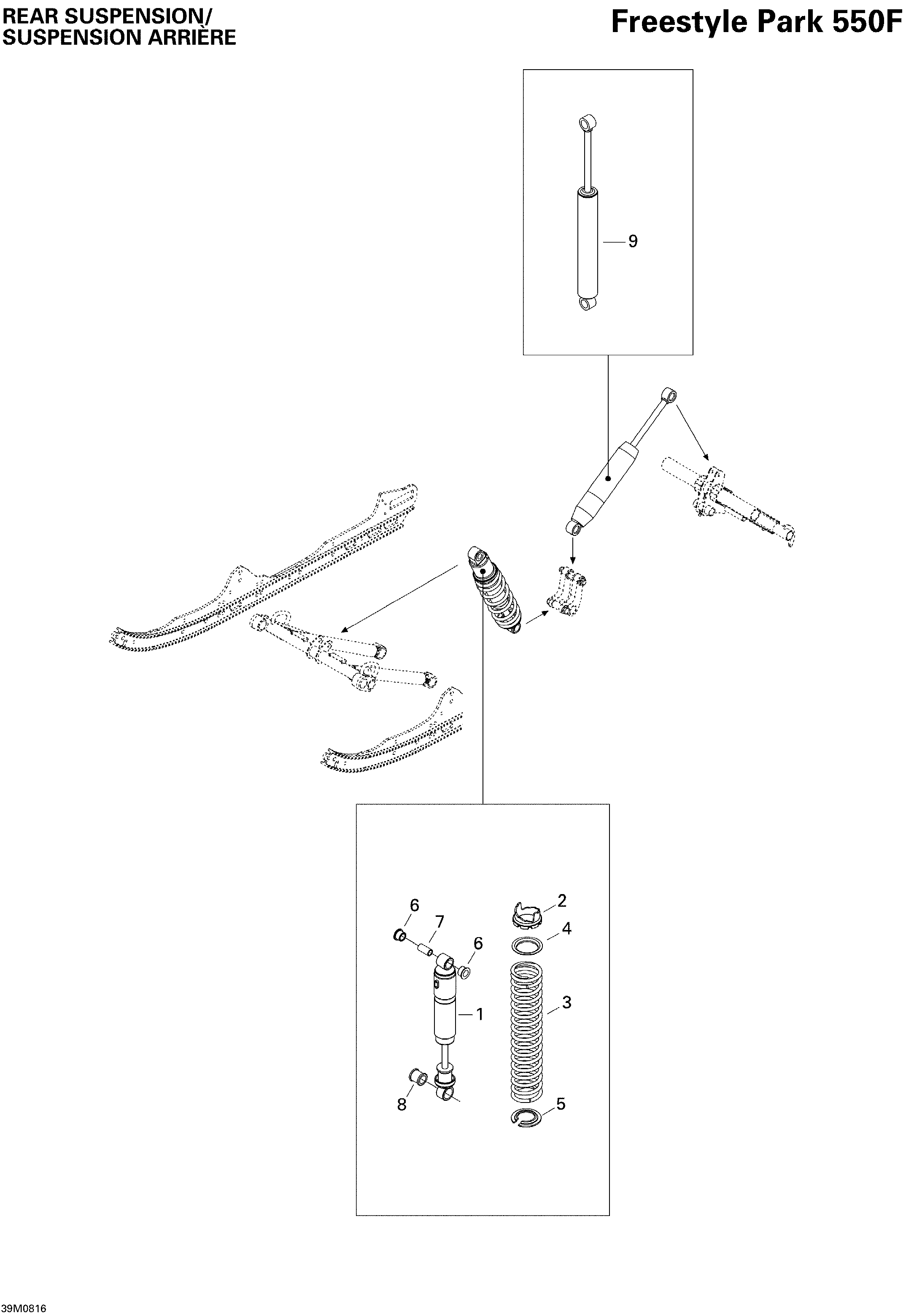

08- Rear Suspension Shocks для BRP Ski-Doo Freestyle PARK 550F - 2008
-
№АртикулНазвание
-
1503191464 Center ShockCenter Shock
-
2505070150 Adjustment CamAdjustment Cam
-
3503191476 SpringSpring
-
4503191872 Spring GuideSpring Guide
-
5503189912 Spring StopperSpring Stopper
-
6503189117 CushionCushion
-
7503189282 BushingBushing
-
8503189271 CushionCushion
-
9503191470 Rear ShockRear Shock
