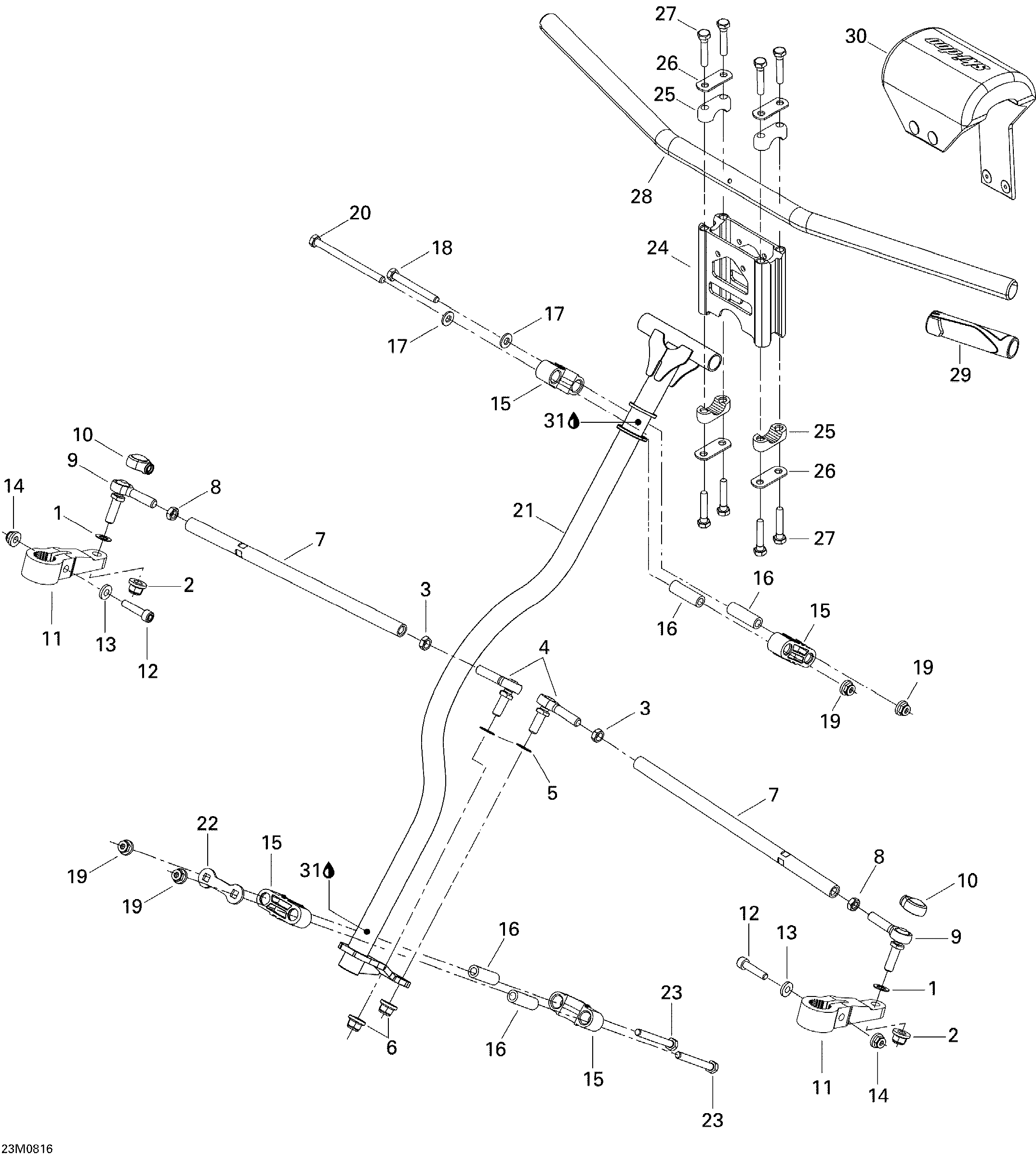

07- Steering для BRP Ski-Doo Freestyle PARK 550F - 2008
-
№АртикулНазвание
-
1503175800 WasherWasher
-
2250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
3250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
4506151845 LH Joint BallLH Joint Ball
-
5503175800 WasherWasher
-
6250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
7506151884 Tie RodTie Rod
-
8732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
9506152212 Ball JointBall Joint
-
10506151650 Protection CapProtection Cap
-
11506152030 Swivel ArmSwivel Arm
-
12207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
13234081410 Flat Washer 8 mmFlat Washer 8 mm
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15506150400 Housing HalfHousing Half
-
16506150500 Housing BushingHousing Bushing
-
17503189157 WasherWasher
-
18207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20230081044 Hex. Screw M8 X 110Hex. Screw M8 X 110
-
21506152074 Steering Main TubeSteering Main Tube
-
22506150600 Stopper PlateStopper Plate
-
23207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
24860603700 Steering Extension KitSteering Extension Kit
-
25506151622 Steering SupportSteering Support
-
26506151196 ReinforcementReinforcement
-
27250000074 Hex. Screw With Nylon M8 X 40Hex. Screw With Nylon M8 X 40
-
28506152203 Handle BarHandle Bar
-
29506152211 Handle GripHandle Grip
-
30506152167 Steering PadSteering Pad
-
31219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
