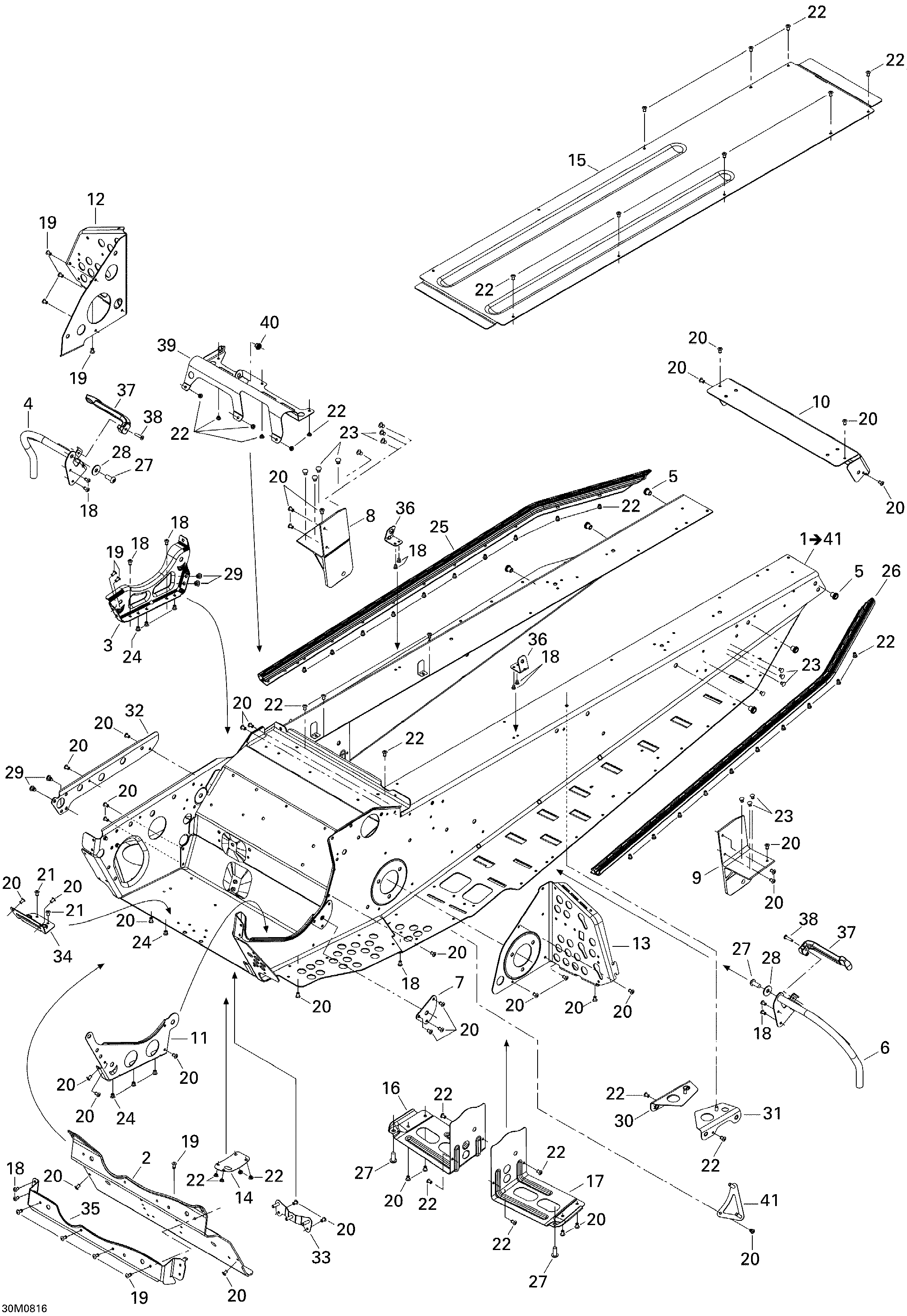

09- Frame для BRP Ski-Doo Freestyle PARK 550F - 2008
-
№АртикулНазвание
-
1415129310 Frame 121''. Includes 1 to 41Frame 121''. Includes 1 to 41
-
2518325042 Front PanFront Pan
-
3518323346 Engine Support, BlackEngine Support, Black
-
4518324162 RH Toe Hold SupportRH Toe Hold Support
-
5415107300 InsertInsert
-
6518324163 LH Toe Hold SupportLH Toe Hold Support
-
7518323507 Outer ReinforcementOuter Reinforcement
-
8518325340 RH Slide BracketRH Slide Bracket
-
9518325341 LH Slide BracketLH Slide Bracket
-
10518324279 Rear CapRear Cap
-
11518323995 Inner Reinforcement, BlackInner Reinforcement, Black
-
12518323805 RH Footrest ReinforcementRH Footrest Reinforcement
-
13518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
14518324169 PlatePlate
-
15518323996 Central PlateCentral Plate
-
16518325334 RH Footrest Reinforcement, BlackRH Footrest Reinforcement, Black
-
17518325335 LH Footrest Reinforcement, BlackLH Footrest Reinforcement, Black
-
18390909200 Avex RivetAvex Rivet
-
19390909100 Avex RivetAvex Rivet
-
20390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
21390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
24390910300 Henrob RivetHenrob Rivet
-
25518324957 RH RollerRH Roller
-
26518324958 LH RollerLH Roller
-
27205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
28234082410 Flat Washer 8 mmFlat Washer 8 mm
-
29293150096 RivetRivet
-
30518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
31518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
32518323328 RH Tunnel StiffenerRH Tunnel Stiffener
-
33518324599 HolderHolder
-
34518324207 Holder PlateHolder Plate
-
35518324220 Frontal ReinforcementFrontal Reinforcement
-
36518324688 Trunk BracketTrunk Bracket
-
37517302448 Panel LatchPanel Latch
-
38390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
39518323532 Intake Air Admission SupportIntake Air Admission Support
-
40293450232 InsertInsert
-
41518324312 Trunk Bracket, BlackTrunk Bracket, Black
