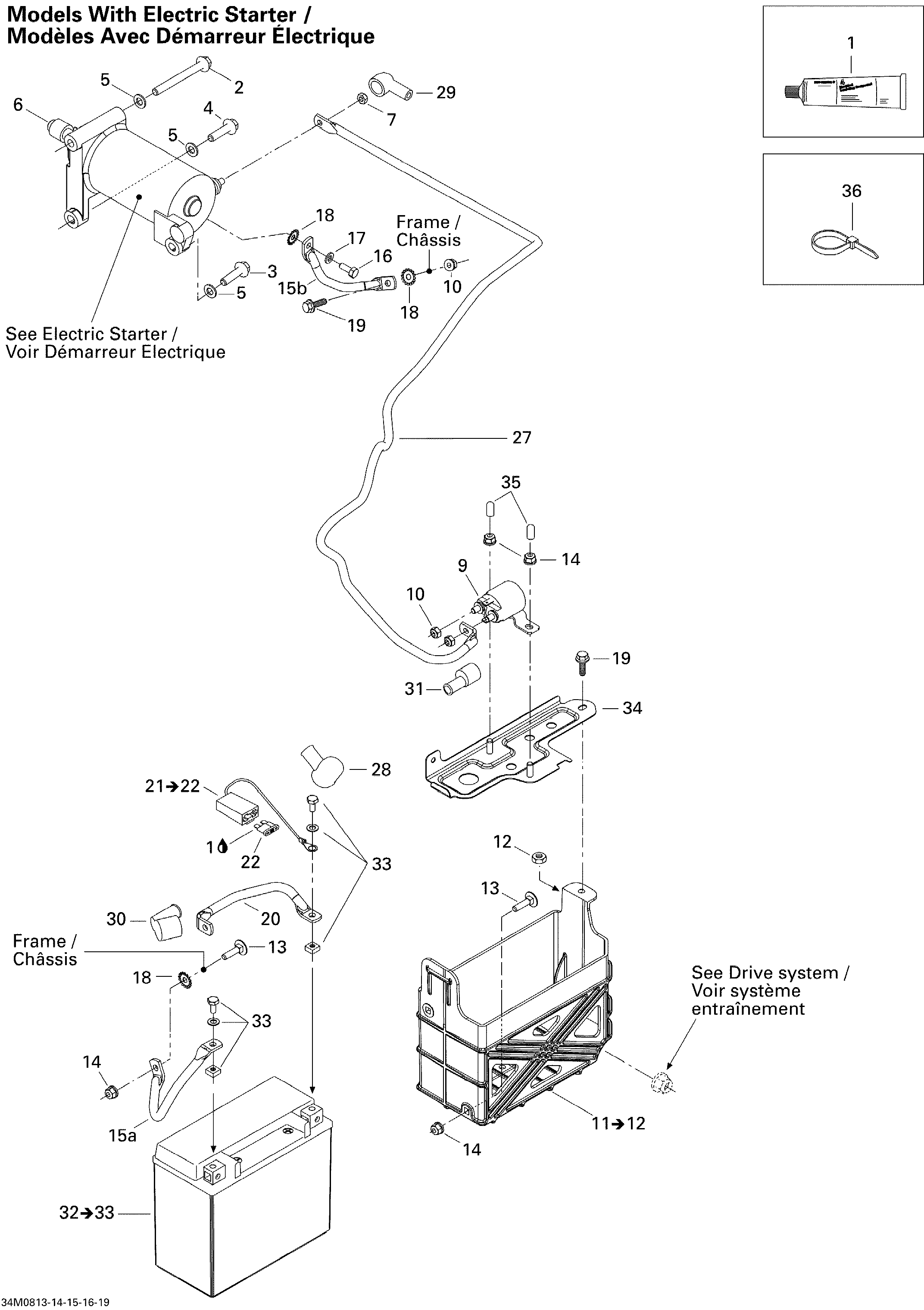

10- Battery And Starter для BRP Ski-Doo Freestyle PARK 550F - 2008
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2207588544 Hex. Flanged Screw M8 X 85, Scotch GripHex. Flanged Screw M8 X 85, Scotch Grip
-
3207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
4207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
5250200008 Flat Washer 8 mmFlat Washer 8 mm
-
6515176585 StarterStarter
-
7232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9515176011 Starter RelayStarter Relay
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
17234061410 Flat Washer 6 mmFlat Washer 6 mm
-
11515176423 Battery Support. Includes 11 to 12Battery Support. Includes 11 to 12
-
12232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
13207762544 Carriage Bolt M6 X 25Carriage Bolt M6 X 25
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15a515175749 Ground WireGround Wire
-
15b515176172 Ground WireGround Wire
-
16207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
18250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
19207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
20515175904 Battery WireBattery Wire
-
21515175489 Battery Fuse Wire. Includes 21 to 22Battery Fuse Wire. Includes 21 to 22
-
22410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
27515175905 Battery WireBattery Wire
-
28570151000 Protection CapProtection Cap
-
29278001771 Protector CapProtector Cap
-
30570064200 Protection CapProtection Cap
-
31515175919 Protector CapProtector Cap
-
32410301203 Battery, 18 Amperes. Incldues 32 to 33Battery, 18 Amperes. Incldues 32 to 33
-
33295500849 Battery Fastener KitBattery Fastener Kit
-
34515175735 Battery StripBattery Strip
-
35515176141 CapCap
-
36414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
36293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
36293750009 Tie-Rap 160 mmTie-Rap 160 mm
