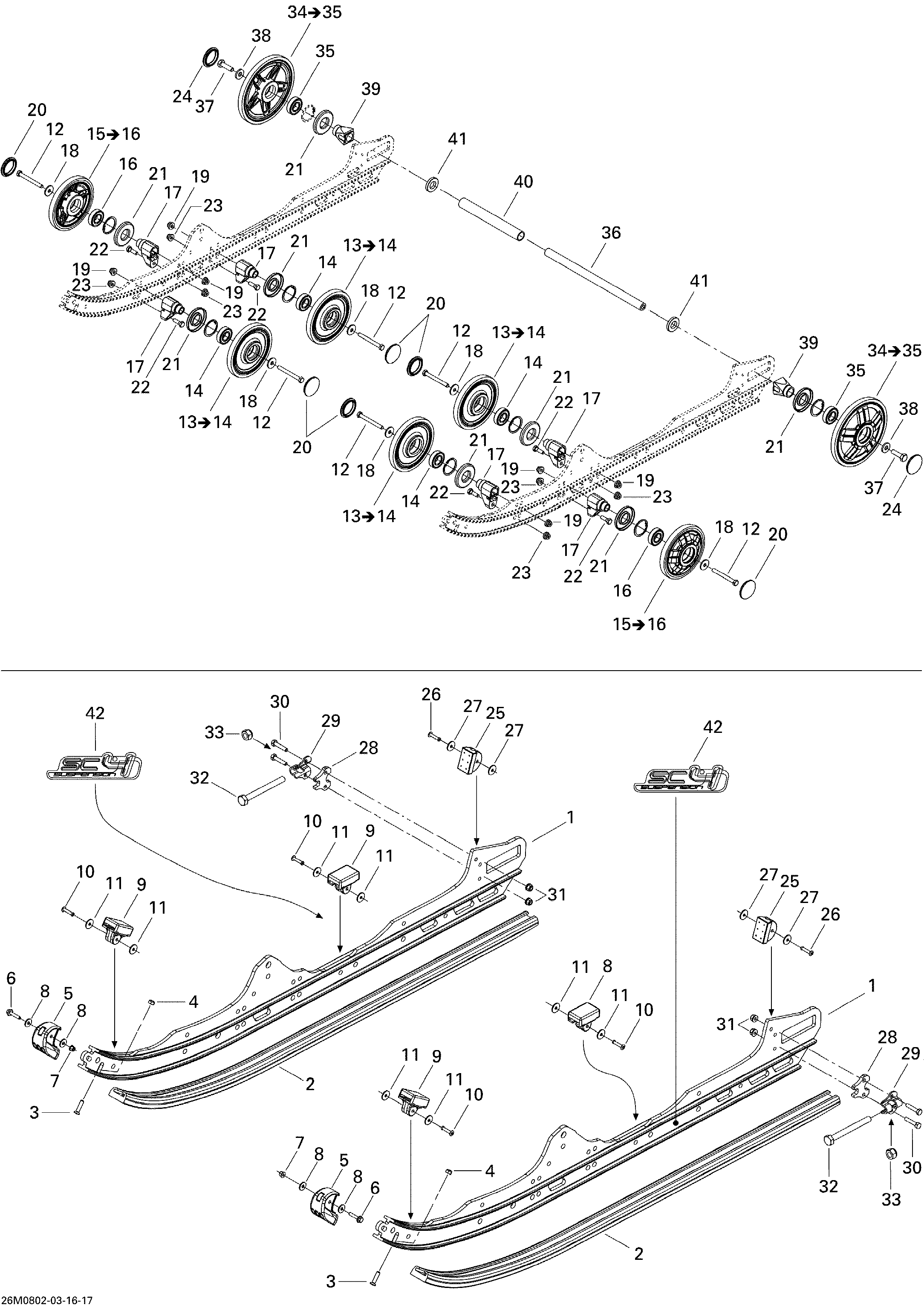

08- Rear Suspension для BRP Ski-Doo Freestyle PARK 550F - 2008
-
№АртикулНазвание
-
1503191224 Runner 121''Runner 121''
-
2503190573 Slider ShoeSlider Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503191137 Runner ProtectorRunner Protector
-
6207652544 Hex. Flange Screw M5 X 25Hex. Flange Screw M5 X 25
-
7233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
8391301600 WasherWasher
-
9503190576 Rubber StopperRubber Stopper
-
10293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
11503191273 WasherWasher
-
12207087544 Hex. Screw M8 X 75Hex. Screw M8 X 75
-
13503191316 Wheel 141 Ass'y. Includes 13 to 14Wheel 141 Ass'y. Includes 13 to 14
-
14503190396 Ball BearingBall Bearing
-
15503191314 Wheel 141 Ass'y, Viper Red. Includes 15 to 16Wheel 141 Ass'y, Viper Red. Includes 15 to 16
-
16503190396 Ball BearingBall Bearing
-
17503190580 SupportSupport
-
18211200041 WasherWasher
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20570063600 Wheel CapWheel Cap
-
21503190434 Labyrinth SealLabyrinth Seal
-
22207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
23233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24570063600 Wheel CapWheel Cap
-
25503189608 Rubber StopperRubber Stopper
-
26293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
27503191273 WasherWasher
-
28503190379 Tensioner SpacerTensioner Spacer
-
29503190380 TensionerTensioner
-
30207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
31233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
33233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
34503191103 Wheel 180 With Pattern Ass'y, Red. Includes 34 to 35Wheel 180 With Pattern Ass'y, Red. Includes 34 to 35
-
35503190396 Ball BearingBall Bearing
-
36503190429 Rear AxleRear Axle
-
37250000019 Hex. Screw With NylonHex. Screw With Nylon
-
38503190439 WasherWasher
-
39503190428 Rear Wheel SpacerRear Wheel Spacer
-
40503191108 SpacerSpacer
-
41503190432 WasherWasher
-
42516002615 SC4 DecalSC4 Decal
