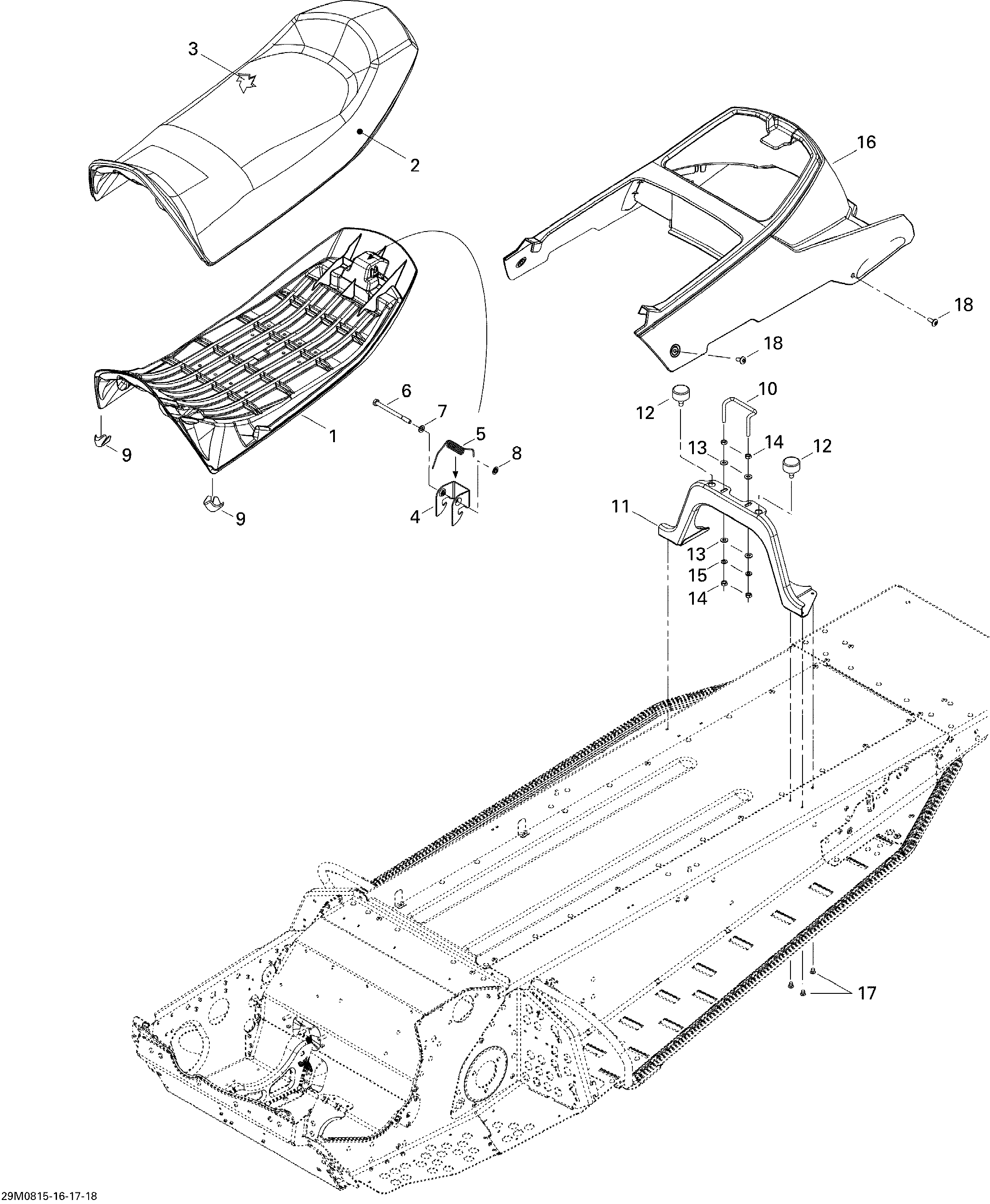

09- Seat для BRP Ski-Doo Freestyle PARK 550F - 2008
-
№АртикулНазвание
-
1510004487 Seat BaseSeat Base
-
2510004666 Seat CoverSeat Cover
-
3510004489 Seat FoamSeat Foam
-
4708000144 Latch, BlackLatch, Black
-
5708000369 SpringSpring
-
6207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
7234061410 Flat Washer 6 mmFlat Washer 6 mm
-
8732610072 Push NutPush Nut
-
9510004606 Seat Protector, BlackSeat Protector, Black
-
10510004608 Seat Fastener PinSeat Fastener Pin
-
11510004602 Seat SupportSeat Support
-
12708000006 Rubber StopperRubber Stopper
-
13224061121 Flat WasherFlat Washer
-
14232061414 Hex. Nut M6Hex. Nut M6
-
15234161601 Lock Washer Helical M6Lock Washer Helical M6
-
16510004490 TrunkTrunk
-
17390909200 Avex RivetAvex Rivet
-
18250000129 Torx Screw M6 X 16Torx Screw M6 X 16
