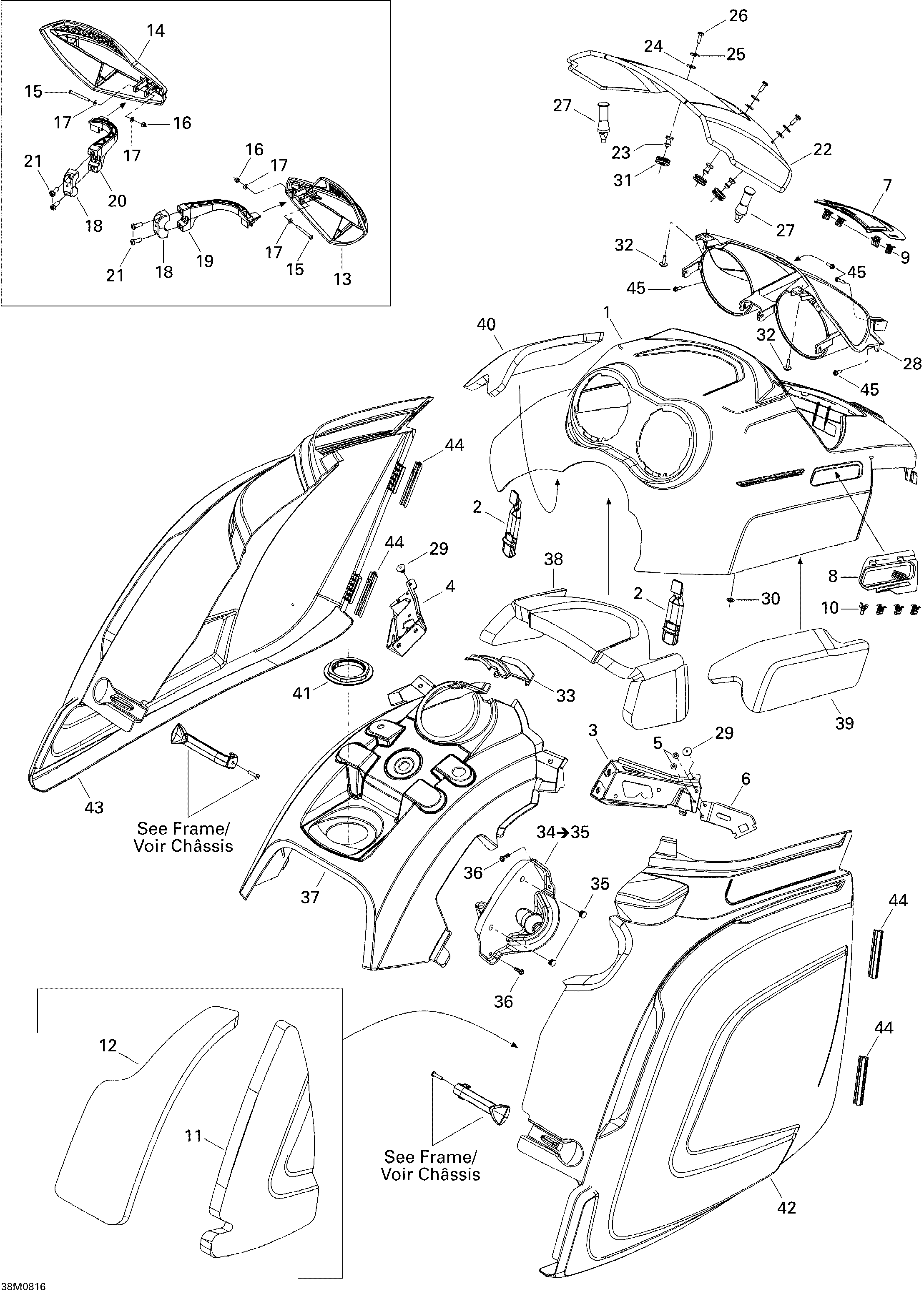

09- Hood для BRP Ski-Doo Freestyle PARK 550F - 2008
-
№АртикулНазвание
-
1517303865 HoodHood
-
2517303518 LatchLatch
-
3517303662 RH BracketRH Bracket
-
4517303663 LH BracketLH Bracket
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517303517 BracketBracket
-
7517303331 Center Hood GrillCenter Hood Grill
-
8517303586 RH Hood GrillRH Hood Grill
-
9517302785 ClipClip
-
10517302785 ClipClip
-
11517303456 RH Panel Foam, FrontRH Panel Foam, Front
-
12517303457 RH Panel Foam, RearRH Panel Foam, Rear
-
13517303878 RH DeflectorRH Deflector
-
14517303879 LH DeflectorLH Deflector
-
15205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
16232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
17234041480 Flat Washer 4 mmFlat Washer 4 mm
-
18517303264 U-ClampU-Clamp
-
19517303590 RH Deflector SupportRH Deflector Support
-
20517303591 LH Deflector SupportLH Deflector Support
-
21250000172 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
22517303857 Windshield, Ultra LowWindshield, Ultra Low
-
23517303439 KnobKnob
-
24250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
25250200025 Washer M5Washer M5
-
26250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
27517303197 Windshield SupportWindshield Support
-
28517303692 MouldingMoulding
-
29293150103 Pop RivetPop Rivet
-
30732610072 Push NutPush Nut
-
31517302841 GrommetGrommet
-
32250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
33517303458 Console CapConsole Cap
-
34517303482 RH Console. Includes 34 to 35RH Console. Includes 34 to 35
-
35275500241 Cap, BlackCap, Black
-
36241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
37517303349 Center ConsoleCenter Console
-
38517303664 Hood FoamHood Foam
-
39517303486 RH Hood FoamRH Hood Foam
-
40517303487 LH Hood FoamLH Hood Foam
-
41517302575 Console NutConsole Nut
-
42517303864 RH PanelRH Panel
-
43517303863 LH PanelLH Panel
-
44517302823 Hinge LockHinge Lock
-
45250000068 Hex. Tapping Screw #8 X 5/8''Hex. Tapping Screw #8 X 5/8''
