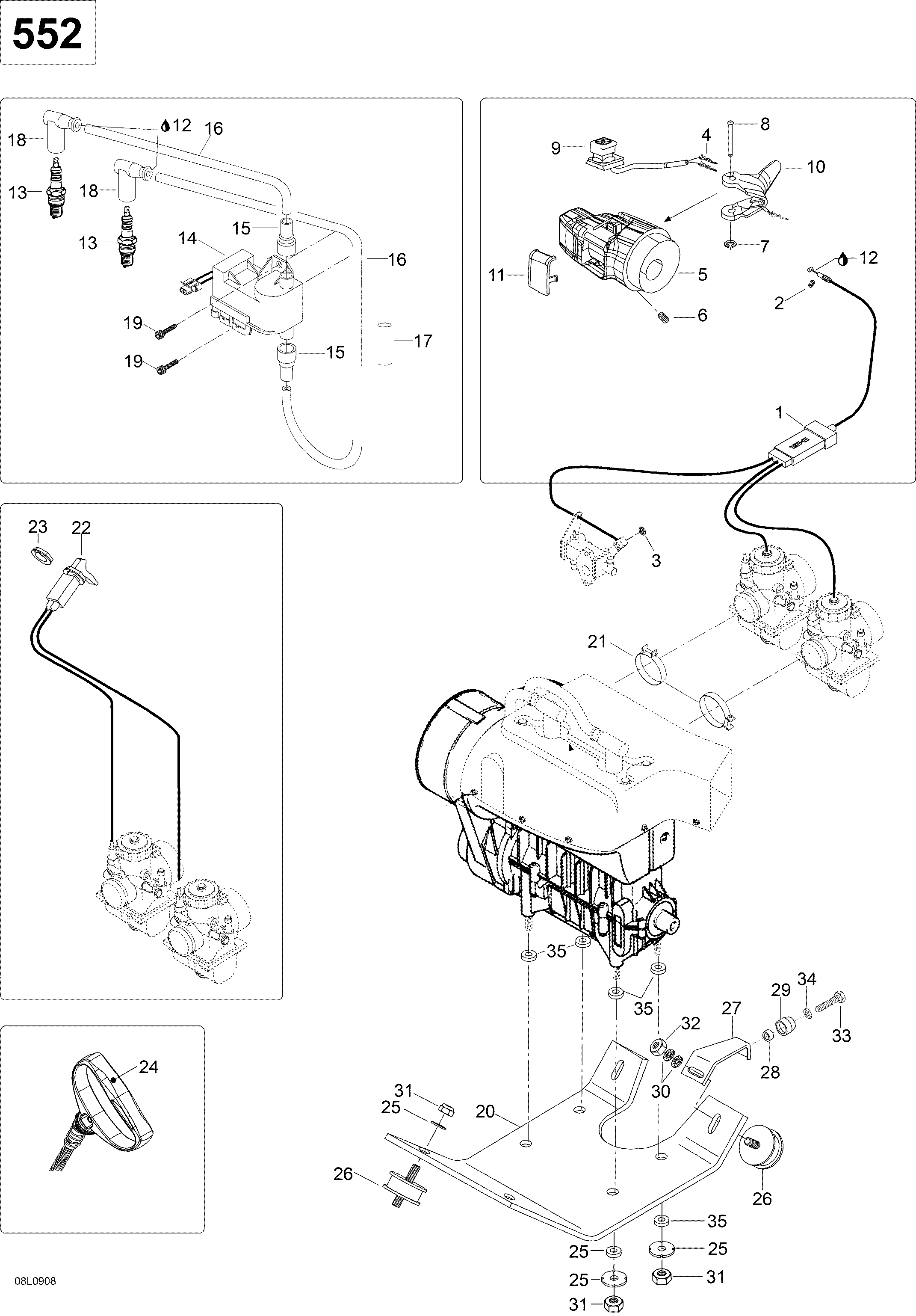

01- Engine And Engine Support для BRP Ski-Doo Skandic SUV - 2009
-
№АртикулНазвание
-
1605249117 Throttle CableThrottle Cable
-
2M31038 CirclipCirclip
-
3M31035 CirclipCirclip
-
4M42603 Male TerminalMale Terminal
-
5512059489 Throttle HousingThrottle Housing
-
6414440800 Set Screw M8 X 10Set Screw M8 X 10
-
7414439000 CirclipCirclip
-
8414438700 Lever PinLever Pin
-
9548872536 Kill SwitchKill Switch
-
10512060214 Handle AssyHandle Assy
-
11572100901 Switch CoverSwitch Cover
-
12293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
13414961100 Spark Plug, NGK BR9ESSpark Plug, NGK BR9ES
-
14512059626 Calibration Module. Includes 14 to 17Calibration Module. Includes 14 to 17
-
15515174900 Protection CapProtection Cap
-
16278002198 Spark Plug WireSpark Plug Wire
-
17409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
18278000237 Spark Plug CapSpark Plug Cap
-
19M40322 ScrewScrew
-
20605249349 Engine SupportEngine Support
-
21414532700 CollarCollar
-
22M535482 Choke CableChoke Cable
-
23512059364 Nut-plasticNut-plastic
-
24572084400 Starter GripStarter Grip
-
25512056700 Lock WasherLock Washer
-
26570128700 Rubber MountRubber Mount
-
27605352447 SupportSupport
-
28M2846014 Rubber WasherRubber Washer
-
29605449240 SleeveSleeve
-
30M20068 Lock WasherLock Washer
-
31233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
32232006414 Hex. Nut M10Hex. Nut M10
-
33M40121 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
34M33003 NutNut
-
35M5446347 SleeveSleeve
