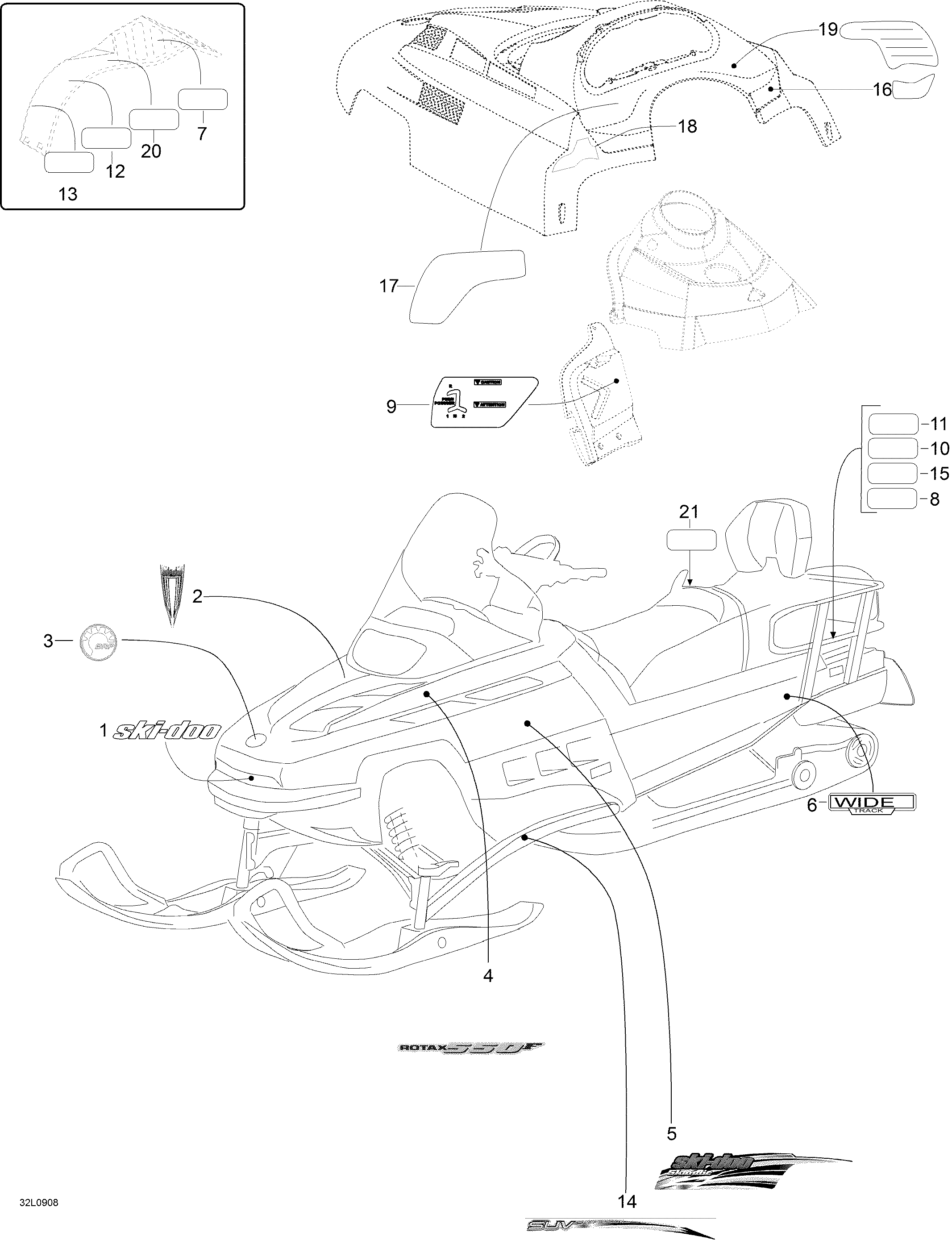

09- Decals для BRP Ski-Doo Skandic SUV - 2009
-
№АртикулНазвание
-
1516000338 Decal - «Ski-Doo»Decal - «Ski-Doo»
-
2516003486 Hood Decal, MiddleHood Decal, Middle
-
3219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
4516003551 Hood Decal, Rotax 550Hood Decal, Rotax 550
-
5516003481 Side Hood Decal, Ski-Doo, RHSide Hood Decal, Ski-Doo, RH
-
5516003480 Side Hood Decal, Ski-Doo, LHSide Hood Decal, Ski-Doo, LH
-
6516003466 Frame Decal, WidetrackFrame Decal, Widetrack
-
8516002958 Warning DecalWarning Decal
-
9516001201 Reverse DecalReverse Decal
-
10516003038 Warning Decal-Security-FrenchWarning Decal-Security-French
-
11516003037 Warning Decal-Security-EnglishWarning Decal-Security-English
-
12516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
13516002715 Caution Label, Air IntakeCaution Label, Air Intake
-
14516003488 Arm Decal, SUV, RHArm Decal, SUV, RH
-
14516003487 Arm Decal, SUV, LHArm Decal, SUV, LH
-
15516003039 Maximum Cargo Load LabelMaximum Cargo Load Label
-
16516003470 Instruction DecalInstruction Decal
-
17516003471 Instruction DecalInstruction Decal
-
18516003472 Instruction DecalInstruction Decal
-
19516003473 Instruction DecalInstruction Decal
-
20516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
21516003474 Security LabelSecurity Label
