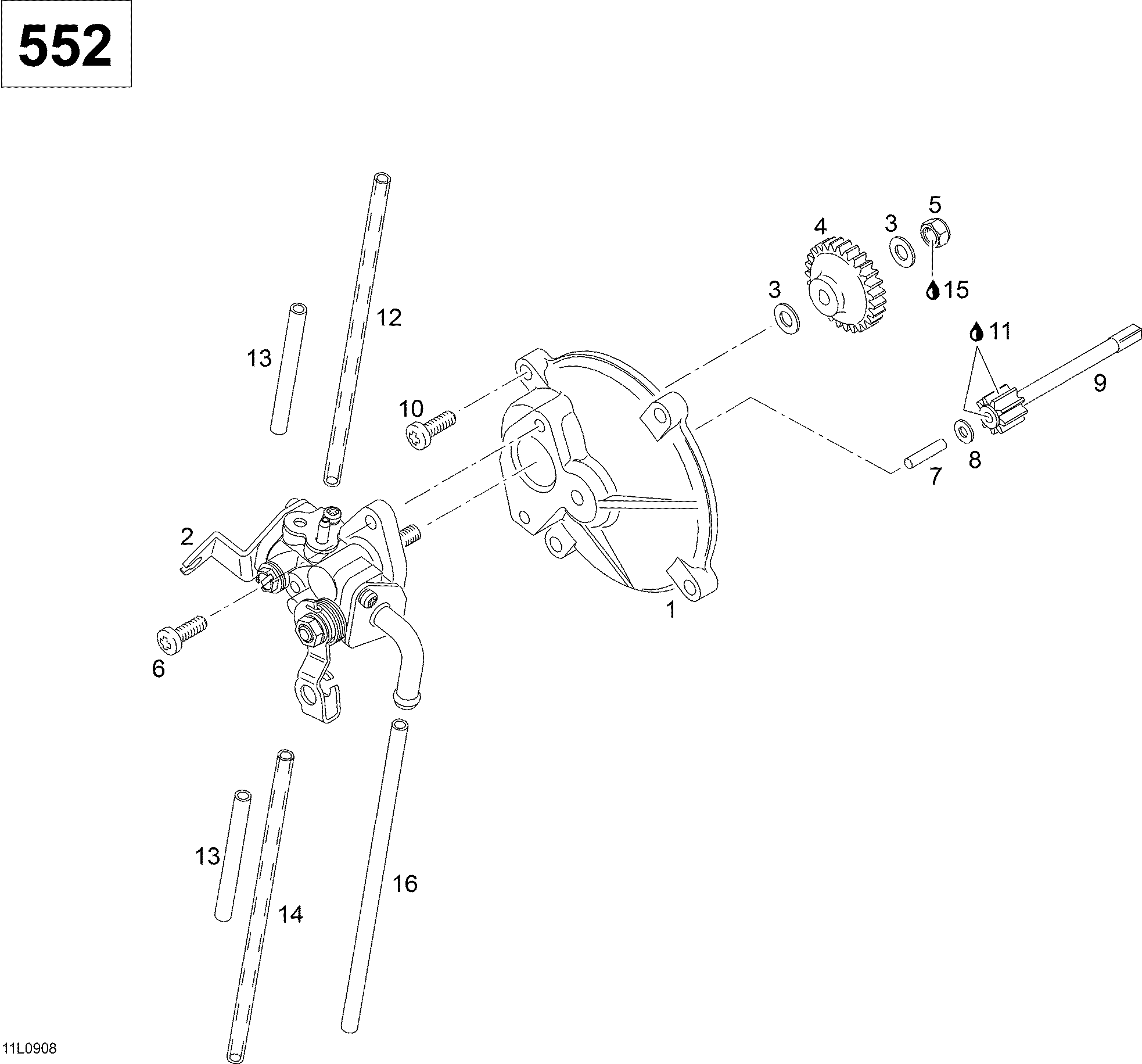

02- Oil Pump для BRP Ski-Doo Skandic SUV - 2009
-
№АртикулНазвание
-
1420910160 Pump Mounting FlangePump Mounting Flange
-
2420889070 Oil Pump AssyOil Pump Assy
-
3420927945 Flat WasherFlat Washer
-
4420935930 Oil Pump Gear, 27 TeethOil Pump Gear, 27 Teeth
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6420841971 ScrewScrew
-
7420832260 Needle PinNeedle Pin
-
8420244073 Washer 4.3Washer 4.3
-
9420935970 Gear, 9 TeethGear, 9 Teeth
-
10420841976 ScrewScrew
-
11413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
-
12414413800 Oil LineOil Line
-
13276000048 Hose 6 mmHose 6 mm
-
14420660495 Oil Line 400mmOil Line 400mm
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16420460170 Isolation HoseIsolation Hose
