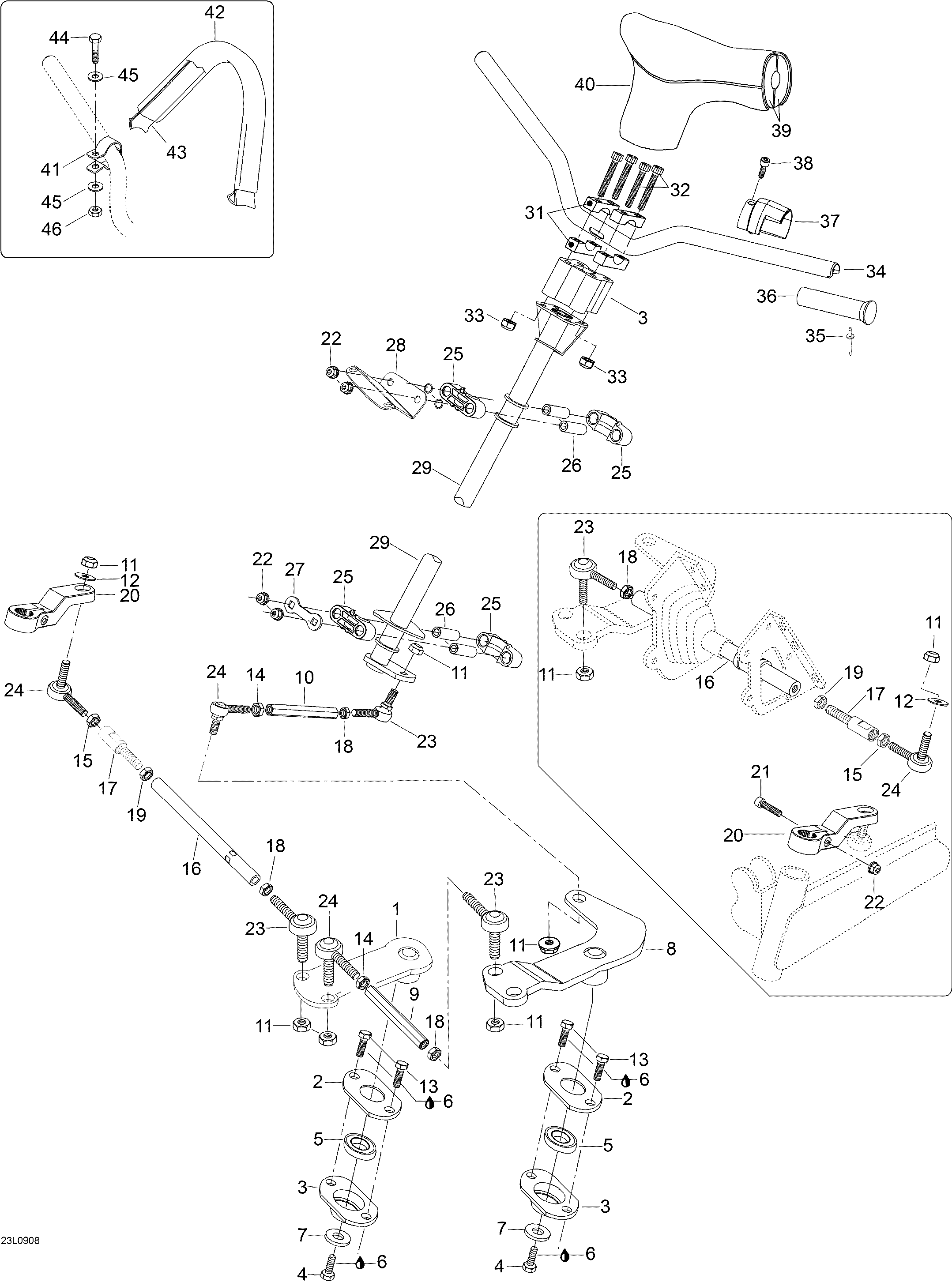

07- Steering для BRP Ski-Doo Skandic SUV - 2009
-
№АртикулНазвание
-
1605351764 LH LeverLH Lever
-
2M5345380 CoverCover
-
3605350644 Bearing SupportBearing Support
-
4M40337 Hex. ScrewHex. Screw
-
5503190795 Ball BearingBall Bearing
-
6293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
7M5446279 WasherWasher
-
8605348403 LH Welded LeverLH Welded Lever
-
9605448308 Short Tie RodShort Tie Rod
-
10605450220 Tie-rodTie-rod
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12234001410 Flat Washer 10 mmFlat Washer 10 mm
-
13M40351 ScrewScrew
-
14M33019 RH NutRH Nut
-
15732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
16605450794 Tie RodTie Rod
-
17605450793 AdjusterAdjuster
-
18M33017 LH NutLH Nut
-
19250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
20M5348261 Steering ArmSteering Arm
-
21M40828 Allen Screw M8 X 45Allen Screw M8 X 45
-
22M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
23506151495 LH Ball JointLH Ball Joint
-
24506151492 RH Ball JointRH Ball Joint
-
25506150400 Housing HalfHousing Half
-
26506150500 Housing BushingHousing Bushing
-
27506150600 Stopper PlateStopper Plate
-
28605352322 Console HolderConsole Holder
-
29605251694 Main TubeMain Tube
-
30605349584 ExtensionExtension
-
31M548448 Steering ClampSteering Clamp
-
32M40124 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
33232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
34605251368 Handle BarHandle Bar
-
35M36005 RivetRivet
-
36M5340464 Grip HandleGrip Handle
-
37506151566 AdaptatorAdaptator
-
38M40390 Allen Screw M8 X 20Allen Screw M8 X 20
-
39605252110 Foam, FrontFoam, Front
-
39605252111 Foam, RearFoam, Rear
-
40605254571 Steering CoverSteering Cover
-
41506151792 Support Plate, BlackSupport Plate, Black
-
42506152115 Strap Ass'yStrap Ass'y
-
43506152115 Strap Ass'yStrap Ass'y
-
44207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
45234061410 Flat Washer 6 mmFlat Washer 6 mm
-
46232561414 Elastic Stop Nut M6Elastic Stop Nut M6
