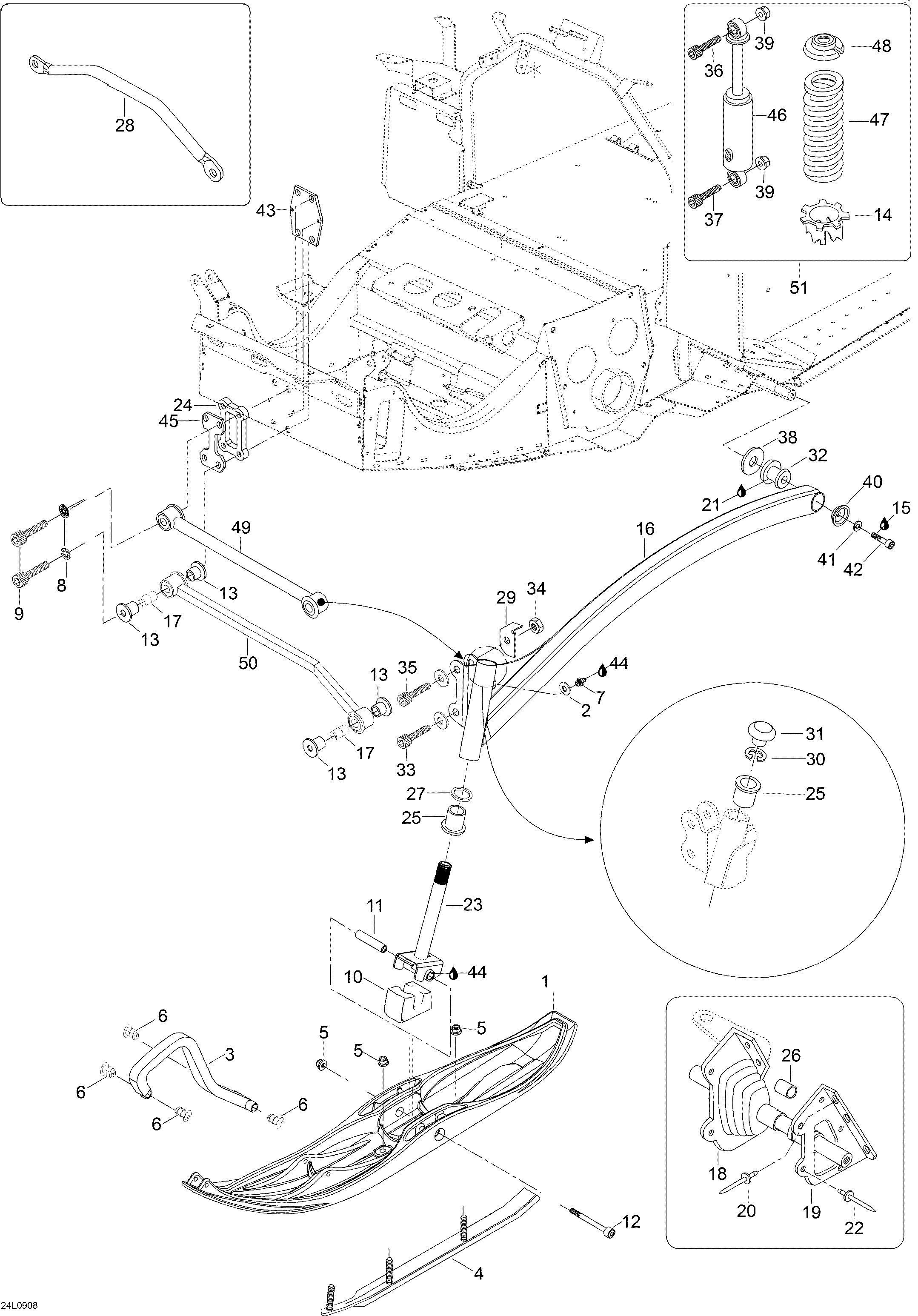

07- Front Suspension And Ski для BRP Ski-Doo Skandic SUV - 2009
-
№АртикулНазвание
-
1605153775 Plastic Ski Ass'yPlastic Ski Ass'y
-
2M20007 WasherWasher
-
3505070963 Handle, BlackHandle, Black
-
4605352643 Carbide KitCarbide Kit
-
5M33074 NutNut
-
6505071812 RetainerRetainer
-
7M34011 Grease FittingGrease Fitting
-
8M20074 Lock WasherLock Washer
-
9M40370 Screw Allen M12 X 75Screw Allen M12 X 75
-
10605348458 Ski StopperSki Stopper
-
11506133300 SpacerSpacer
-
12M40225 Hex. Screw M10 X 140Hex. Screw M10 X 140
-
13506149100 CushionCushion
-
14M230078 CamCam
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16605251768 Swing Arm Weld RHSwing Arm Weld RH
-
16605251767 Swing Arm Weld LH BSwing Arm Weld LH B
-
17605450024 BushingBushing
-
18570024800 RH Tie Rod CapRH Tie Rod Cap
-
18570024900 LH Tie Rod CapLH Tie Rod Cap
-
19605355206 Plate Cover RHPlate Cover RH
-
19605355205 Plate Cover LHPlate Cover LH
-
20M36036 Rivet-BlackRivet-Black
-
21293550030 Grease, Super LubeGrease, Super Lube
-
22M36009 RivetRivet
-
23505072001 Ski LegSki Leg
-
24605350191 Spacer 17.5Spacer 17.5
-
25505070003 CushionCushion
-
26572036500 BushingBushing
-
27505070004 WasherWasher
-
28605352875 Support ShaftSupport Shaft
-
29605448861 RH Plate LockingRH Plate Locking
-
29605448862 LH Plate LockingLH Plate Locking
-
30371910400 CirclipCirclip
-
31572091300 CapCap
-
32570062200 DamperDamper
-
33M40371 Screw Allen M12 X 55Screw Allen M12 X 55
-
34232521414 Elastic Stop Nut M12Elastic Stop Nut M12
-
35M40306 Allen Screw M12 X 60Allen Screw M12 X 60
-
36M40837 Screw M10 X 55Screw M10 X 55
-
37M40136 Socket Head Screw. M10 X 50Socket Head Screw. M10 X 50
-
38503146700 WasherWasher
-
39233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
40506115800 CupCup
-
41234181401 Lock Washer 8 mmLock Washer 8 mm
-
42M40810 Screw Allen M8 X 20Screw Allen M8 X 20
-
43605353972 PlatePlate
-
45605450900 Middle PlateMiddle Plate
-
46M23183 Front ShockFront Shock
-
47605625012 SpringSpring
-
48M230076 Spring StopperSpring Stopper
-
49605350022 Upper Arm AssyUpper Arm Assy
-
50605252224 Lower ArmLower Arm
