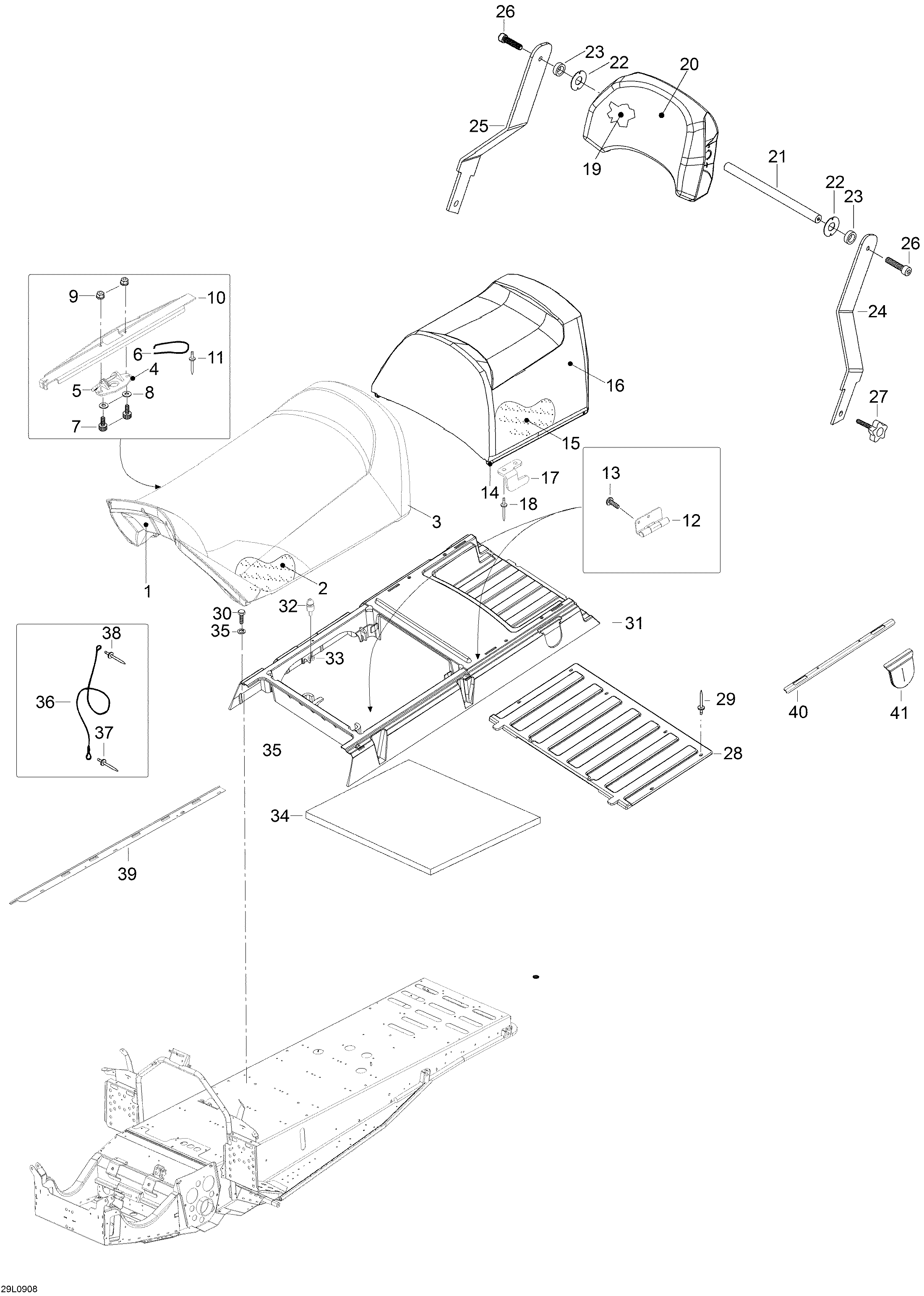

09- Seat для BRP Ski-Doo Skandic SUV - 2009
-
№АртикулНазвание
-
1605251388 Seat Base, FrontSeat Base, Front
-
2605255689 Seat FoamSeat Foam
-
3605255216 Seat Front Cover, SUVSeat Front Cover, SUV
-
4269700076 Latch CoverLatch Cover
-
5269700077 Latch LeverLatch Lever
-
6269700017 Latch SpringLatch Spring
-
7M40276 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
8234061410 Flat Washer 6 mmFlat Washer 6 mm
-
9232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
10605352483 Support PlateSupport Plate
-
11M36088 RivetRivet
-
12605351798 HingeHinge
-
13M40890 Screw 4,2 X 16Screw 4,2 X 16
-
14605251390 Seat Base, RearSeat Base, Rear
-
15605255691 Rear Seat FoamRear Seat Foam
-
16605255218 Seat Cover, SUVSeat Cover, SUV
-
17605351808 LH HookLH Hook
-
17605352007 RH HookRH Hook
-
18M36087 RivetRivet
-
19510004365 Backrest FoamBackrest Foam
-
20605355498 Backrest CoverBackrest Cover
-
21605355357 Backrest AxleBackrest Axle
-
22605355358 WasherWasher
-
23510004378 Rubber ShimRubber Shim
-
24605355499 LH ArmLH Arm
-
25605355500 RH ArmRH Arm
-
26605640010 Screw M10x20Screw M10x20
-
27510003533 Handle M8 X 35Handle M8 X 35
-
28605255587 Frame CoverFrame Cover
-
29M36036 Rivet-BlackRivet-Black
-
30207161644 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
31605155585 Seat BaseSeat Base
-
32605452035 Lock PinLock Pin
-
33232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
34605355635 FoamFoam
-
35234161471 Lock Washer M6, BlackLock Washer M6, Black
-
36M546777 Retainer CableRetainer Cable
-
37M36037 RivetRivet
-
38M36009 RivetRivet
-
39605255762 Seat BracketSeat Bracket
-
40605355816 Rear Seat SupportRear Seat Support
-
41605355589 CapCap
