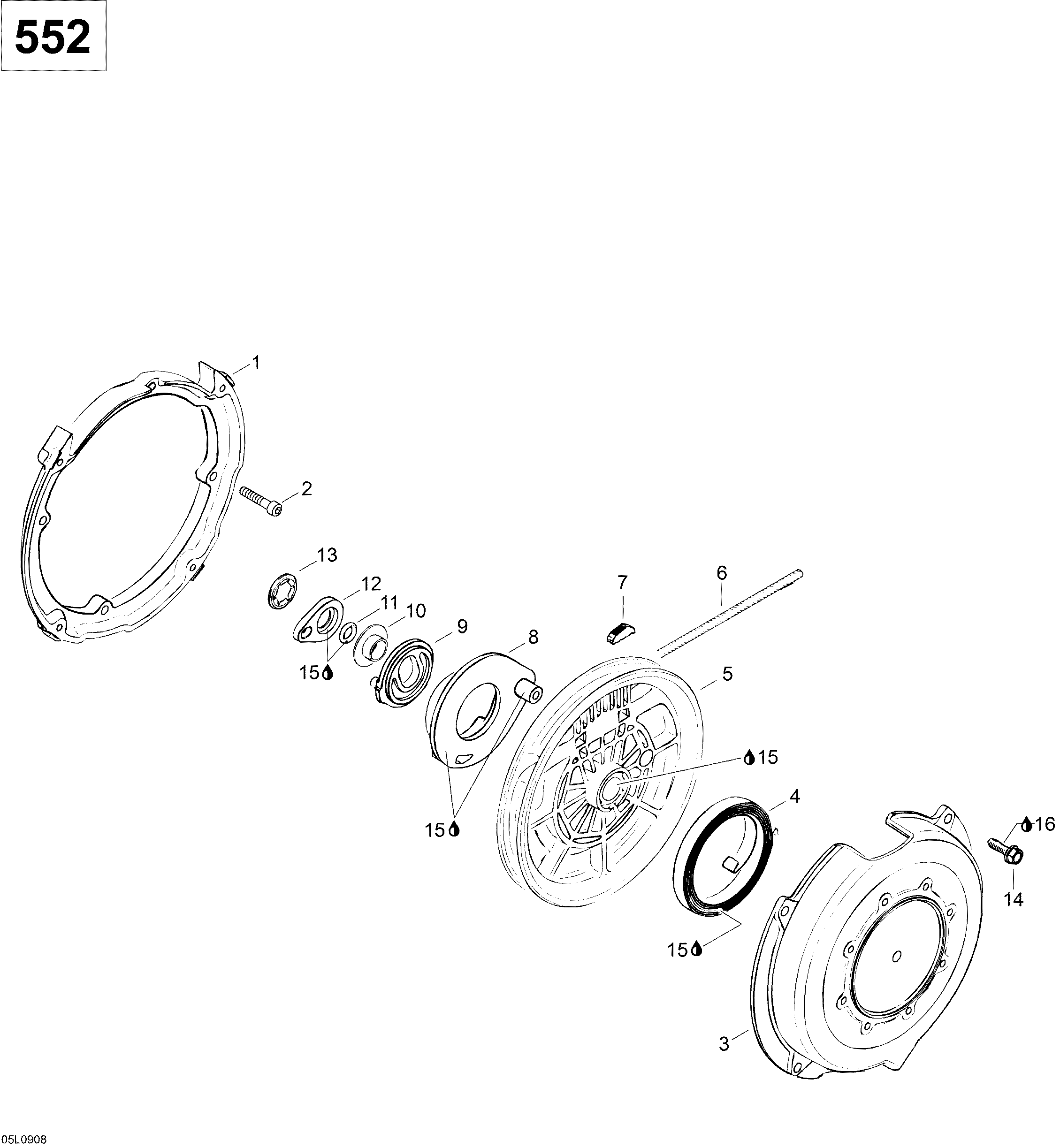

04- Rewind Starter для BRP Ski-Doo Skandic SUV - 2009
-
№АртикулНазвание
-
1420810952 Flange ConnectorFlange Connector
-
2420440202 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
—420888219 Rewind Starter Ass'y. Includes 3 to 12Rewind Starter Ass'y. Includes 3 to 12
-
3420811346 Starter HousingStarter Housing
-
4420939115 Rewind SpringRewind Spring
-
5420852480 Rope SheaveRope Sheave
-
6412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
7420852070 Key ClampKey Clamp
-
8420852296 PawlPawl
-
9420852305 Pawl LockPawl Lock
-
10420847926 Stage SleeveStage Sleeve
-
11420250400 O-RingO-Ring
-
12420852520 Lock RingLock Ring
-
13420845560 Locking ElementLocking Element
-
14420941250 Hex. Tapping Screw M6 X 20Hex. Tapping Screw M6 X 20
-
15420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
