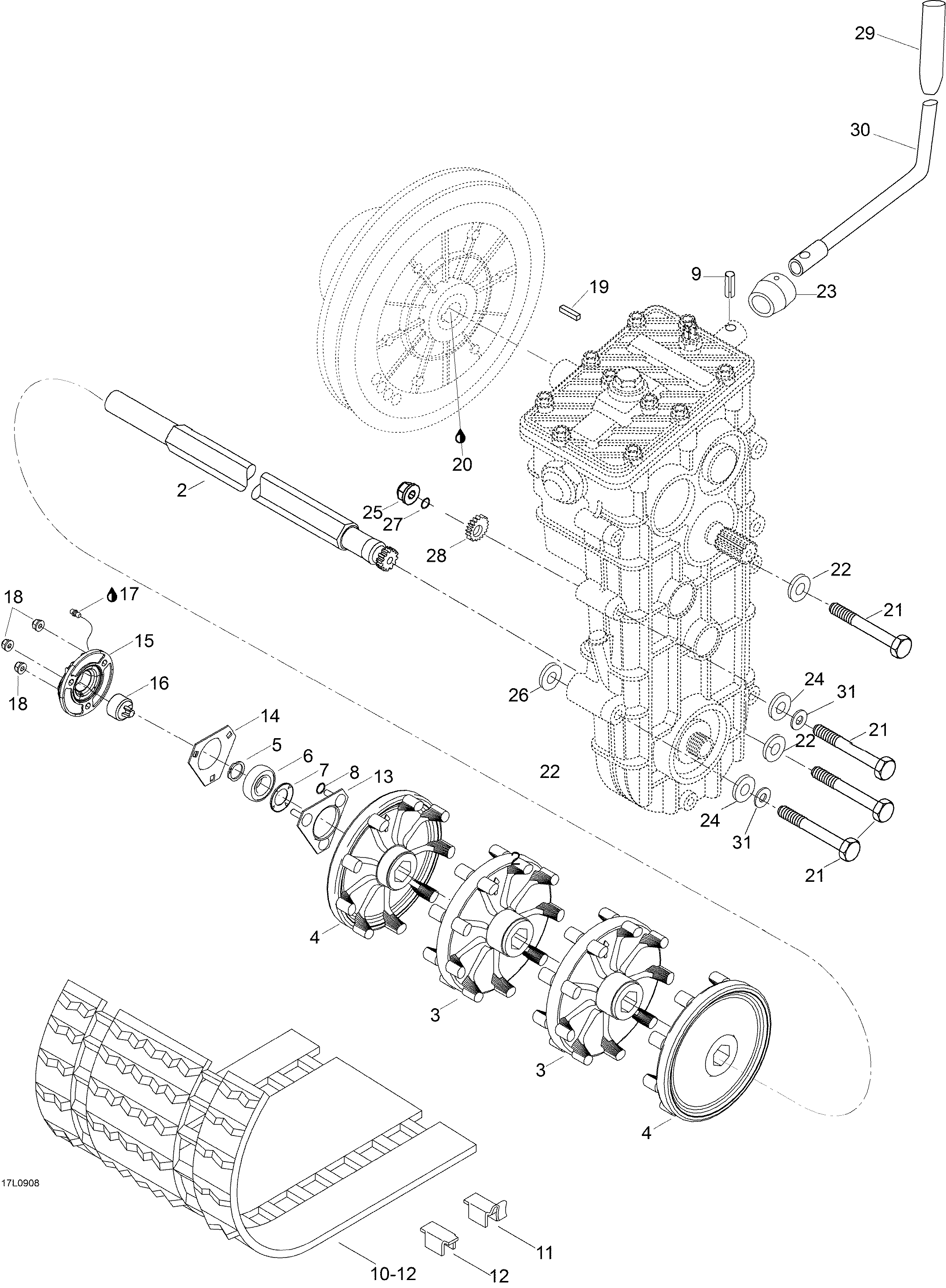

05- Drive System для BRP Ski-Doo Skandic SUV - 2009
-
№АртикулНазвание
-
2605253104 Drive AxleDrive Axle
-
3414931800 SprocketSprocket
-
4415067400 Half SprocketHalf Sprocket
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
8414484400 O-RingO-Ring
-
9M41008 Pin SpringPin Spring
-
10M13070 Track Ass'y. Includes 10 to 12Track Ass'y. Includes 10 to 12
-
11M5318323 Guide CleatGuide Cleat
-
12M5318322 CleatCleat
-
13504151860 Bearing HousingBearing Housing
-
14501025000 FlangeFlange
-
15504152173 Flange, SpeedoFlange, Speedo
-
16504152040 Magnetic AdaptorMagnetic Adaptor
-
18M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
19M418763 KeyKey
-
20293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
21M40012 Screw M8 X 80Screw M8 X 80
-
22234081410 Flat Washer 8 mmFlat Washer 8 mm
-
23M5446699 SleeveSleeve
-
24M20010 WasherWasher
-
25233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26M20077 WasherWasher
-
27506151140 O-RingO-Ring
-
28605454017 ToolsTools
-
29M28247 Arm Shifter BallArm Shifter Ball
-
30605350153 Shift HandleShift Handle
-
31234181401 Lock Washer 8 mmLock Washer 8 mm
