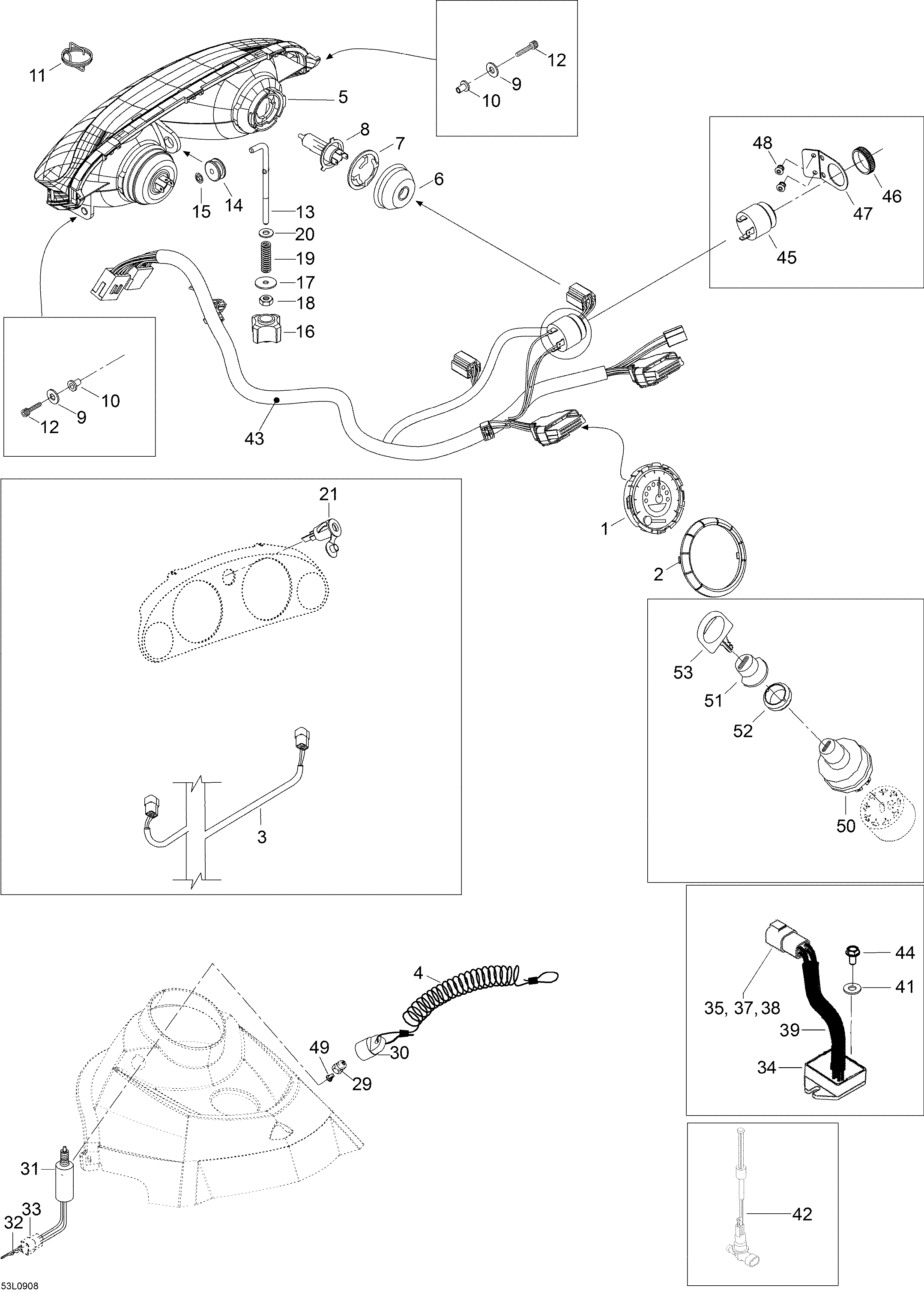

10- Electrical Accessories для BRP Ski-Doo Skandic SUV - 2009
-
№АртикулНазвание
-
1515176476 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3605353266 Steering harnessSteering harness
-
4515176463 Cap Ass'yCap Ass'y
-
5515176311 Halogen Headlamp Ass'yHalogen Headlamp Ass'y
-
8515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
7515175910 Bulb HolderBulb Holder
-
9M20008 Washer 5 mmWasher 5 mm
-
10250100018 Nut M5Nut M5
-
11M5447238 SpringSpring
-
12M40235 Screw M5X35. Includes 12 to 15Screw M5X35. Includes 12 to 15
-
13605450023 Adjuster RodAdjuster Rod
-
14415100800 GrommetGrommet
-
15732610072 Push NutPush Nut
-
16515175548 HandleHandle
-
17M20038 WasherWasher
-
18232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
19415100600 SpringSpring
-
20234061410 Flat Washer 6 mmFlat Washer 6 mm
-
21710001248 Outlet DCOutlet DC
-
29515145900 Switch NutSwitch Nut
-
30605454413 CoverCover
-
31515175571 Switch Brake. Includes 31 to 33Switch Brake. Includes 31 to 33
-
33570151100 Plunger CapPlunger Cap
-
34515176189 Voltage Regulator. Includes 34 to 39Voltage Regulator. Includes 34 to 39
-
35278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
37515175568 Male TerminalMale Terminal
-
38278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
39710000497 TubingTubing
-
41M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
42605452095 Oil SensorOil Sensor
-
43605355301 Harness Ass'y (Head Lamp)Harness Ass'y (Head Lamp)
-
44M40322 ScrewScrew
-
45414792102 Back-Up AlarmBack-Up Alarm
-
46414805101 Plastic NutPlastic Nut
-
47M5447941 HolderHolder
-
48M36005 RivetRivet
-
49570151100 Plunger CapPlunger Cap
-
50515176548 Ignition SwitchIgnition Switch
-
51570013700 Switch BootSwitch Boot
-
52410112100 Face NutFace Nut
-
53414991700 Blank KeyBlank Key
-
54605354843 Main Harness. Not ShownMain Harness. Not Shown
