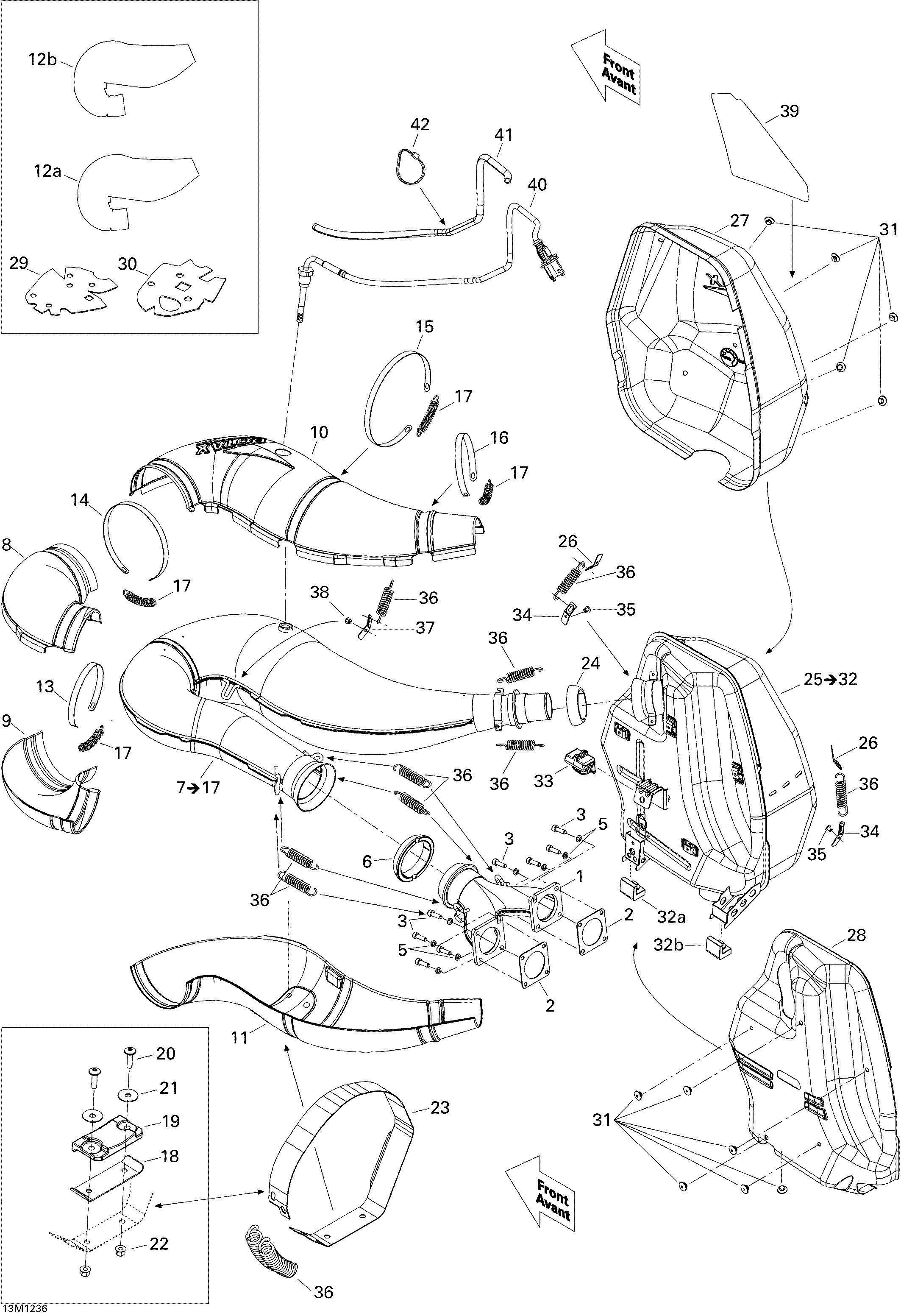

01- Exhaust System для BRP Ski-Doo MX Z X 600RS - 2012
-
№АртикулНазвание
-
1420673422 Exhaust ManifoldExhaust Manifold
-
2420850552 GasketGasket
-
3514054626 Socket Screw M6 X 22, Scotch GripSocket Screw M6 X 22, Scotch Grip
-
5514053953 WasherWasher
-
6514053487 Exhaust GasketExhaust Gasket
-
7514054868 Tune Pipe Ass'y. Includes 7 to 17Tune Pipe Ass'y. Includes 7 to 17
-
8514054485 Front Upper EnveloppeFront Upper Enveloppe
-
9514054486 Front Lower EnveloppeFront Lower Enveloppe
-
10514054591 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
11514054279 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
12a514054487 Insulating WoolInsulating Wool
-
12b514054553 Insulating WoolInsulating Wool
-
13514054408 Retaining StrapRetaining Strap
-
14514054409 Retaining StrapRetaining Strap
-
15514054410 Retaining StrapRetaining Strap
-
16514053499 Retaining StrapRetaining Strap
-
17514053643 SpringSpring
-
18514054638 Reinforcement PlateReinforcement Plate
-
19514054275 BumperBumper
-
20250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
21224060201 Flat WasherFlat Washer
-
22233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
23514054637 Retaining StrapRetaining Strap
-
24514053812 Exhaust GasketExhaust Gasket
-
25514054515 Muffler Ass'y. Includes 25 to 32Muffler Ass'y. Includes 25 to 32
-
26514054155 Spring BracketSpring Bracket
-
27514054433 RH DeflectorRH Deflector
-
28514054202 LH DeflectorLH Deflector
-
29514054711 RH Insulating WoolRH Insulating Wool
-
30514054299 LH Insulating WoolLH Insulating Wool
-
31390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
32a514054274 Lower StopperLower Stopper
-
32b514054496 Lower StopperLower Stopper
-
33514054606 Upper StopperUpper Stopper
-
34514054391 Spring BracketSpring Bracket
-
35390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
36415107100 SpringSpring
-
37514054087 Spring BracketSpring Bracket
-
38293150147 Hemlock RivetHemlock Rivet
-
39514054488 Reflective SheetReflective Sheet
-
40514054641 Temperature SensorTemperature Sensor
-
41515175442 Tubing 6 mmTubing 6 mm
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
