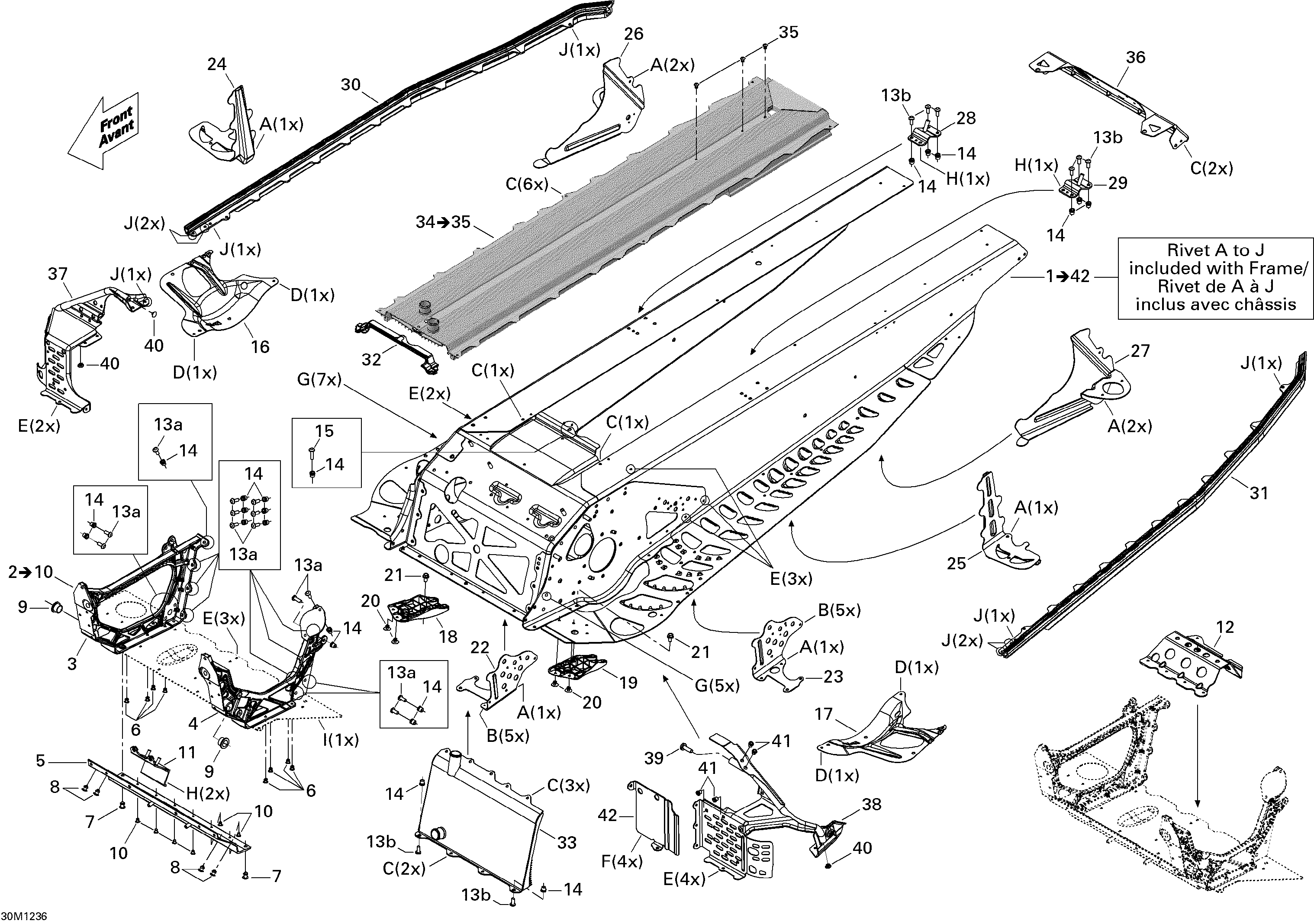

09- Frame для BRP Ski-Doo MX Z X 600RS - 2012
-
№АртикулНазвание
-
1415129645 Frame Ass'y. Includes 1 to 42Frame Ass'y. Includes 1 to 42
-
2518326843 E-Module Ass'y. Includes 2 to 10E-Module Ass'y. Includes 2 to 10
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6293150144 Stavex RivetStavex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505072690 Leg CushionLeg Cushion
-
11518325943 MAG Engine SupportMAG Engine Support
-
12518325796 Link CrossLink Cross
-
13a207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13b207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
16518326468 Foot Reinforcement RHFoot Reinforcement RH
-
17518326469 Foot Reinforcement LHFoot Reinforcement LH
-
18518325782 RH DeflectorRH Deflector
-
19518325783 LH DeflectorLH Deflector
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
22518326616 RH Front RetainerRH Front Retainer
-
23518326617 LH Front RetainerLH Front Retainer
-
24518325747 RH ReinforcementRH Reinforcement
-
25518325748 LH ReinforcementLH Reinforcement
-
26518326766 RH Rear SupportRH Rear Support
-
27518326767 LH Rear SupportLH Rear Support
-
28518325973 RH Rear BaseRH Rear Base
-
29518325974 LH Rear BaseLH Rear Base
-
30518326282 RH Foot RollerRH Foot Roller
-
31518326283 LH Foot RollerLH Foot Roller
-
32518326656 SealSeal
-
33518326486 Front RadiatorFront Radiator
-
34518326344 Rear Radiator. Includes 34 to 35Rear Radiator. Includes 34 to 35
-
35390909100 Avex RivetAvex Rivet
-
36518325421 Rear CapRear Cap
-
37518326216 RH StirupRH Stirup
-
38518326239 LH StirupLH Stirup
-
39250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
40293730042 DartDart
-
41293450268 InsertInsert
-
42518326188 PlatePlate
-
A390909200 Avex RivetAvex Rivet
-
B390909100 Avex RivetAvex Rivet
-
C390909200 Avex RivetAvex Rivet
-
D390909100 Avex RivetAvex Rivet
-
E293150144 Stavex RivetStavex Rivet
-
F293150091 Henrob RivetHenrob Rivet
-
G293150146 Henrob RivetHenrob Rivet
-
H293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
I293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
J293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
