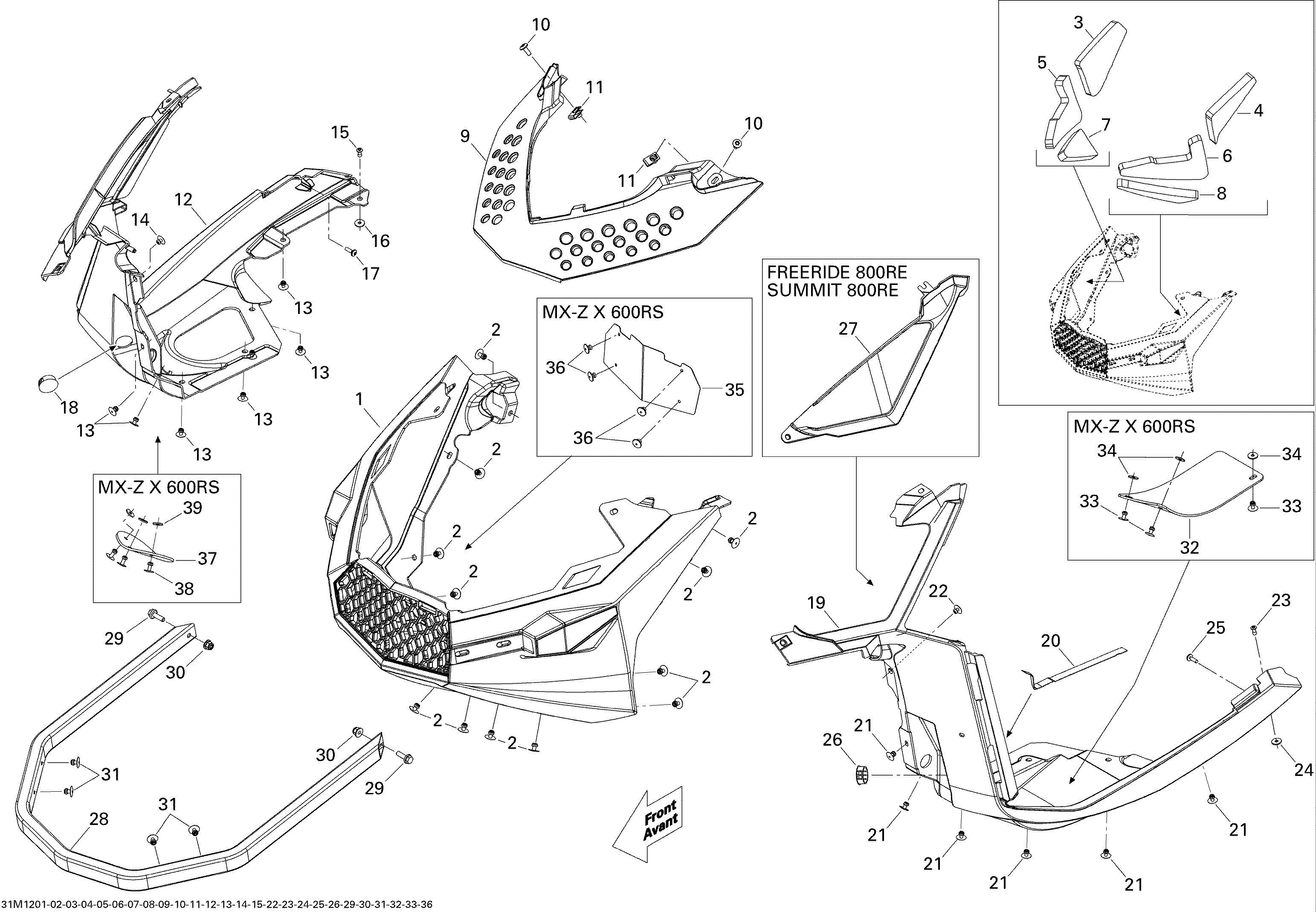

09- Bottom Pan для BRP Ski-Doo MX Z X 600RS - 2012
-
№АртикулНазвание
-
1502007052 Front Bottom Pan, Yellow 2000Front Bottom Pan, Yellow 2000
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3502007210 RH Foam UpperRH Foam Upper
-
4502007211 LH Foam UpperLH Foam Upper
-
5502007212 RH Middle FoamRH Middle Foam
-
6502007213 LH Middle FoamLH Middle Foam
-
7502007214 RH Lower FoamRH Lower Foam
-
8502007215 LH Lower FoamLH Lower Foam
-
9502007068 Bottom Pan CapBottom Pan Cap
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
12502007232 RH Bottom PanRH Bottom Pan
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
16517124300 WasherWasher
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18414916600 Nylon CapNylon Cap
-
19502007233 LH Bottom PanLH Bottom Pan
-
20293250087 Gasket, NeopreneGasket, Neoprene
-
21293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
22293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
24517124300 WasherWasher
-
25250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
26414916600 Nylon CapNylon Cap
-
28502007116 Front BumperFront Bumper
-
29207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
31293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
32502006888 Guard Plate. MX-Z X 600RSGuard Plate. MX-Z X 600RS
-
33293150104 Pop Rivet 3/16''. MX-Z X 600RSPop Rivet 3/16''. MX-Z X 600RS
-
34517124300 Washer. MX-Z X 600RSWasher. MX-Z X 600RS
-
35502007056 Bottom Pan Plate. MX-Z X 600RSBottom Pan Plate. MX-Z X 600RS
-
36293150108 Pop Rivet 3/16''. MX-Z X 600RSPop Rivet 3/16''. MX-Z X 600RS
-
37502006935 Snow Deflector. MX-Z X 600RSSnow Deflector. MX-Z X 600RS
-
38293150104 Pop Rivet 3/16''. MX-Z X 600RSPop Rivet 3/16''. MX-Z X 600RS
-
39517124300 Washer. MX-Z X 600RSWasher. MX-Z X 600RS
