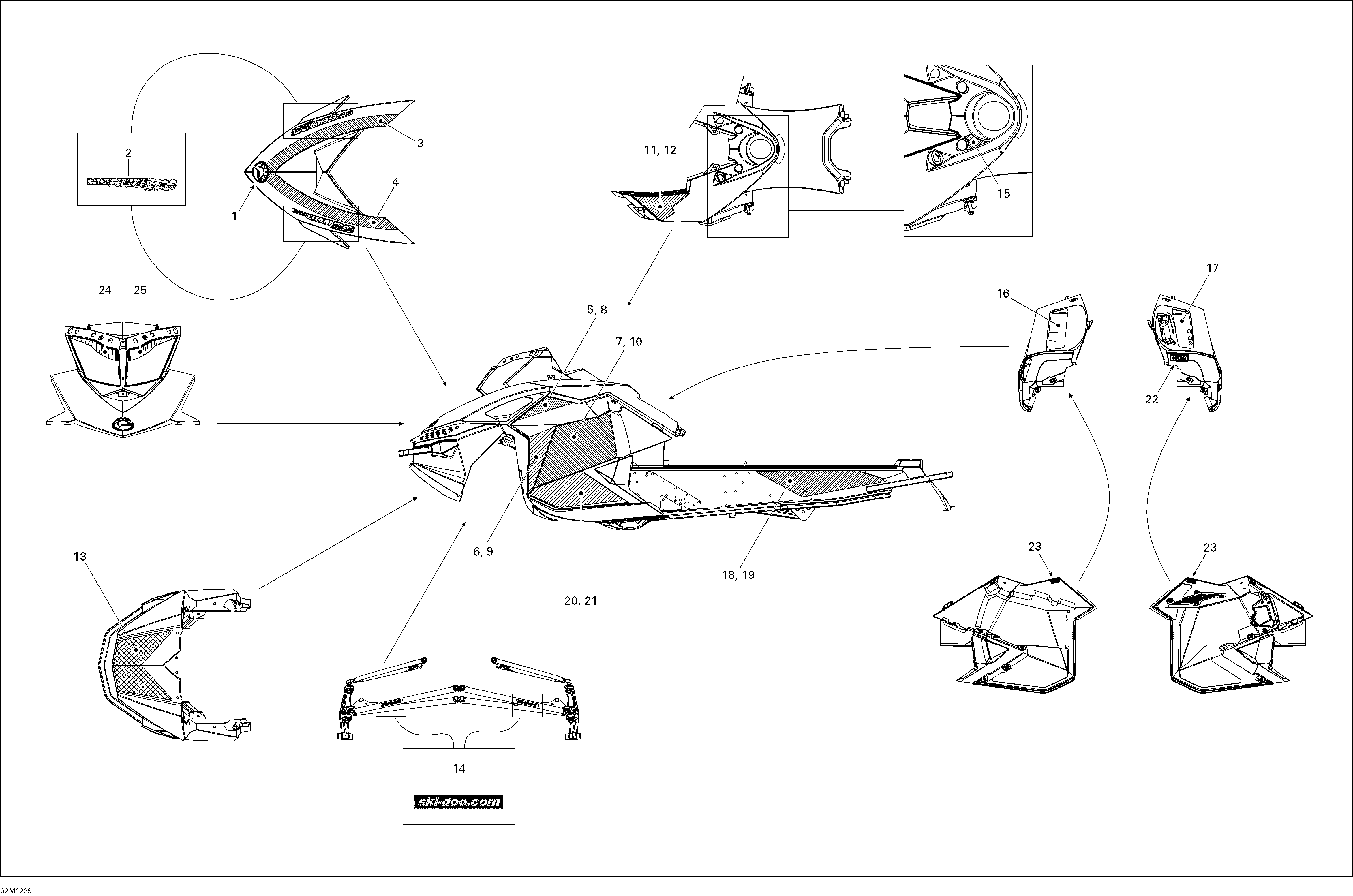

09- Decals для BRP Ski-Doo MX Z X 600RS - 2012

-
№АртикулНазвание
-
1219903609 BRP Logo, 68 mmBRP Logo, 68 mm
-
2516003570 Decal, Rotax600RSDecal, Rotax600RS
-
3516004798 RH Hood DecalRH Hood Decal
-
4516004797 LH Hood DecalLH Hood Decal
-
5516004989 RH Upper Side DecalRH Upper Side Decal
-
6516004981 RH Front Side DecalRH Front Side Decal
-
7516004991 RH Side DecalRH Side Decal
-
8516004988 LH Upper Side DecalLH Upper Side Decal
-
9516004980 LH Front Side DecalLH Front Side Decal
-
10516004990 LH Side DecalLH Side Decal
-
11516004796 RH Transition DecalRH Transition Decal
-
12516004795 LH Transition DecalLH Transition Decal
-
13516004692 Bottom Pan Lower DecalBottom Pan Lower Decal
-
14516004784 Decal, Ski-Doo.ComDecal, Ski-Doo.Com
-
15516003786 Decal, Thumb/Handle HeatingDecal, Thumb/Handle Heating
-
16516004561 Warning Decal, SecurityWarning Decal, Security
-
17516004888 Warning Decal, SecurityWarning Decal, Security
-
18516005147 RH Tunnel DecalRH Tunnel Decal
-
19516005146 LH Tunnel DecalLH Tunnel Decal
-
20516004983 RH Lower DecalRH Lower Decal
-
21516004982 LH Lower DecalLH Lower Decal
-
22516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
23516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
24516004402 RH Headlight DecalRH Headlight Decal
-
25516004401 LH Headlight DecalLH Headlight Decal
