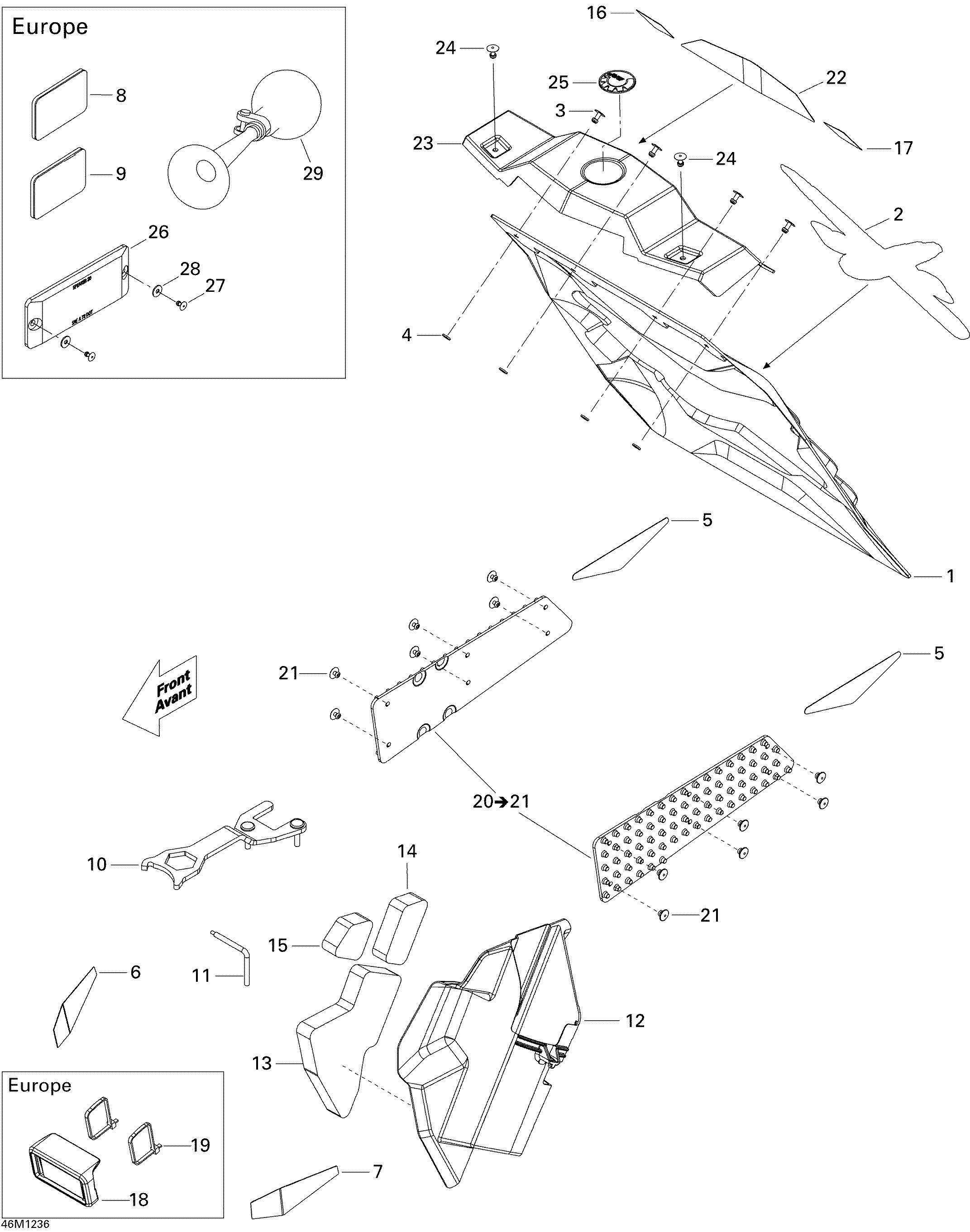

09- Utilities для BRP Ski-Doo MX Z X 600RS - 2012
-
№АртикулНазвание
-
1520000669 Snow FlapSnow Flap
-
2516003647 Decal XDecal X
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517225900 Flat WasherFlat Washer
-
5520000237 Rear Reflector, RedRear Reflector, Red
-
5520000311 Rear Reflector, Amber. EuropeRear Reflector, Amber. Europe
-
6520000718 RH Front ReflectorRH Front Reflector
-
7520000719 LH Front ReflectorLH Front Reflector
-
8520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
9415037900 Reflector, White. EuropeReflector, White. Europe
-
10520000988 Wrench SuspensionWrench Suspension
-
11417127044 Belt Installation ToolBelt Installation Tool
-
12520000842 Tool Kit RackTool Kit Rack
-
13520001059 FoamFoam
-
14520001061 FoamFoam
-
15520001062 FoamFoam
-
16516004550 Warning Decal, SecurityWarning Decal, Security
-
17516004601 Warning Decal, SecurityWarning Decal, Security
-
18520000871 Reflector Support. EuropeReflector Support. Europe
-
19293750018 Tie Rap 371 mm. EuropeTie Rap 371 mm. Europe
-
20860200164 Grip Plate Kit. Includes 20 to 21Grip Plate Kit. Includes 20 to 21
-
21293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
22520000764 ReflectorReflector
-
23520000750 CoverCover
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
26510004350 Lens. EuropeLens. Europe
-
27293150008 Pop Rivet 3/16''. EuropePop Rivet 3/16''. Europe
-
28517124300 Washer. EuropeWasher. Europe
-
29549011291 Horn. EuropeHorn. Europe
