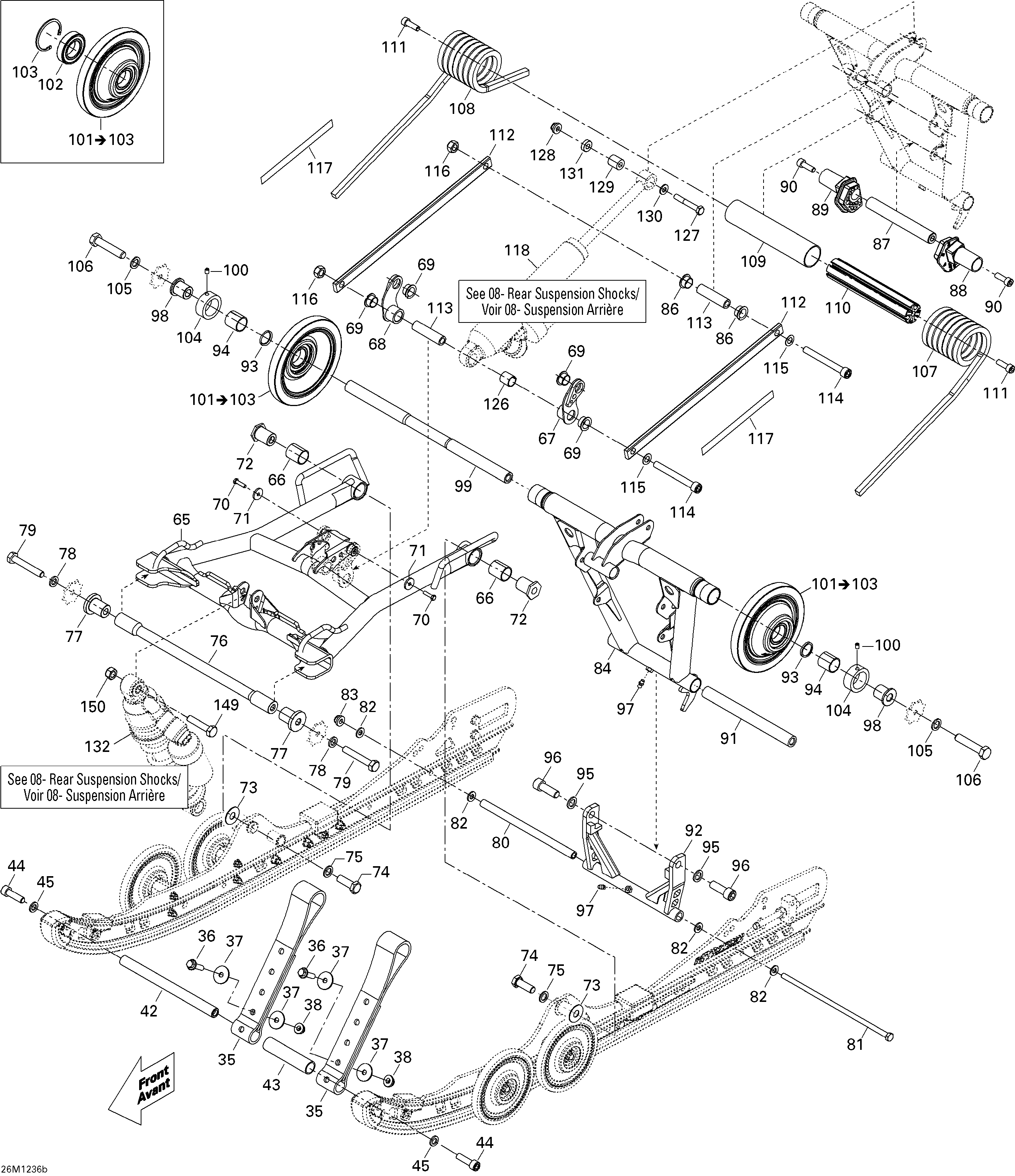

08- Rear Suspension Arm для BRP Ski-Doo MX Z X 600RS - 2012
-
№АртикулНазвание
-
35503192360 Stopper StrapStopper Strap
-
36207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
37224081301 Flat WasherFlat Washer
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
42503192115 Runner AxelRunner Axel
-
43503189265 SpacerSpacer
-
44205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
45503189564 WasherWasher
-
65503192673 Front Arm Ass'y. Includes 65 to 71Front Arm Ass'y. Includes 65 to 71
-
66503191554 BushingBushing
-
67503192706 LH Rocker ArmLH Rocker Arm
-
68503192707 RH Rocker ArmRH Rocker Arm
-
69503191555 Swivel BushingSwivel Bushing
-
70207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
71250200016 WasherWasher
-
72503191966 Lower AxleLower Axle
-
73503190656 WasherWasher
-
74250000225 Hex. Screw M12 X 35, Scotch GripHex. Screw M12 X 35, Scotch Grip
-
75503189276 WasherWasher
-
76503192713 Slide BushingSlide Bushing
-
77503192721 BushingBushing
-
78503189564 WasherWasher
-
79207206534 Hex. Screw M10 X 65, Scotch GripHex. Screw M10 X 65, Scotch Grip
-
80503189156 Pivot Arm AxlePivot Arm Axle
-
81503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
82503192494 WasherWasher
-
83250100131 Elastic Flange Nut M8Elastic Flange Nut M8
-
84503193126 Rear ArmRear Arm
-
86503191555 Swivel BushingSwivel Bushing
-
87503191178 Spring Cam AxeSpring Cam Axe
-
88503191191 LH Spring CamLH Spring Cam
-
89503191190 RH Spring CamRH Spring Cam
-
90205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
91503192095 Lower ShaftLower Shaft
-
92503192701 Pivot ArmPivot Arm
-
93503191774 WasherWasher
-
94503191773 BushingBushing
-
95503189148 WasherWasher
-
96205523587 Socket Head Screw Scotch Grip Din.912Socket Head Screw Scotch Grip Din.912
-
97408200700 Grease FittingGrease Fitting
-
98503191775 BushingBushing
-
99503191776 Upper ShaftUpper Shaft
-
100206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
101503192483 Wheel 155. Includes 101 to 103Wheel 155. Includes 101 to 103
-
102503191778 Ball BearingBall Bearing
-
103415129598 Retaining RingRetaining Ring
-
104503191782 Retaining RingRetaining Ring
-
105503189276 WasherWasher
-
106207226044 Hex. Screw M12 X 60, Scotch GripHex. Screw M12 X 60, Scotch Grip
-
107503191615 LH Spring, SquareLH Spring, Square
-
108503191614 RH Spring, SquareRH Spring, Square
-
109503191345 Plastic BushingPlastic Bushing
-
110503191344 Spring AxleSpring Axle
-
111205582544 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
112503192712 Tie RodTie Rod
-
113503191192 Bar AxleBar Axle
-
114205009044 Socket Screw M10 X 90Socket Screw M10 X 90
-
115503175800 WasherWasher
-
116232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
117516004619 DecalDecal
-
126505072663 BushingBushing
-
127207085586 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
128233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
129414936000 CushionCushion
-
130503189157 WasherWasher
-
131503190526 SpacerSpacer
-
149207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
150233601416 Elastic Locking Nut M10Elastic Locking Nut M10
