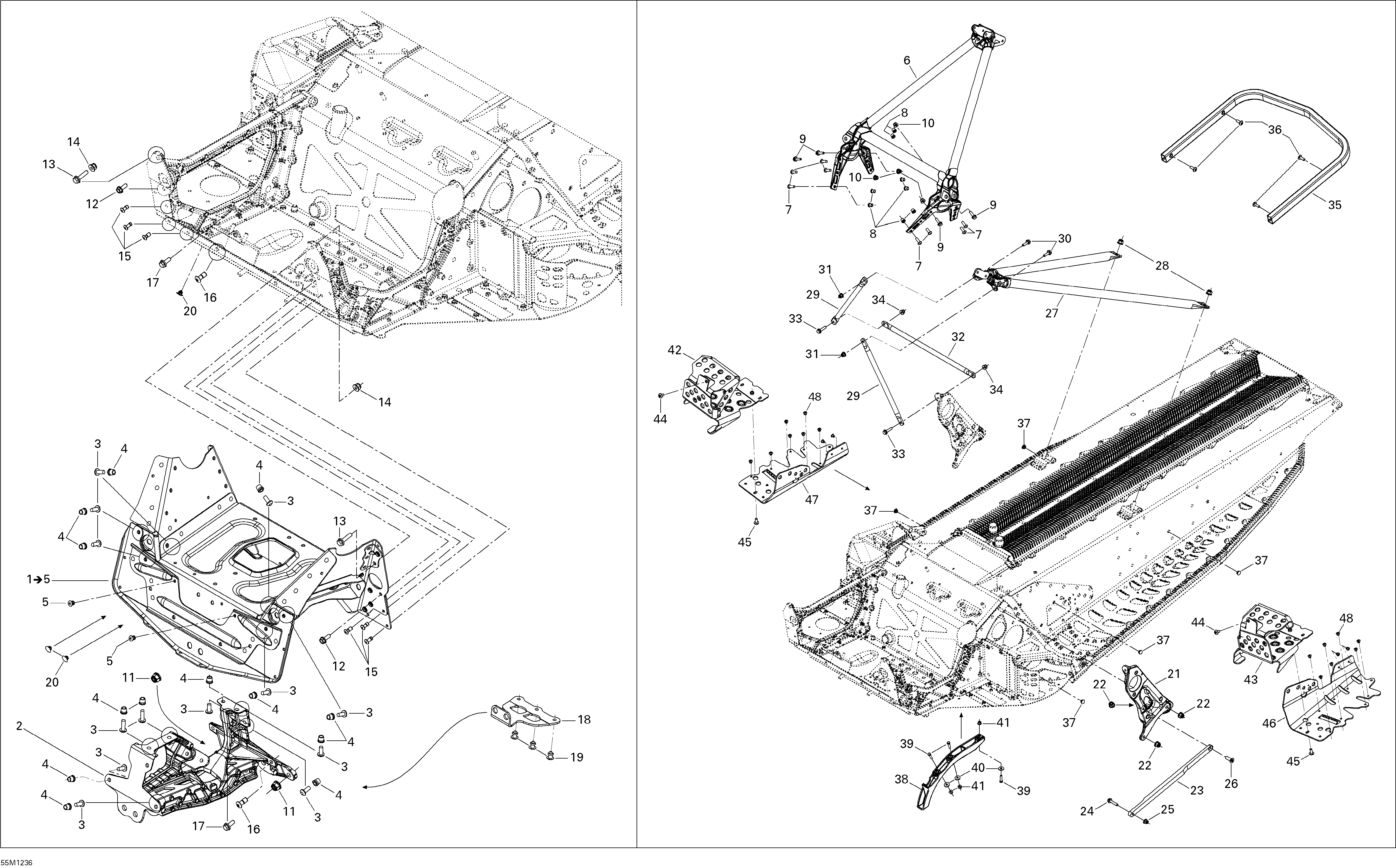

09- Frame and Components для BRP Ski-Doo MX Z X 600RS - 2012
-
№АртикулНазвание
-
1518326752 S-Module. Includes 1 to 5S-Module. Includes 1 to 5
-
2518325925 Front Suspension SupportFront Suspension Support
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
5293150144 Stavex RivetStavex Rivet
-
6518326972 Front MemberFront Member
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
14233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
16293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
17207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
18518326466 Module ReinforcementModule Reinforcement
-
19293150147 Hemlock RivetHemlock Rivet
-
20293730053 DartDart
-
21518326651 Pulley SupportPulley Support
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23518326118 LinkLink
-
24207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
25233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
26250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
27518326559 Rear MemberRear Member
-
28233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29518325114 Upper Column SupportUpper Column Support
-
30207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32518325115 Center Column SupportCenter Column Support
-
33207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
34233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
35518325481 Rear BumperRear Bumper
-
36250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
37293730047 Dart 8 mm, BlackDart 8 mm, Black
-
38518326973 Front ProtectorFront Protector
-
39207152044 Hex. Screw M5 X 20Hex. Screw M5 X 20
-
40391301600 WasherWasher
-
41233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
42518327129 Footrest RHFootrest RH
-
43518327130 Footrest LHFootrest LH
-
44250000325 Torx Screw M6 X 12Torx Screw M6 X 12
-
45250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
46518327131 LH BracketLH Bracket
-
47518327132 RH BracketRH Bracket
-
48390402200 Pop Rivet 3/16''Pop Rivet 3/16''
