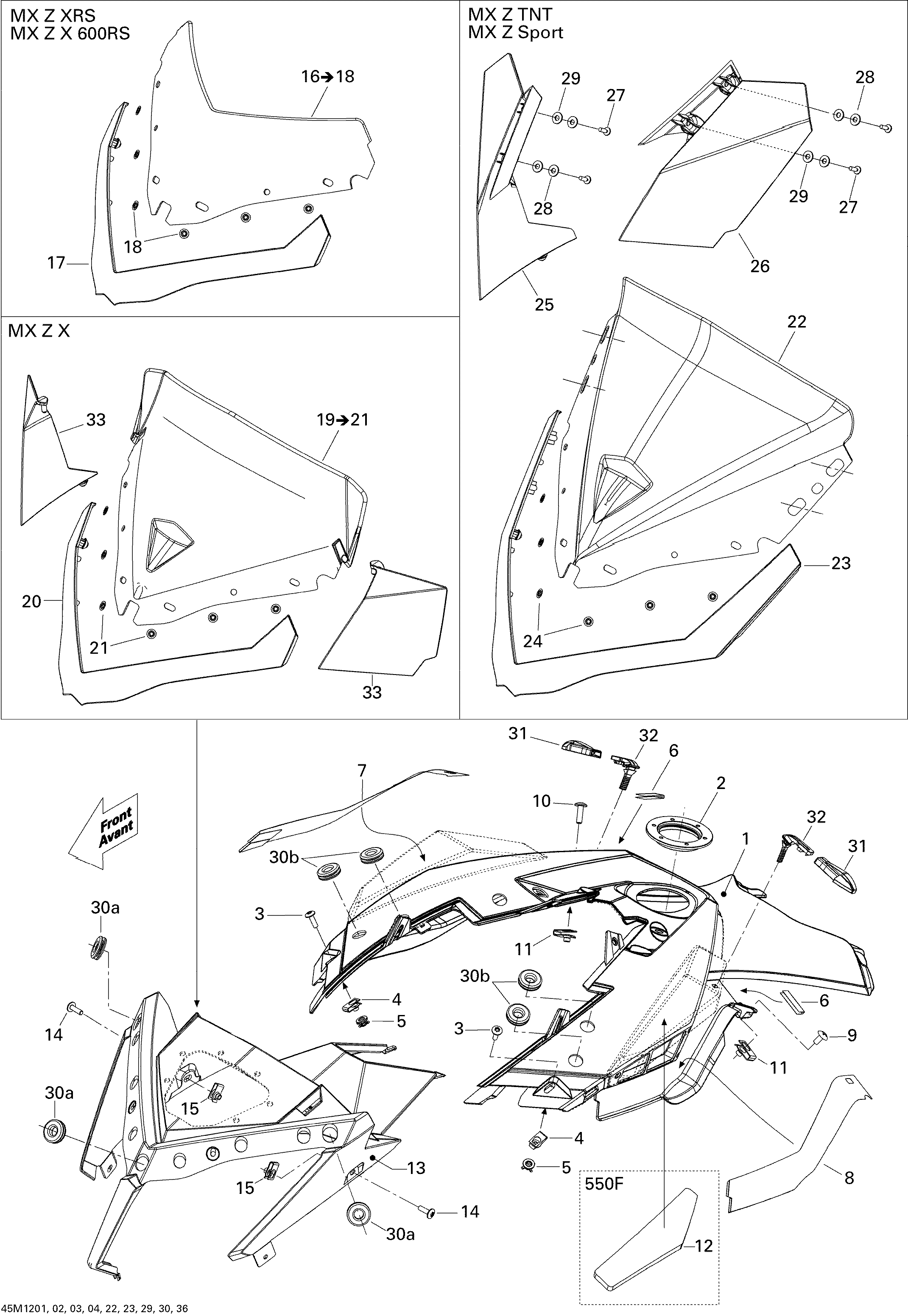

09- Windshield And Console для BRP Ski-Doo MX Z X 600RS - 2012
-
№АртикулНазвание
-
1517304127 Console, Yellow 2000Console, Yellow 2000
-
2517304518 Console NutConsole Nut
-
3250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
4250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
6517304105 Console DecalConsole Decal
-
7517304103 RH DecalRH Decal
-
8517304104 LH DecalLH Decal
-
9250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
10250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
11250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
13517304940 Gauge SupportGauge Support
-
14250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
15250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
16517304226 Low Windshield Ass'y. Includes 16 to 18Low Windshield Ass'y. Includes 16 to 18
-
17517303757 Windshield SupportWindshield Support
-
18732610072 Push NutPush Nut
-
30a517303756 GrommetGrommet
-
31860200239 Black Latch Kit. Includes 31 to 32Black Latch Kit. Includes 31 to 32
-
32517303981 Panel LatchPanel Latch
