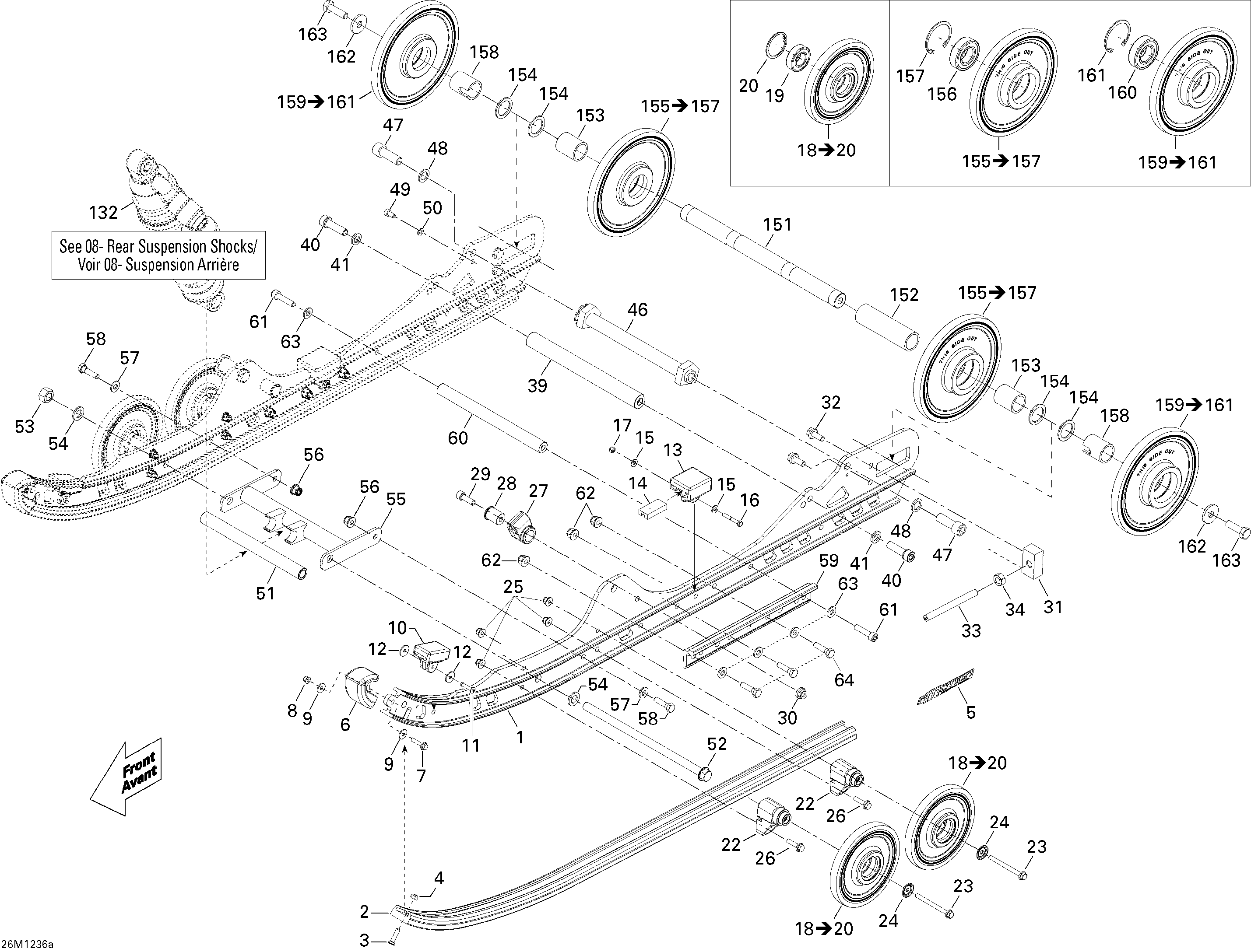

08- Rear Suspension Runner для BRP Ski-Doo MX Z X 600RS - 2012
-
№АртикулНазвание
-
1503193105 Paint Runner RSPaint Runner RS
-
2503190573 Slider ShoeSlider Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5516004755 Runner DecalRunner Decal
-
6503192299 Runner ProtectorRunner Protector
-
7207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
8233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
9391301600 WasherWasher
-
10503190576 Rubber StopperRubber Stopper
-
11293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
12503191273 WasherWasher
-
13503192099 Rubber StopperRubber Stopper
-
14572084800 Reinforcement StopperReinforcement Stopper
-
15391301700 WasherWasher
-
16207053544 Hex. Screw M5 X 35Hex. Screw M5 X 35
-
17232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
18503191316 Wheel 141 Ass'y. Includes 18 to 20Wheel 141 Ass'y. Includes 18 to 20
-
19503190396 Ball BearingBall Bearing
-
20415129371 Retaining RingRetaining Ring
-
22503193082 Casted SupportCasted Support
-
23250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
24503191820 Wheel Cup M6Wheel Cup M6
-
25250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
26250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
27503191183 Spring SupportSpring Support
-
28503190754 Retainer CushionRetainer Cushion
-
29205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
31503191984 TensionerTensioner
-
32207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
33230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
34233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
39503192715 Limit AxleLimit Axle
-
40205003544 Socket Screw M10 X 35Socket Screw M10 X 35
-
41503189564 WasherWasher
-
46503193129 Axle CamAxle Cam
-
47205523587 Socket Head Screw Scotch Grip Din.912Socket Head Screw Scotch Grip Din.912
-
48503189276 WasherWasher
-
49205061260 Socket Head Screw M6 X 12Socket Head Screw M6 X 12
-
50234161471 Lock Washer M6, BlackLock Washer M6, Black
-
51503192809 Center Shaft PivotCenter Shaft Pivot
-
52250000229 Hex. Screw M12 X 252Hex. Screw M12 X 252
-
53232021416 Hex. Nut M12Hex. Nut M12
-
54503189148 WasherWasher
-
55503192711 ReinforcementReinforcement
-
56233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
57503189157 WasherWasher
-
58207183044 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
59503191804 Rail ReinforcementRail Reinforcement
-
60503151600 AxleAxle
-
61205583544 Socket Head Screw M8 X 35, Scotch GripSocket Head Screw M8 X 35, Scotch Grip
-
62233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
63503189157 WasherWasher
-
64207183044 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
151503167900 Rear AxleRear Axle
-
152503156000 Center SpacerCenter Spacer
-
153503182900 Inner SpacerInner Spacer
-
154503180400 WasherWasher
-
155503189568 Wheel 165 Ass'Y. Includes 155 to 157Wheel 165 Ass'Y. Includes 155 to 157
-
156293350055 Ball BearingBall Bearing
-
157371901700 CirclipCirclip
-
158503189809 Outer SpacerOuter Spacer
-
159503189568 Wheel 165 Ass'Y. Includes 159 to 161Wheel 165 Ass'Y. Includes 159 to 161
-
160293350055 Ball BearingBall Bearing
-
161371901700 CirclipCirclip
-
162503183300 WasherWasher
-
163250000019 Hex. Screw With NylonHex. Screw With Nylon
