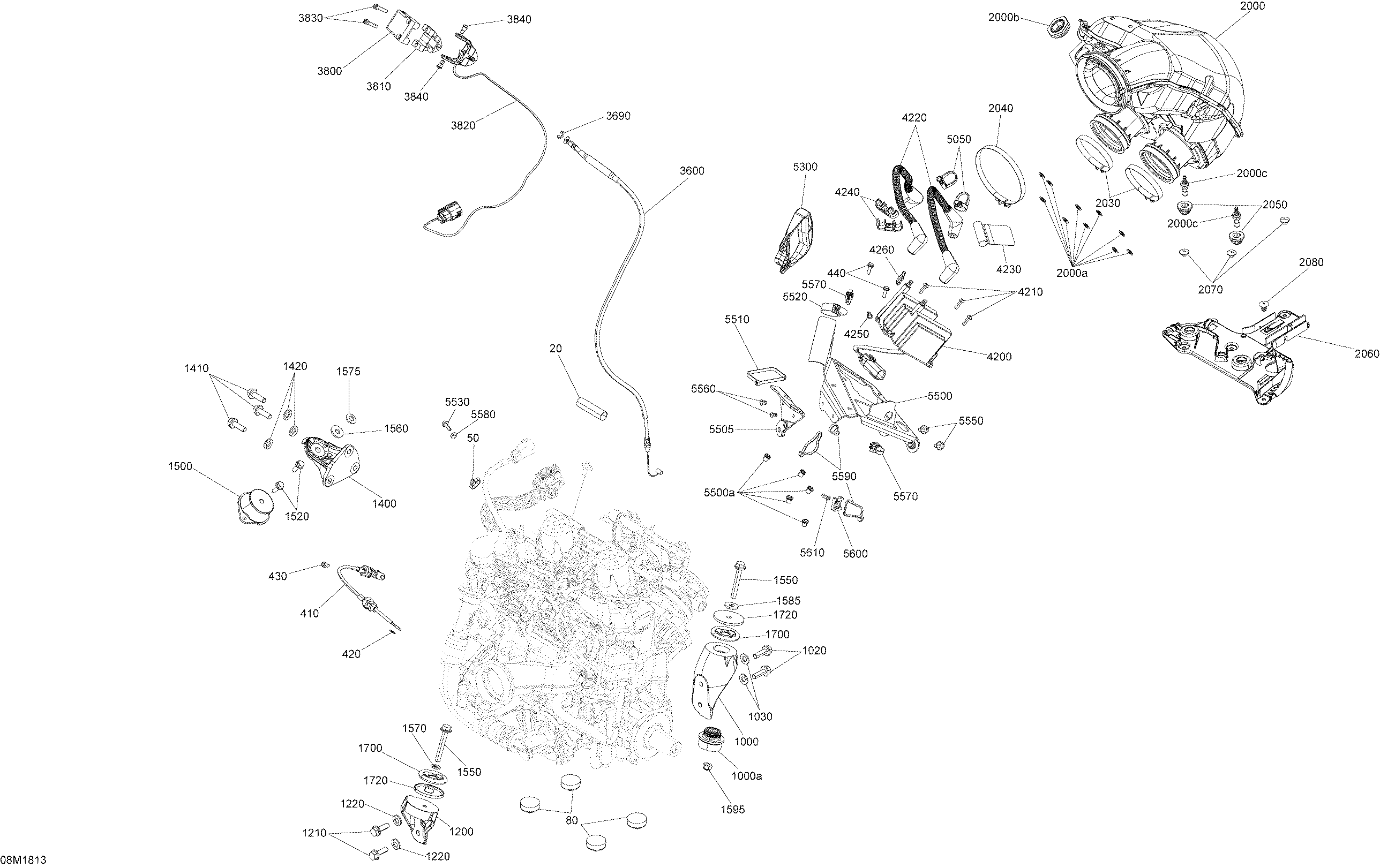

01- Engine MXZ - 600 RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
20515178492 Braided SleeveBraided Sleeve
-
50414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
80512061204 StopperStopper
-
410420997033 Bowden Cable Ass'yBowden Cable Ass'y
-
420293370122 CirclipCirclip
-
430205551060 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
440207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
1000512061283 Support Ass'y. Includes 1000 to 1000,001Support Ass'y. Includes 1000 to 1000,001
-
1000.001512061284 Rubber MountRubber Mount
-
1020207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1030250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1200512061025 Front PTO SupportFront PTO Support
-
1210207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1220250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1400512061027 MAG SupportMAG Support
-
1410207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1420250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1500512060360 Rubber MountRubber Mount
-
1520250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1550207585544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
1560503183200 Washer, YellowWasher, Yellow
-
1570250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
1575250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1585503183200 Washer, YellowWasher, Yellow
-
1595232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1700512061137 Engine StopperEngine Stopper
-
1720512061287 SpacerSpacer
-
2000508000933 Chamber Assy. Includes 2000 to 2000,003Chamber Assy. Includes 2000 to 2000,003
-
2000.001732610072 Push NutPush Nut
-
2000.002512061083 RubberRubber
-
2000.003420441840 ScrewScrew
-
2030293650212 GEMI ClampGEMI Clamp
-
2040293650247 Gemi ClampGemi Clamp
-
2050420201630 Rubber CapRubber Cap
-
2060512061274 Airbox SupportAirbox Support
-
2070293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2080293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3600512061026 Throttle CableThrottle Cable
-
3690414274500 CirclipCirclip
-
3800512061248 Upper HousingUpper Housing
-
3810512061294 Lower HousingLower Housing
-
3820512061266 Throttle Ass'yThrottle Ass'y
-
3830205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
3840250000991 Flanged Screw M5x12Flanged Screw M5x12
-
4200512061168 Ignition CoilIgnition Coil
-
4210250000578 Torx Truss Screw M5 X 16Torx Truss Screw M5 X 16
-
4220512061166 Ignition CableIgnition Cable
-
4230516007661 Warning Decal, InjectorsWarning Decal, Injectors
-
4240512061238 Spark Plug Wire HolderSpark Plug Wire Holder
-
4250293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
4260293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
5050512060993 ClampClamp
-
5300512060136 Starter GripStarter Grip
-
5500512061276 Support. Includes 5500 to 5500,001Support. Includes 5500 to 5500,001
-
5500.001293450268 InsertInsert
-
5505512061296 SupportSupport
-
5510293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
5520509000931 Gear ClampGear Clamp
-
5530207551644 Hex. Flanged Screw M5 x 16, Scotch GripHex. Flanged Screw M5 x 16, Scotch Grip
-
5550207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
5560390909200 Avex RivetAvex Rivet
-
5570710002899 Clip Tie-RapClip Tie-Rap
-
5580505073892 SpacerSpacer
-
5590414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
5600293750026 Tie Rap MountTie Rap Mount
-
5610390402300 Pop Rivet 3/16''Pop Rivet 3/16''
