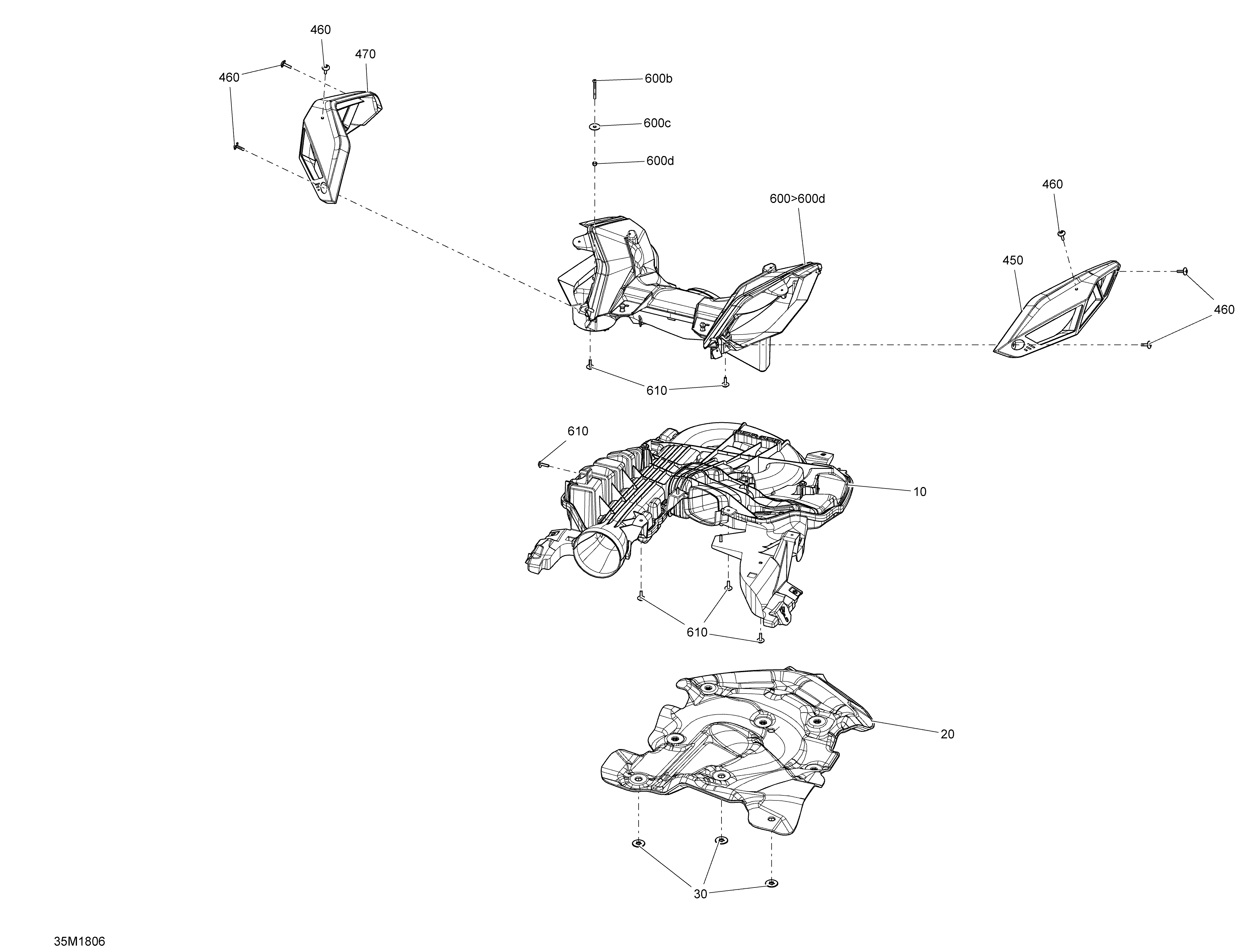

02- Air Intake - 600 RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
10508000874 Secondary ChamberSecondary Chamber
-
20508000914 Acoustic CoverAcoustic Cover
-
30508000853 Push NutPush Nut
-
450508000806 RH Air FilterRH Air Filter
-
460250000889 Screw M4 X 16Screw M4 X 16
-
470508000807 LH Air FilterLH Air Filter
-
480250000889 Screw M4 X 16Screw M4 X 16
-
600508000915 Air Duct Assembly. Includes 600 to 600dAir Duct Assembly. Includes 600 to 600d
-
600a250000725 Screw M4 X 16Screw M4 X 16
-
600b205444056 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
600c224060201 Flat WasherFlat Washer
-
600d232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
610250000725 Screw M4 X 16Screw M4 X 16
