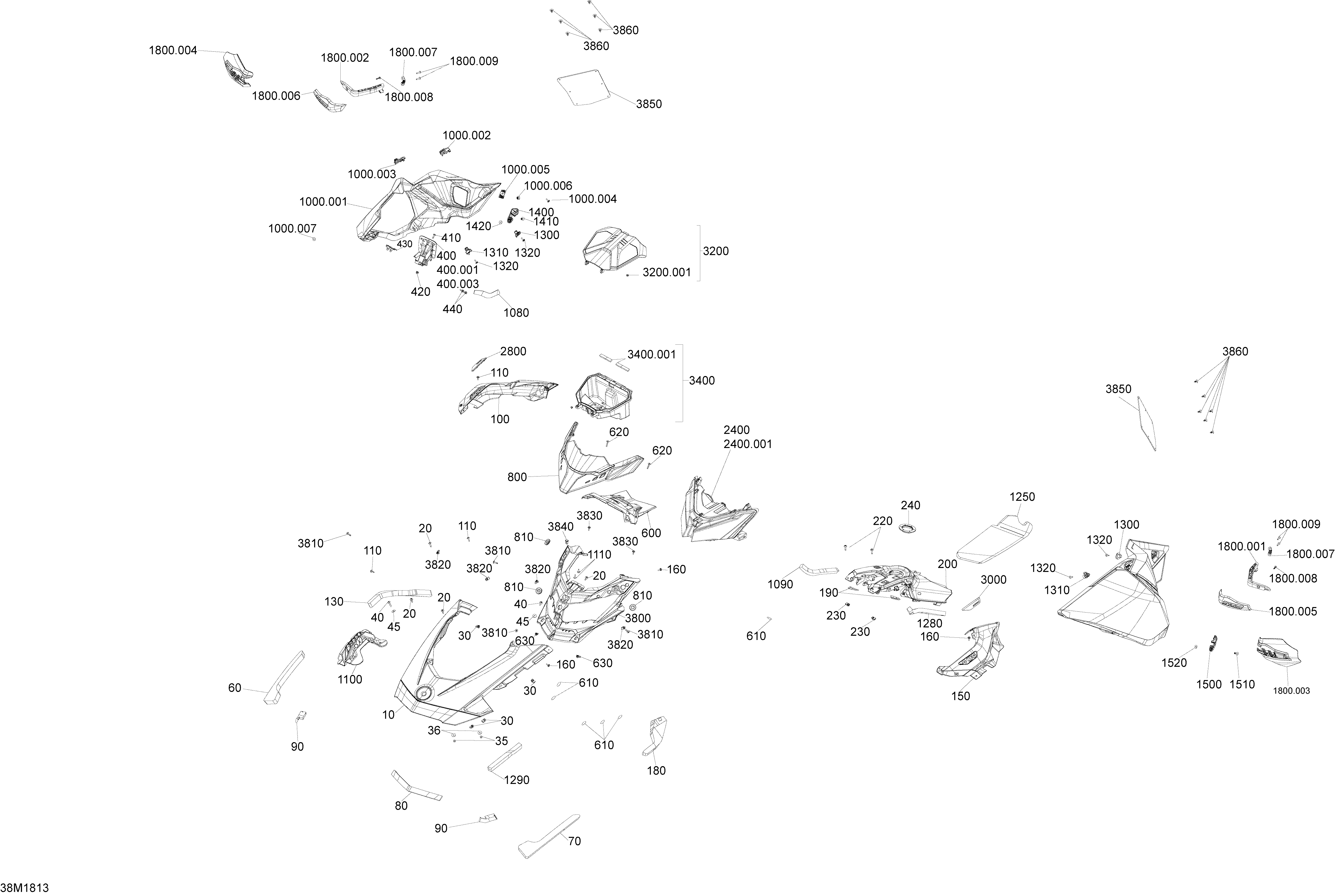

09- Hood MXZ RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
10517305983 Yellow - Front HoodYellow - Front Hood
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
35233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
36250200040 Flat WasherFlat Washer
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
45250200166 WasherWasher
-
60517305763 Front Hood Foam RHFront Hood Foam RH
-
70517305764 Front Hood Foam LHFront Hood Foam LH
-
80517306592 Hood Foam FHood Foam F
-
90517306593 Hood FoamHood Foam
-
100517306009 Yellow - Hood RHYellow - Hood RH
-
110250000725 Screw M4 X 16Screw M4 X 16
-
130517306001 Hood Foam RHHood Foam RH
-
150517306010 Yellow - Hood LHYellow - Hood LH
-
160250000725 Screw M4 X 16Screw M4 X 16
-
180517306002 Hood Foam LHHood Foam LH
-
190513033813 GasketGasket
-
200517305892 Rear ConsoleRear Console
-
220250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
230250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
240517304518 Console NutConsole Nut
-
400517305765 Console RH. Includes 400 to 400,003Console RH. Includes 400 to 400,003
-
400.001275500241 Black - CapBlack - Cap
-
400.003293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
410250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
420250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
430517306315 Rope GuideRope Guide
-
440210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
600517305782 Indicator SupportIndicator Support
-
610518325560 Adhesive PatchAdhesive Patch
-
620250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
630250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
800517306432 Deflecteur WindDeflecteur Wind
-
810517303756 GrommetGrommet
-
1000.001517306004 Black - Panel RHBlack - Panel RH
-
1000.002517305773 Rear Latch RHRear Latch RH
-
1000.003517305979 Front Latch RHFront Latch RH
-
1000.004250000725 Screw M4 X 16Screw M4 X 16
-
1000.005517306311 Hook RHHook RH
-
1000.006293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000.007517124300 WasherWasher
-
1080517306262 Rubber SheetRubber Sheet
-
1090517306480 FoamFoam
-
1100517305862 Grill RHGrill RH
-
1110250000725 Screw M4 X 16Screw M4 X 16
-
1250517305769 Front Panel Foam LHFront Panel Foam LH
-
1280517306479 FoamFoam
-
1290517306594 FoamFoam
-
1300517305985 Rear StudRear Stud
-
1310517305988 Front StudFront Stud
-
1320250000725 Screw M4 X 16Screw M4 X 16
-
1400517306309 Lower Latch RHLower Latch RH
-
1410293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1420517124300 WasherWasher
-
1500517306310 Latch - LeftLatch - Left
-
1510293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1520517124300 WasherWasher
-
1800.001517305290 LH ArmLH Arm
-
1800.002517305293 RH ArmRH Arm
-
1800.003517305291 LH DeflectorLH Deflector
-
1800.004517305294 RH DeflectorRH Deflector
-
1800.005517305589 Yellow - LH CapYellow - LH Cap
-
1800.006517305588 Yellow - RH CapYellow - RH Cap
-
1800.007517305296 BrideBride
-
1800.008250000760 Torx Screw Truss Head K50 X 20Torx Screw Truss Head K50 X 20
-
1800.009250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2400517305752 Headlamp. Includes 2400 to 2400,001Headlamp. Includes 2400 to 2400,001
-
2400.001
-
2800517306049 Hood Plate RHHood Plate RH
-
3000517306050 Hood Plate LHHood Plate LH
-
3200517305871 Cover Ass'y. Includes 3200 to 3200,001Cover Ass'y. Includes 3200 to 3200,001
-
3200.001732610072 Push NutPush Nut
-
3400517306058 Trunk Ass'y. Includes 3400 to 3400,001Trunk Ass'y. Includes 3400 to 3400,001
-
3400.001517305157 Seal JointSeal Joint
-
3800517306365 Fairing - Head-LampFairing - Head-Lamp
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
-
3840293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3850517306595 Panel PlatePanel Plate
-
3860414644300 DartDart
