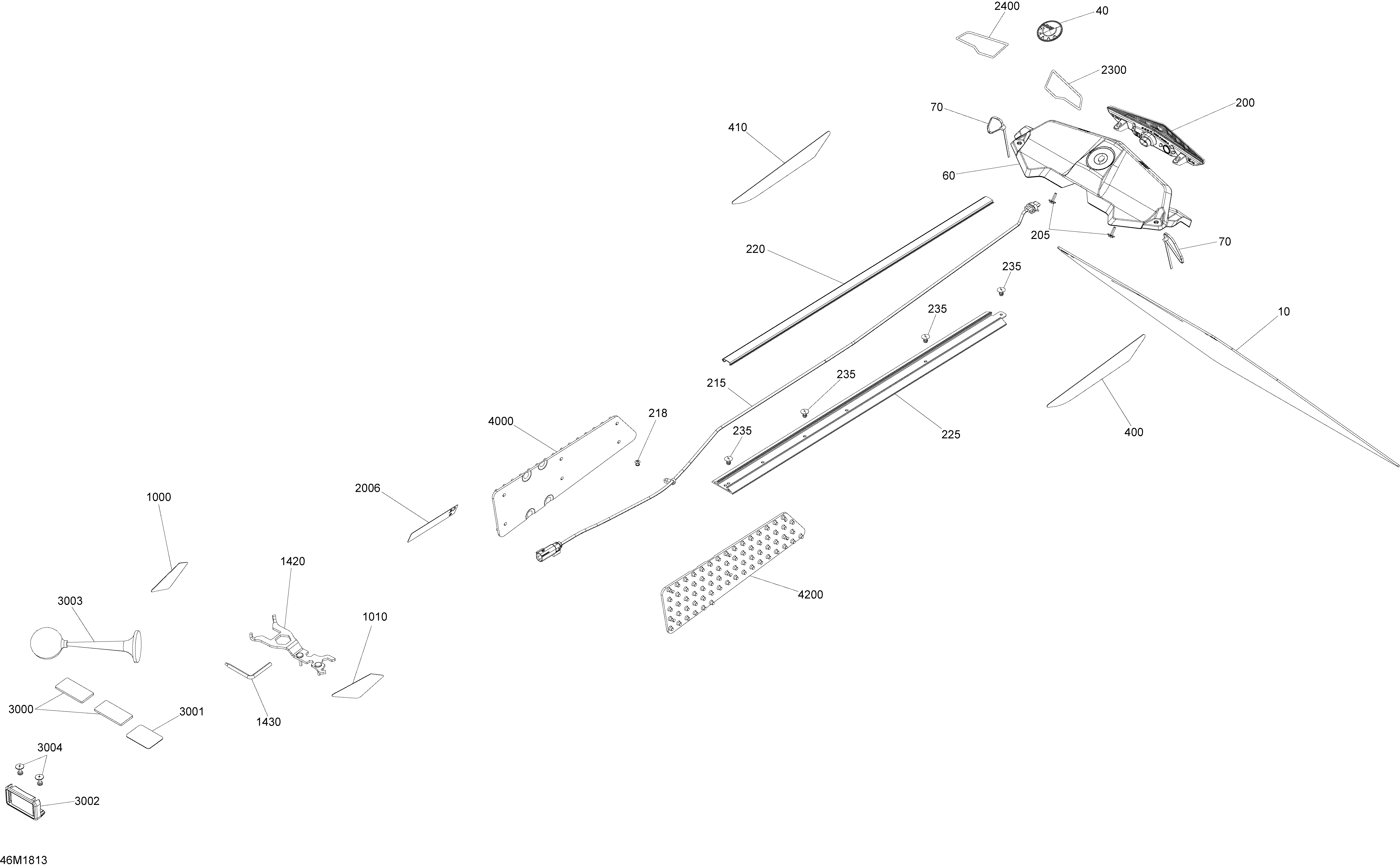

09- Utilities MXZ RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
10520001667 Snow FlapSnow Flap
-
40516008738 Logo BRPLogo BRP
-
60520001487 Light FairingLight Fairing
-
70293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
200520001143 Rear LightRear Light
-
205250000725 Screw M4 X 16Screw M4 X 16
-
215515178264 Rear Light HarnessRear Light Harness
-
218390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
220520001719 Radiator TrimRadiator Trim
-
225520001703 Wire ProtectorWire Protector
-
235293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400520001492 Rear Reflector LH. North AmericaRear Reflector LH. North America
-
400520001699 Rear Reflector LH. EuropeRear Reflector LH. Europe
-
410520001491 Rear Reflector RH. North AmericaRear Reflector RH. North America
-
410520001698 Rear Reflector RH. EuropeRear Reflector RH. Europe
-
1000520001493 Front Reflector RHFront Reflector RH
-
1010520001494 Front Reflector LHFront Reflector LH
-
1420520001499 WrenchWrench
-
1430417127579 Belt Installation ToolBelt Installation Tool
-
2006516008823 Europe Decal. EuropeEurope Decal. Europe
-
2300516008594 Safety LabelSafety Label
-
2400516006892 English Warning Decal RHEnglish Warning Decal RH
-
3000520000271 Amber Reflector. EuropeAmber Reflector. Europe
-
3001415037900 White Reflector. EuropeWhite Reflector. Europe
-
3002520001787 Reflector Support. EuropeReflector Support. Europe
-
3003549011291 Horn. EuropeHorn. Europe
-
3004293150103 Black Pop Rivet 3/16''. EuropeBlack Pop Rivet 3/16''. Europe
-
4000860200164 Grip Plate KitGrip Plate Kit
-
4200860200164 Grip Plate KitGrip Plate Kit
