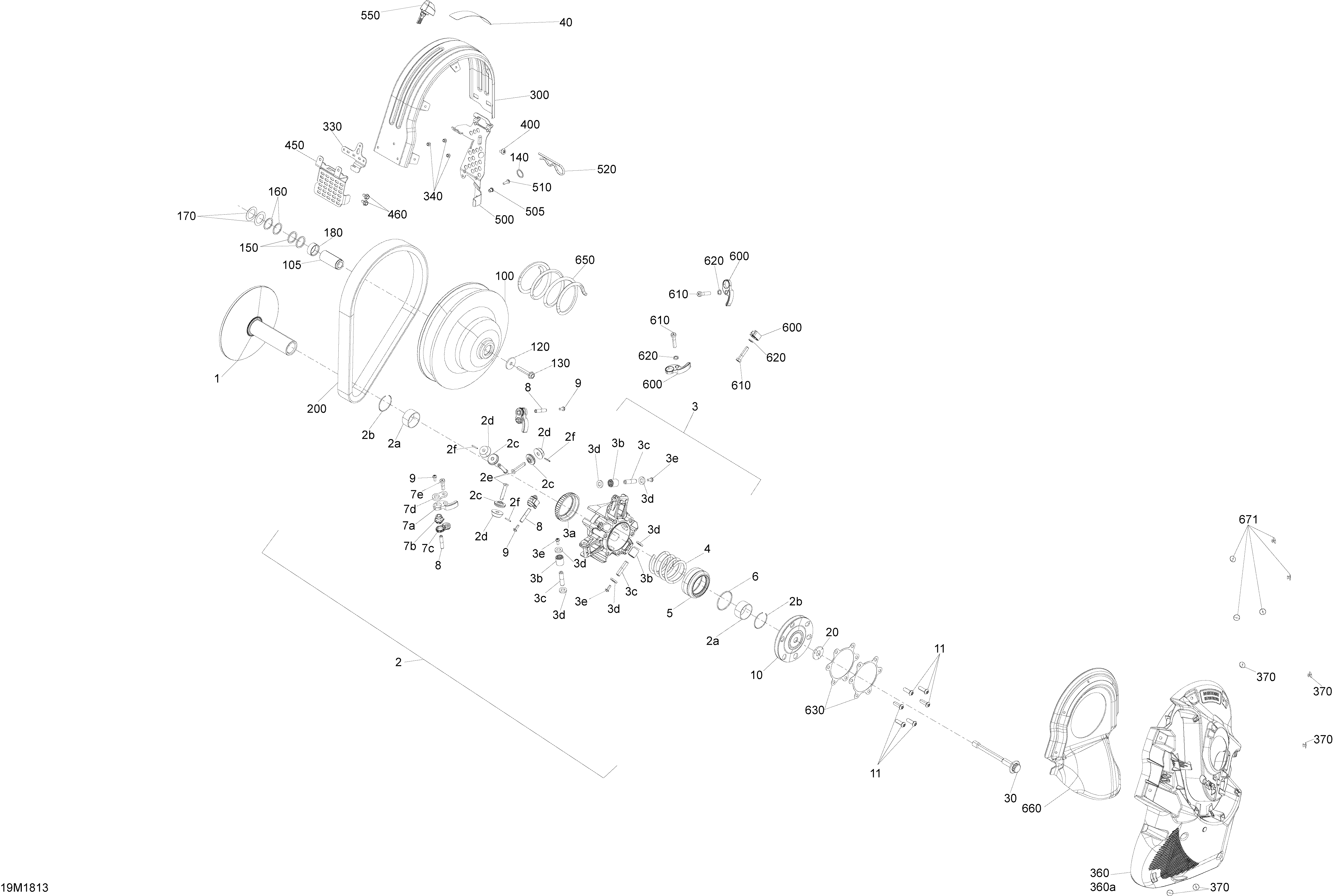

05- Pulley MXZ RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
1417224196 Fixed Flange Ass'yFixed Flange Ass'y
-
2417224276 Slidding Flange Assembly. Includes 2 to 2,015Slidding Flange Assembly. Includes 2 to 2,015
-
2.006293250389 BushingBushing
-
2.007293370117 CirclipCirclip
-
2.01417223991 Back Torque RollerBack Torque Roller
-
2.012417224034 Torque RollerTorque Roller
-
2.014417224277 Axle - 8mmAxle - 8mm
-
2.015250400074 Spring Pin 3/32'' X 3/4''Spring Pin 3/32'' X 3/4''
-
3417224055 Spider Assembly. Includes 3 to 3,007Spider Assembly. Includes 3 to 3,007
-
3.003417224151 Spring GuideSpring Guide
-
3.004417223808 Roller AssyRoller Assy
-
3.005417223989 Axle - 10mmAxle - 10mm
-
3.006417224009 Washer-ThrustWasher-Thrust
-
3.007250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
4417224169 Clutch SpringClutch Spring
-
5417224003 Seat SpringSeat Spring
-
6293370116 CirclipCirclip
-
7.001417224112 Ramp 960Ramp 960
-
7.002417224113 Cam MoldedCam Molded
-
7.003417224086 Lever-RightLever-Right
-
7.004417224114 Lever LeftLever Left
-
7.005417224220 Pivot 26mmPivot 26mm
-
8417223631 Axle - 8mmAxle - 8mm
-
9250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
10417223994 Cushion-DriveCushion-Drive
-
11250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
20250200144 Conical Spring Washer M14Conical Spring Washer M14
-
30417300522 Pulley Drive Bolt M14 X 144Pulley Drive Bolt M14 X 144
-
40516007667 Warning DecalWarning Decal
-
100417127556 Pulley-drivenPulley-driven
-
105417127300 BushingBushing
-
120503183100 WasherWasher
-
130207584544 Hex. Flanged Screw M8 X 45, Scotch GripHex. Flanged Screw M8 X 45, Scotch Grip
-
140504149100 SpacerSpacer
-
150417300252 SpacerSpacer
-
160417300265 SpacerSpacer
-
170504112000 ShimShim
-
180417300399 SpacerSpacer
-
200417300534 Drive BeltDrive Belt
-
300417300479 Belt GuardBelt Guard
-
330417300547 Front BracketFront Bracket
-
340390909200 Avex RivetAvex Rivet
-
360417300552 Cvt Air Duct. Includes 360 to 360,001Cvt Air Duct. Includes 360 to 360,001
-
360.001417300533 Cvt Air DuctCvt Air Duct
-
370293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
400250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
450417300546 SupportSupport
-
460207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
500417300482 Belt Guard BracketBelt Guard Bracket
-
505293450268 InsertInsert
-
510207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
520114045200 Hair PinHair Pin
-
550417300506 StopperStopper
-
600417224274 Ramp 974Ramp 974
-
610417224222 Pivot 38mmPivot 38mm
-
620417224363 WeightWeight
-
630417224060 SpacerSpacer
-
650417127625 Release SpringRelease Spring
-
660417300526 Cvt Air DuctCvt Air Duct
-
671293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
