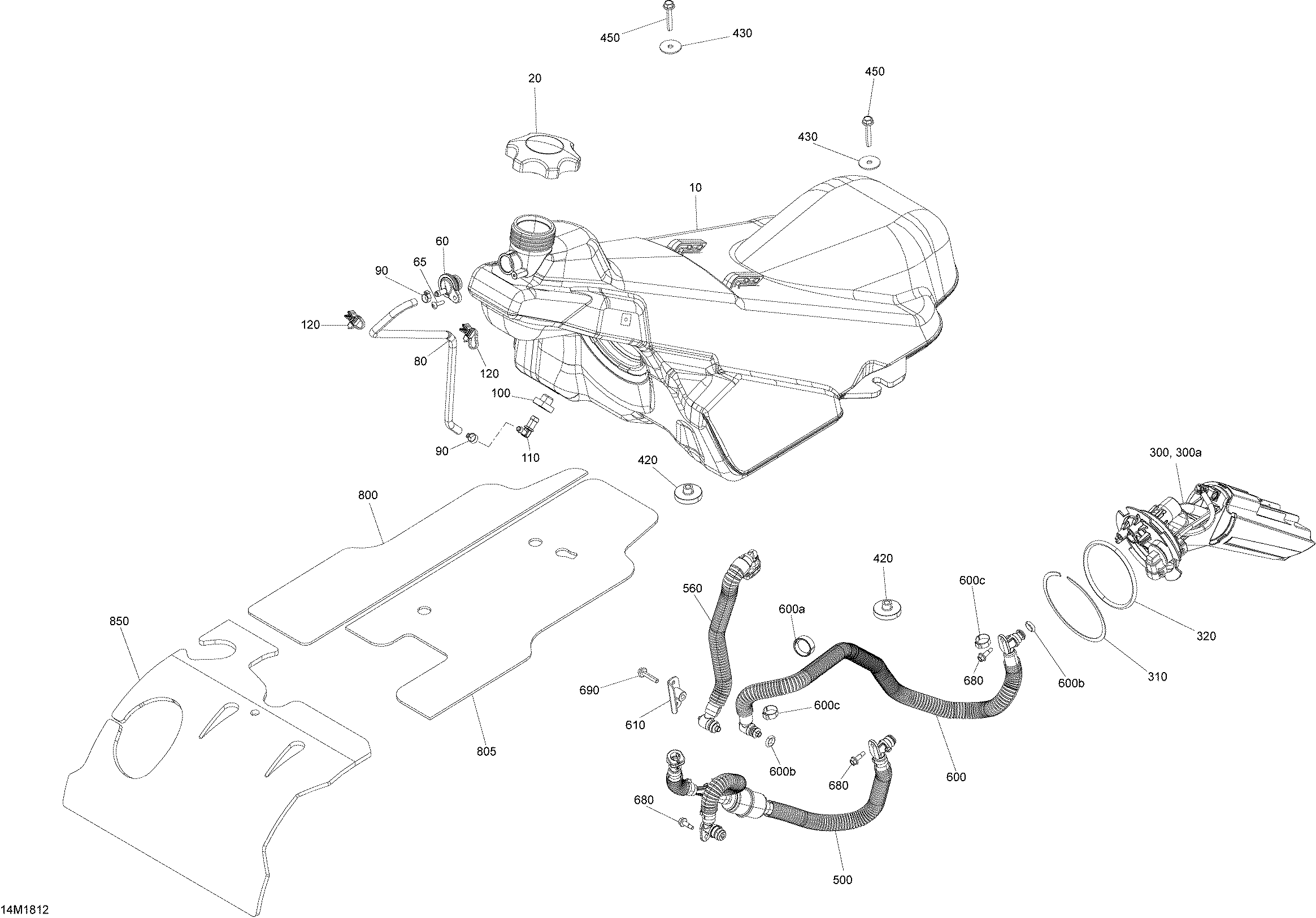

02- Fuel MXZ - 600 RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
10513033843 Fuel TankFuel Tank
-
20513033752 Fuel Tank Cap. North AmericaFuel Tank Cap. North America
-
20513033755 Fuel Tank Cap. EuropeFuel Tank Cap. Europe
-
60513033864 FittingFitting
-
65250000918 Truss Torx Screw K40 X 16Truss Torx Screw K40 X 16
-
80415080200 Hose, PolyurethaneHose, Polyurethane
-
90293650262 Oeticker ClampOeticker Clamp
-
100709200285 GrommetGrommet
-
110414580700 Male ConnectorMale Connector
-
120710002896 Tie-Rap ClipTie-Rap Clip
-
300513033850 Fuel Pump Ass'y. Includes 300 to 300aFuel Pump Ass'y. Includes 300 to 300a
-
300a415130069 Gas FilterGas Filter
-
310513033798 CirclipCirclip
-
320513033862 O-RingO-Ring
-
420513033807 BushingBushing
-
430503193995 WasherWasher
-
450207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
500513033909 Hose Ass`yHose Ass`y
-
560513033908 Hose Ass`yHose Ass`y
-
600513033906 Hose Ass'y. Includes 600 to 600cHose Ass'y. Includes 600 to 600c
-
600a513033910 RingRing
-
600b513033668 O-RingO-Ring
-
600c293650053 Crimp ClampCrimp Clamp
-
610513033897 Braket Ass'yBraket Ass'y
-
680250000911 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
690207552544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
800513033866 Insulated FoamInsulated Foam
-
805513033867 Insulated FoamInsulated Foam
-
850513033896 Insulated Front FoamInsulated Front Foam
