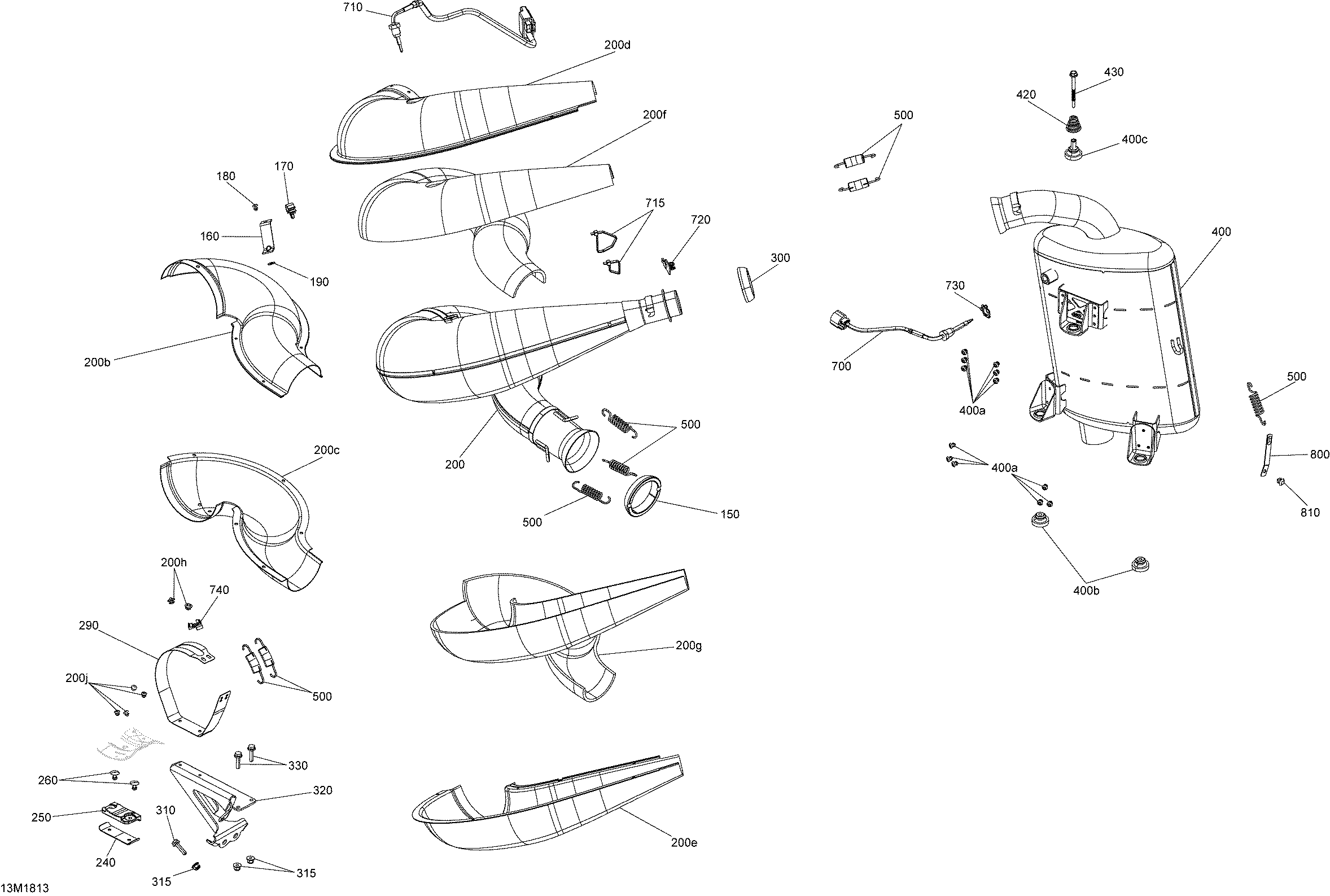

01- Exhaust MXZ RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
150514053487 Exhaust GasketExhaust Gasket
-
160514055512 SupportSupport
-
170515176795 ClipClip
-
180390909200 Avex RivetAvex Rivet
-
190514055537 Washer 3/16Washer 3/16
-
200514055428 Tune Pipe. Includes 200 to 200jTune Pipe. Includes 200 to 200j
-
200b514055222 Upper Front ShellUpper Front Shell
-
200c514055223 Lower Front ShellLower Front Shell
-
200d514055599 Upper Rear ShellUpper Rear Shell
-
200e514055573 Low Rear ShellLow Rear Shell
-
200f514055220 WoolWool
-
200g514055385 WoolWool
-
200h390909200 Avex RivetAvex Rivet
-
200j390909200 Avex RivetAvex Rivet
-
240514054638 Reinforcement PlateReinforcement Plate
-
250514054275 BumperBumper
-
260293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
290514055631 Retaining StrapRetaining Strap
-
300514055294 Exhaust GasketExhaust Gasket
-
310207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
315233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
320514055595 Welded SupportWelded Support
-
330207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
400514055429 Muffler Ass'y. Includes 400 to 400cMuffler Ass'y. Includes 400 to 400c
-
400a390909200 Avex RivetAvex Rivet
-
400b514055203 StopperStopper
-
400c514055422 Stopper Ass'yStopper Ass'y
-
420514055282 SpringSpring
-
430250000926 Hex. Flanged Screw M6Hex. Flanged Screw M6
-
500514055198 SpringSpring
-
700514055423 Temperature SensorTemperature Sensor
-
710515178170 ModuleModule
-
715414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
720514055393 SupportSupport
-
730514055100 Tab LockTab Lock
-
740514055604 Tab LockTab Lock
-
800514055644 Spring BracketSpring Bracket
-
810293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
