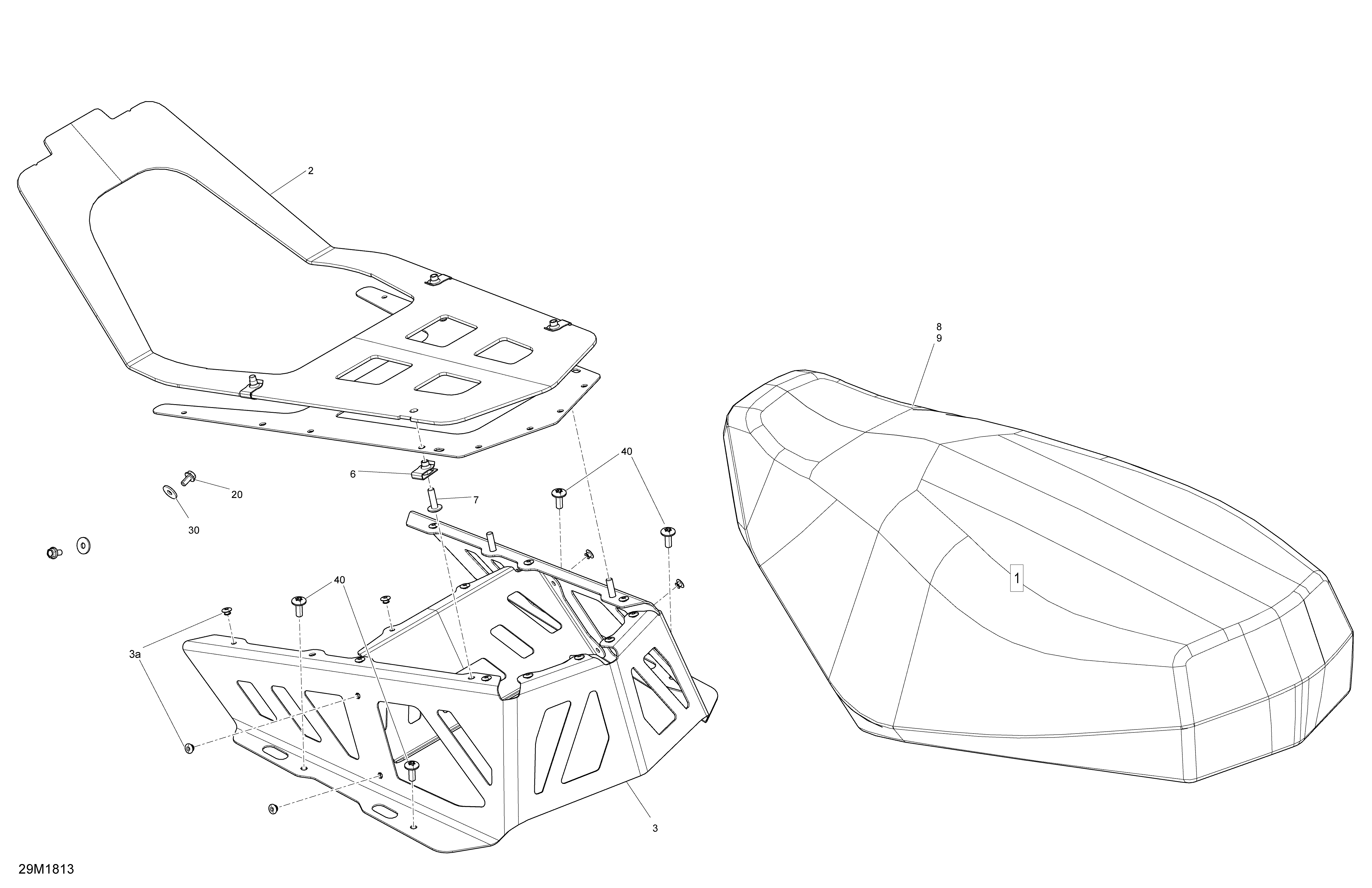

09- Seat MXZ RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
2510006295 Seat BaseSeat Base
-
3510006423 Seat Base. Includes 3 to 3aSeat Base. Includes 3 to 3a
-
3a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
8510006296 Foam-SeatFoam-Seat
-
9510006300 Cover-SeatCover-Seat
-
20207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
30250200140 WasherWasher
-
40250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
