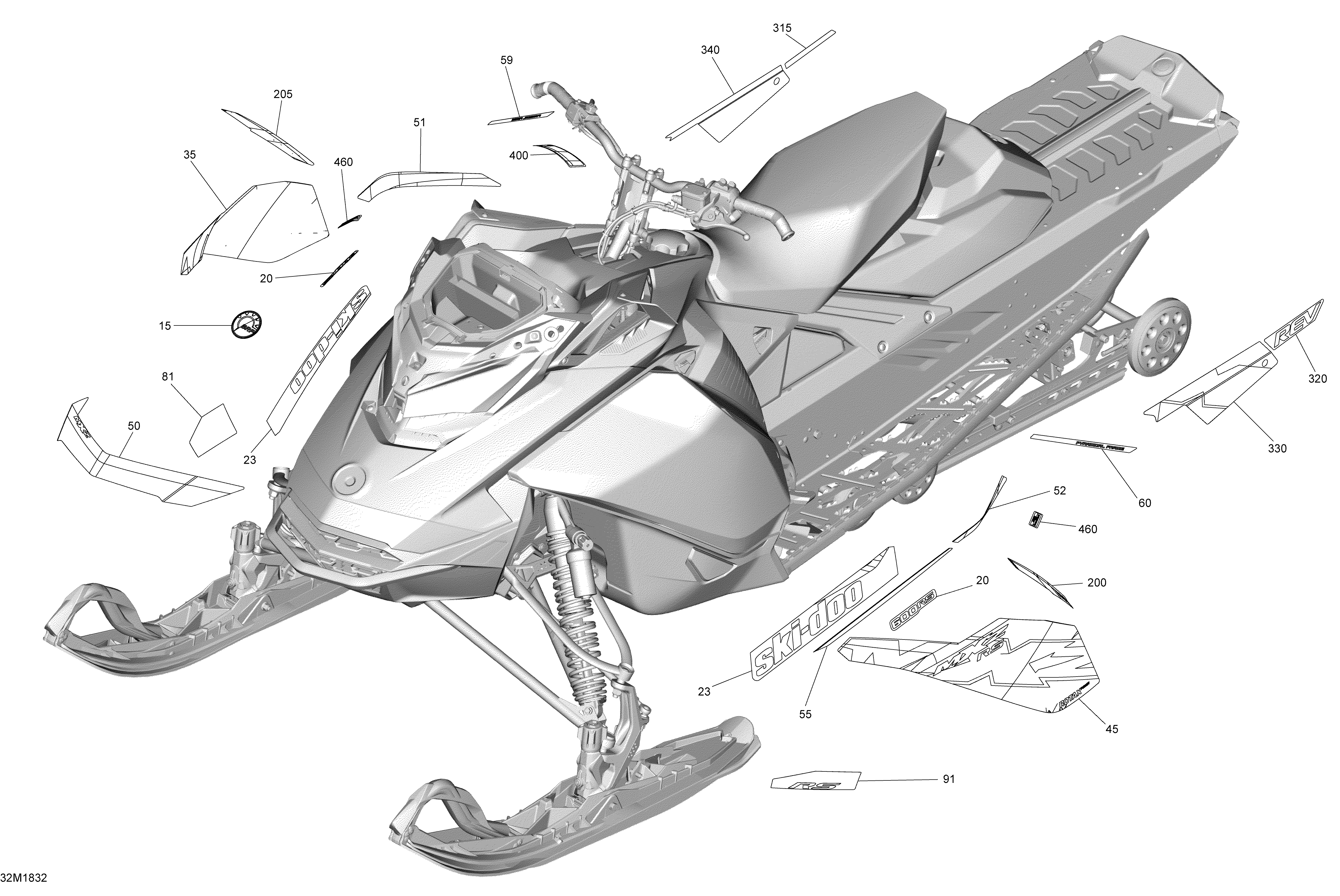

09- Decals MXZ 600 RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
15516008739 Logo BRPLogo BRP
-
20516008431 600RS Decal600RS Decal
-
23516007669 Hood Ski-Doo DecalHood Ski-Doo Decal
-
35516008433 RH Panel DecalRH Panel Decal
-
45516008432 LH Panel DecalLH Panel Decal
-
50516008603 Hood DecalHood Decal
-
51516008498 RH Rear Side Hood DecalRH Rear Side Hood Decal
-
52516008497 LH Rear Side Hood DecalLH Rear Side Hood Decal
-
55516008368 LH Side DecalLH Side Decal
-
59516008568 RH DecalRH Decal
-
60516008567 DecalDecal
-
81516008605 RH Bottom Pan DecalRH Bottom Pan Decal
-
91516008604 LH Bottom Pan DecalLH Bottom Pan Decal
-
200516007603 English Warning Decal LHEnglish Warning Decal LH
-
205516007604 English Warning Decal RHEnglish Warning Decal RH
-
315516008607 RH Rear Tunnel DecalRH Rear Tunnel Decal
-
320516008606 LH Rear Tunnel DecalLH Rear Tunnel Decal
-
330516008436 LH Front Tunnel DecalLH Front Tunnel Decal
-
340516008437 RH Front Tunnel DecalRH Front Tunnel Decal
-
400516007769 Exempt. DecalExempt. Decal
-
460516005280 Caution Decal, Hot PartsCaution Decal, Hot Parts
Все узлы модели:
- 00- Model Numbers MXZ 600RS
- 01- Cooling - 600 RS
- 01- Crankcase
- 01- Crankshaft And Pistons
- 01- Cylinder And Cylinder Head North America
- 01- Engine Cooling
- 01- Engine MXZ - 600 RS
- 01- Exhaust MXZ RS
- 01- Rave Valve
- 02- Air Intake - 600 RS
- 02- EFI
- 02- Fuel MXZ - 600 RS
- 03- Magneto
- 05- Drive MXZ - 600 RS
- 05- Pulley MXZ RS
- 06- Brakes MXZ - 600 RS
- 07- Front Shocks MXZ - 600 RS
- 07- Front Suspension And Ski MXZ RS
- 07- Steering MXZ RS
- 08- Rear Shocks MXZ RS
- 08- Rear Suspension MXZ 600 RS
- 09- Bottom Pan MXZ Engine 600 RS - Package RAC
- • 09- Decals MXZ 600 RS
- 09- Frame MXZ - 600 RS
- 09- Hood MXZ RS
- 09- Seat MXZ RS
- 09- Utilities MXZ RS
- 10- Electrical System MXZ 600 RS
- 10- Engine Harness
- 10- Main Harness - 515178366 - MXZ 600 RS
