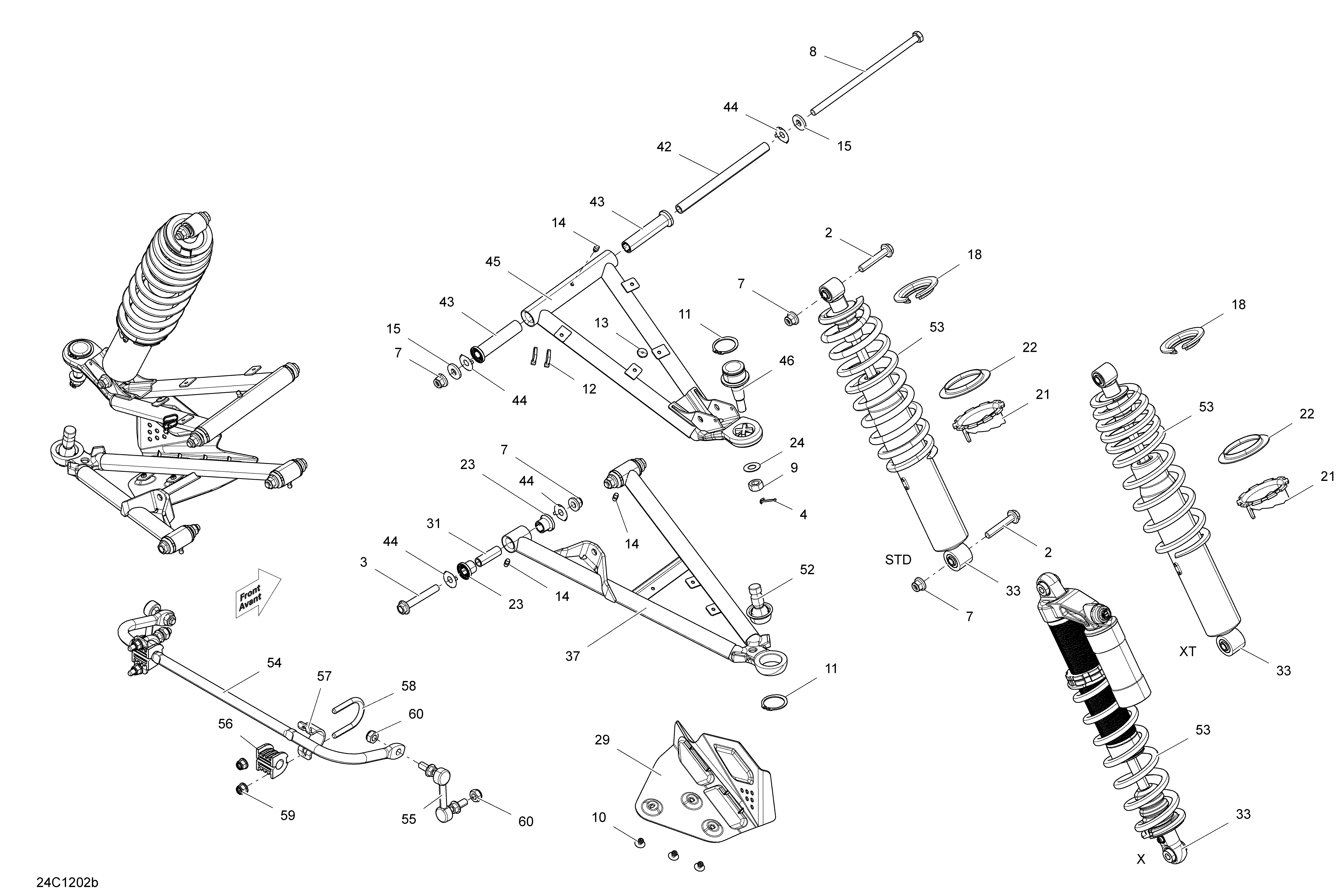

07- Front Suspension X Model для BRP Commander STD, XT, X, 1000 EFI - 2012
-
№АртикулНазвание
-
2207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
3207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
4211400017 Cotter PinCotter Pin
-
7233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
8250000510 Hex. Cap Screw M10 X 225Hex. Cap Screw M10 X 225
-
9250100099 Nut M12Nut M12
-
10293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
11293370035 CirclipCirclip
-
12293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
13390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
14408200700 Grease FittingGrease Fitting
-
15503190439 WasherWasher
-
23703500875 Bushing Kit. Includes 31Bushing Kit. Includes 31
-
24706200281 Hardened WasherHardened Washer
-
29706200616 RH ProtectorRH Protector
-
29706200615 LH ProtectorLH Protector
-
31703500875 Bushing Kit. Includes 23Bushing Kit. Includes 23
-
33706201449 Front ShockFront Shock
-
37706200742 LH Lower Suspension ArmLH Lower Suspension Arm
-
37706200744 RH Lower Suspension ArmRH Lower Suspension Arm
-
42706201061 Inner BushingInner Bushing
-
43706201062 CushionCushion
-
44706201063 Wear PlateWear Plate
-
45706200796 Suspension Upper ArmSuspension Upper Arm
-
46706202044 Ball JointBall Joint
-
52706201371 Ball JointBall Joint
-
53706201124 Yellow Front SpringYellow Front Spring
-
54706200865 Sway BarSway Bar
-
55706200894 LH Double Ball JointLH Double Ball Joint
-
55706201032 RH Double Ball JointRH Double Ball Joint
-
56706201086 Stabilizer BushingStabilizer Bushing
-
57706201087 ClampClamp
-
58506060600 U-clampU-clamp
-
59233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
60232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
