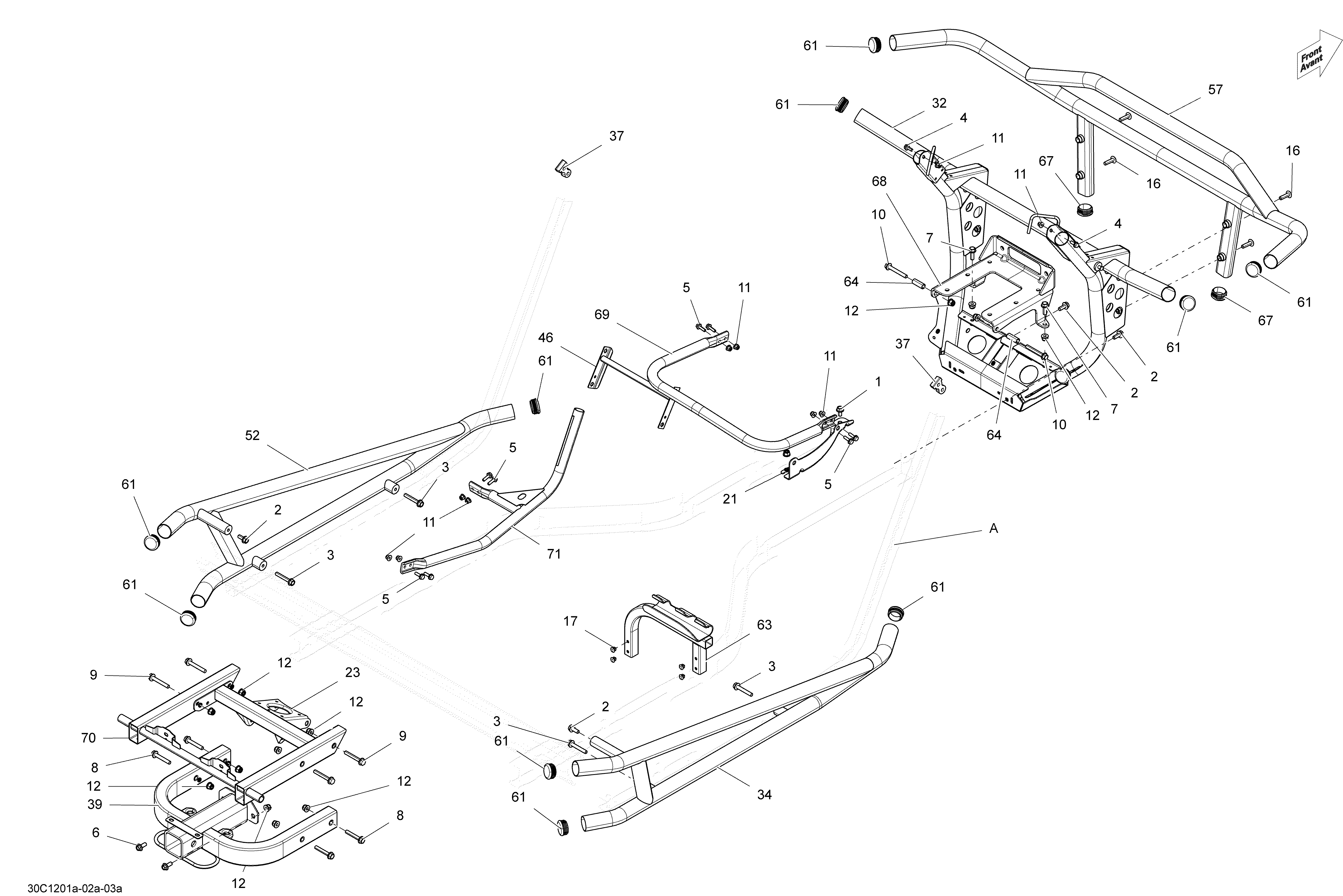

09- Frame для BRP Commander STD, XT, X, 1000 EFI - 2012
-
№АртикулНазвание
-
1207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
2207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
2207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. X ModelHex. Flanged Screw M8 X 20, Scotch Grip. X Model
-
3207585044 Hex. Flanged Screw M8 X 50. X ModelHex. Flanged Screw M8 X 50. X Model
-
4207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
7207682544 Hex. Flanged Screw M8 X 25. XT ModelHex. Flanged Screw M8 X 25. XT Model
-
8207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
9207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
10207686044 Hex. Flanged Screw M8 x 60. XT ModelHex. Flanged Screw M8 x 60. XT Model
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233281414 Hex. Flanged Elastic Nut M8. XT ModelHex. Flanged Elastic Nut M8. XT Model
-
12233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16250000197 Torx Truss Screw M8 X 30. XT, X ModelTorx Truss Screw M8 X 30. XT, X Model
-
17293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
21705201721 Front Differential SupportFront Differential Support
-
23705202166 Differential SupportDifferential Support
-
32705202614 Front BumperFront Bumper
-
34705201975 RH Rocker Panel Lower Guard. X ModelRH Rocker Panel Lower Guard. X Model
-
37705202129 Binding PlateBinding Plate
-
39715001251 Trailer Hitch Ass'yTrailer Hitch Ass'y
-
46705202463 Panel ReinforcementPanel Reinforcement
-
52705201962 LH Rocker Panel Lower Guard. X ModelLH Rocker Panel Lower Guard. X Model
-
57715000958 Black Front Bumper. XT ModelBlack Front Bumper. XT Model
-
61705202455 Cap. STD, XT ModelCap. STD, XT Model
-
61705202455 Cap. X ModelCap. X Model
-
63715001325 Frame Ass'y, BlackFrame Ass'y, Black
-
64705202499 Bushing. XT ModelBushing. XT Model
-
67705202631 Tube Cap. X Model EuropeTube Cap. X Model Europe
-
68715000704 Winch Plate. XT ModelWinch Plate. XT Model
-
69705202950 Passenger HandlePassenger Handle
-
70705202165 Box holderBox holder
-
71705202946 Console HandleConsole Handle
-
A715001417 Frame, BlackFrame, Black
