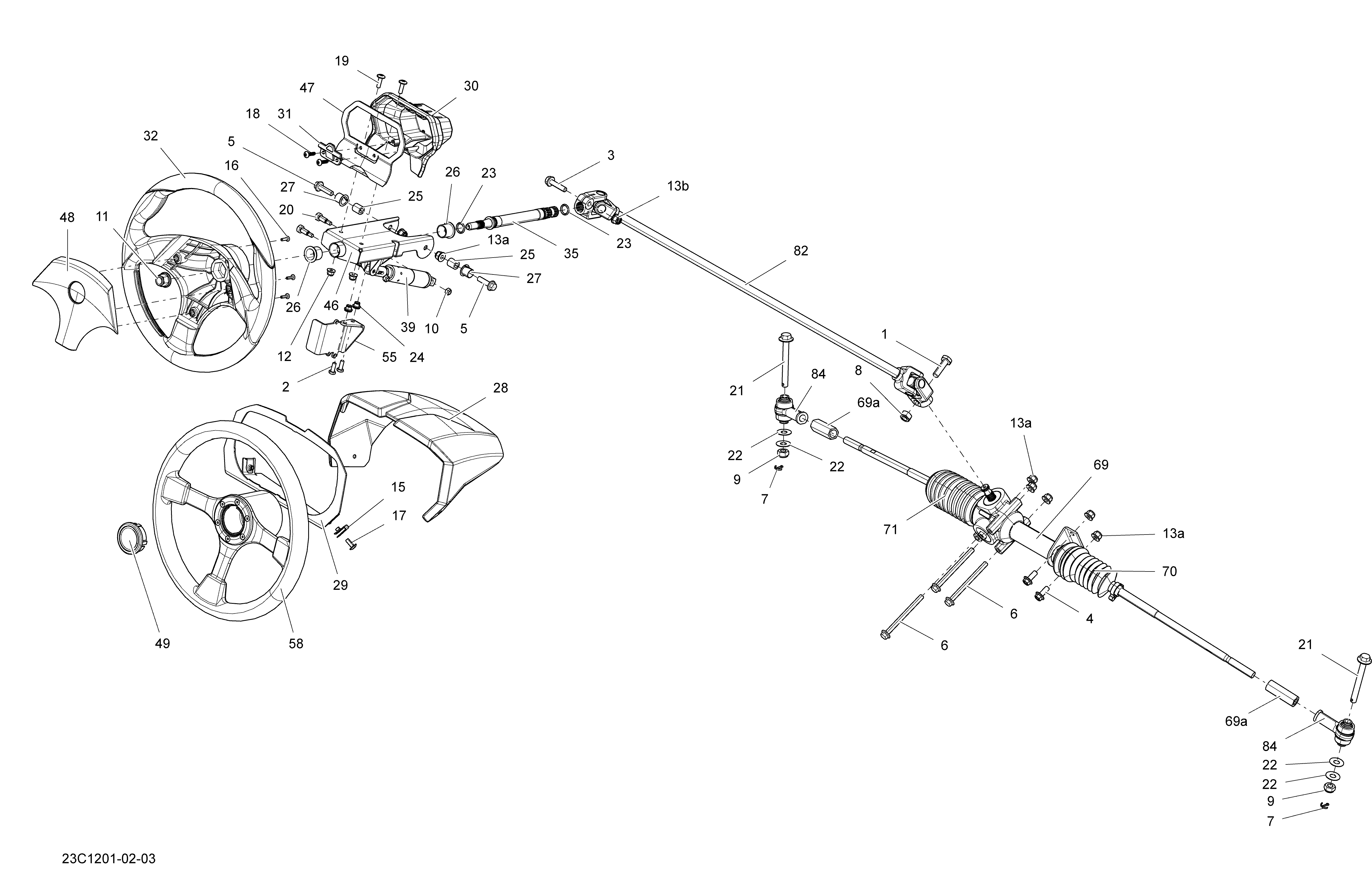

07- Steering для BRP Commander STD, XT, X, 1000 EFI - 2012
-
№АртикулНазвание
-
1207103544 Hex. Screw M10 X 35Hex. Screw M10 X 35
-
2207361644 Hex. Screw M6 X 16, Scotch Grip. EuropeHex. Screw M6 X 16, Scotch Grip. Europe
-
3207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
4207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
5207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
6207689534 Hex. Flanged Scew M8 X 95Hex. Flanged Scew M8 X 95
-
7211400017 Cotter PinCotter Pin
-
8232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
9232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
10232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
11233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
12233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
15250000048 Panel Nut M6 X 1.0. X, XT ModelPanel Nut M6 X 1.0. X, XT Model
-
16250000084 Phillips Screw K40 X 16. STD ModelPhillips Screw K40 X 16. STD Model
-
17250000129 Torx Screw M6 X 16. X, XT ModelTorx Screw M6 X 16. X, XT Model
-
18250000297 Truss Head Torx Screw K50 X 20. STD ModelTruss Head Torx Screw K50 X 20. STD Model
-
19250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250000381 Socket Head ScrewSocket Head Screw
-
21250000545 Hex. Cap Screw M10 X 88Hex. Cap Screw M10 X 88
-
22250200032 WasherWasher
-
23293300144 O-RingO-Ring
-
24293450274 Insert. EuropeInsert. Europe
-
25293900106 BushingBushing
-
26415108000 CushionCushion
-
27705600799 BushingBushing
-
28707900012 Cluster Cover. X, XT ModelCluster Cover. X, XT Model
-
29707900013 Cluster Support. X, XT ModelCluster Support. X, XT Model
-
30709400514 Speedometer Cover. STD ModelSpeedometer Cover. STD Model
-
31709400573 Latch Indicator Cover. STD ModelLatch Indicator Cover. STD Model
-
32709400650 Steering Wheel. STD ModelSteering Wheel. STD Model
-
35709400654 Steering ShaftSteering Shaft
-
39709400656 Adjustment CylinderAdjustment Cylinder
-
46709400655 Steering SupportSteering Support
-
47709400760 Cluster Support. STD ModelCluster Support. STD Model
-
48709400780 Steering Center. STD ModelSteering Center. STD Model
-
49704902065 Logo Can-Am, 35 mm. X, XT ModelLogo Can-Am, 35 mm. X, XT Model
-
55709400810 Flasher Arm Support. EuropeFlasher Arm Support. Europe
-
58715001134 Steering Wheel Kit. X, XT ModelSteering Wheel Kit. X, XT Model
-
69709401004 Steering Rack Ass'ySteering Rack Ass'y
-
70715900078 RH Boot KitRH Boot Kit
-
71715900077 LH Boot KitLH Boot Kit
-
82709400900 Steering ColumnSteering Column
-
84709400982 Ball JointBall Joint
-
13a233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13b233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
69a715900150 Nut Tie Rod EndNut Tie Rod End
