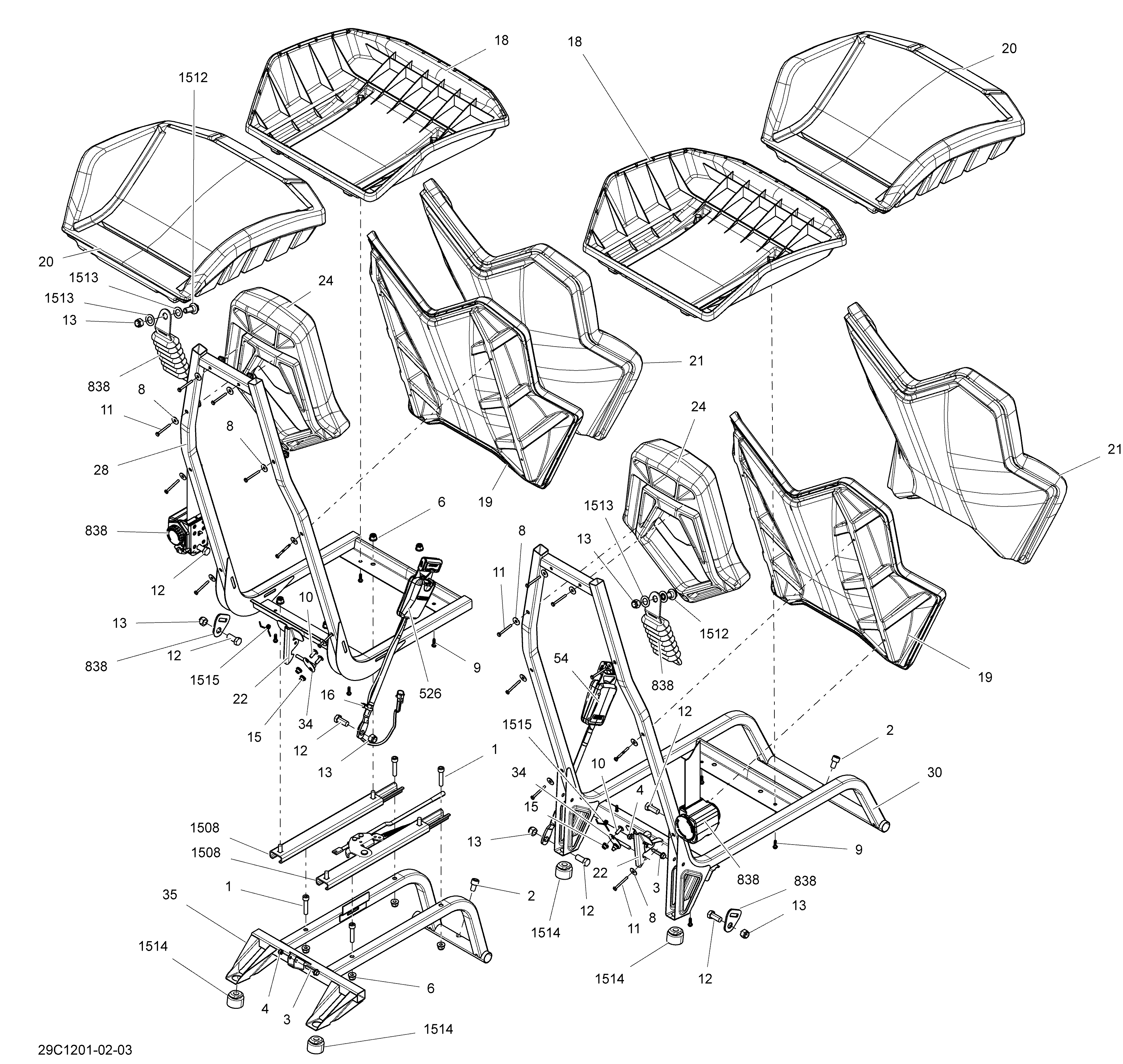

09- Seat для BRP Commander STD, XT, X, 1000 EFI - 2012
-
№АртикулНазвание
-
1205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
2205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
3207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
4232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8234062670 Flat WasherFlat Washer
-
9241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
10250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
11250000490 Hex. Washer Head Screw PT K50 X 40Hex. Washer Head Screw PT K50 X 40
-
12250000521 Hex. Cap Screw 7/16''X 1''Hex. Cap Screw 7/16''X 1''
-
13250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
15293450274 InsertInsert
-
16293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
18708000867 Cushion Ass'y X. X ModelCushion Ass'y X. X Model
-
18708000671 Cushion Ass'y. STD, XT ModelCushion Ass'y. STD, XT Model
-
19708000864 Backrest Ass'y X. X ModelBackrest Ass'y X. X Model
-
19708000669 Backrest Ass'y. STD, XT ModelBackrest Ass'y. STD, XT Model
-
20708000868 Seat Cover. X ModelSeat Cover. X Model
-
20708000674 Seat Cover. STD, XT ModelSeat Cover. STD, XT Model
-
21708000865 Backrest Cover. X ModelBackrest Cover. X Model
-
21708000675 Backrest Cover. STD, XT ModelBackrest Cover. STD, XT Model
-
22708000678 Seat LatchSeat Latch
-
24708000711 Head RestHead Rest
-
28708000739 Driver Seat FrameDriver Seat Frame
-
30708000690 Passenger Seat FramePassenger Seat Frame
-
34708000794 Lock StemLock Stem
-
35708000667 Seat MemberSeat Member
-
54708000844 Passenger Buckle SidePassenger Buckle Side
-
54708000857 Passenger Buckle Side. EuropePassenger Buckle Side. Europe
-
526708000856 Driver Buckle Side. EuropeDriver Buckle Side. Europe
-
526708000987 Driver Buckle SideDriver Buckle Side
-
838708000845 Safety BeltSafety Belt
-
838708000849 Safety Belt, Europe. EuropeSafety Belt, Europe. Europe
-
1508708000848 LH RailLH Rail
-
1508708000846 RH RailRH Rail
-
1512708000890 Safety Belt ScrewSafety Belt Screw
-
1512250000521 Hex. Cap Screw 7/16''X 1''Hex. Cap Screw 7/16''X 1''
-
1513708000891 Position WasherPosition Washer
-
1514708000899 Rubber BumperRubber Bumper
-
1515708000921 SpringSpring
