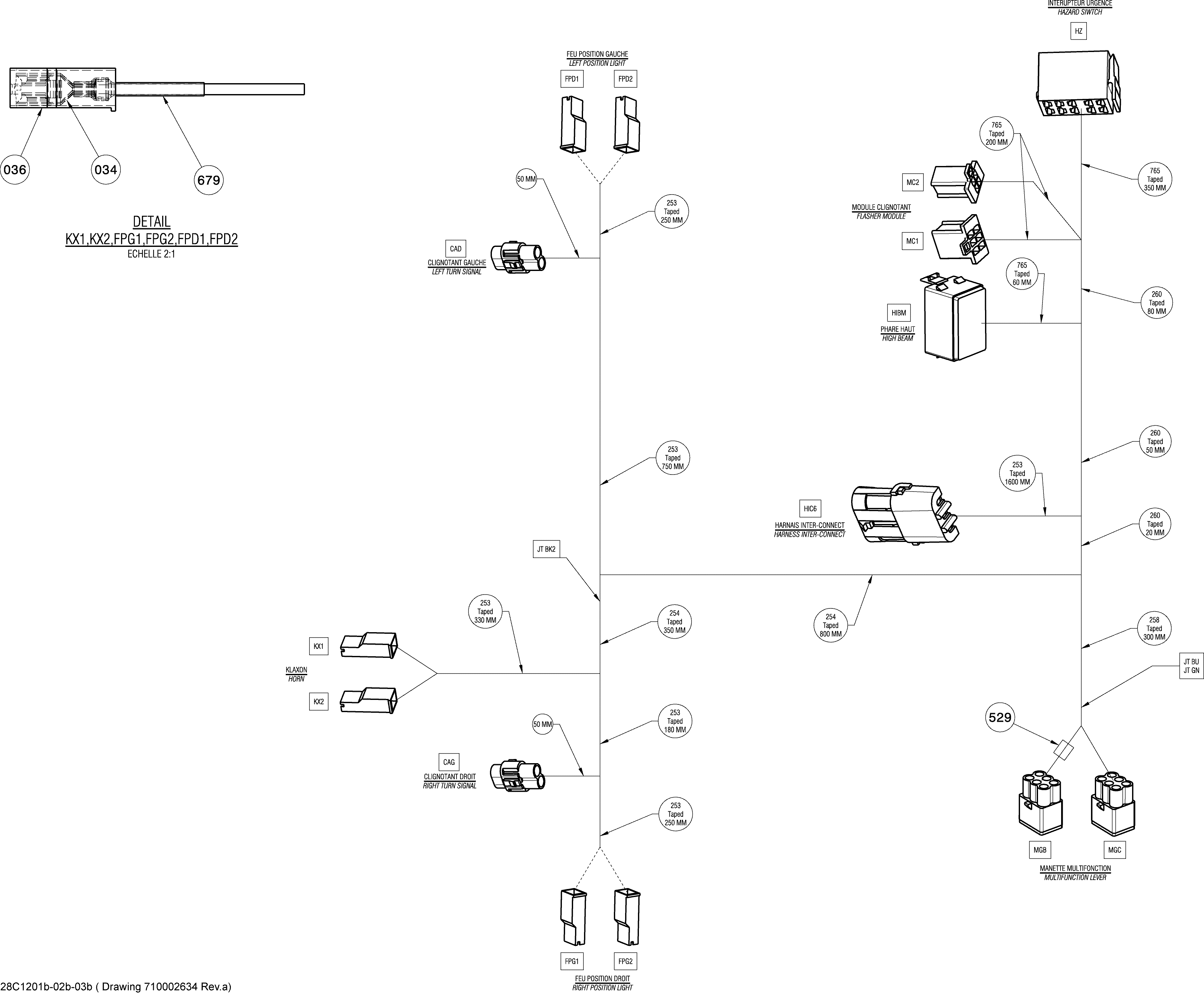

10- Main Harness Europe для BRP Commander STD, XT, X, 1000 EFI - 2012
-
№АртикулНазвание
-
1710002634 Wiring Harness Ass'y. Includes 1 to KX2Wiring Harness Ass'y. Includes 1 to KX2
-
34409010100 Female TerminalFemale Terminal
-
36409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
226278000222 Male TerminalMale Terminal
-
232278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
253515175442 Tubing 6 mmTubing 6 mm
-
254515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
258415079900 Tubing 10 mmTubing 10 mm
-
260515175319 Tubing 22 mmTubing 22 mm
-
280409012100 Female TerminalFemale Terminal
-
280409012100 Female TerminalFemale Terminal
-
280409012100 Female TerminalFemale Terminal
-
280409012100 Female TerminalFemale Terminal
-
283409209200 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
284409012300 SealSeal
-
286409012300 SealSeal
-
287710000080 CapCap
-
301409012700 DiodeDiode
-
334710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
430278001065 Wire SealWire Seal
-
504278000585 Wire Seal (20 Gauge) (Purple)(Packard)Wire Seal (20 Gauge) (Purple)(Packard)
-
525710000482 Shrink TubingShrink Tubing
-
529710000486 Coding TapeCoding Tape
-
679710000751 Shrink TubingShrink Tubing
-
764710000992 ClipClip
-
765293740027 Adhesive TapeAdhesive Tape
-
1095710001931 TerminalTerminal
-
1122710002000 HousingHousing
-
1191710002314 HousingHousing
-
1192710002313 HousingHousing
-
1193710002315 TerminalTerminal
-
1194710002407 HousingHousing
-
1213710002420 Loctite E-60NCLoctite E-60NC
-
CAD409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
CAD409010100 Female TerminalFemale Terminal
-
CAD293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
CAG710000751 Shrink TubingShrink Tubing
-
CAG409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
CAG409010100 Female TerminalFemale Terminal
-
D3293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
D4710000751 Shrink TubingShrink Tubing
-
FPD1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
FPD1409010100 Female TerminalFemale Terminal
-
FPD1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPD1710002420 Loctite E-60NCLoctite E-60NC
-
FPD2710002407 HousingHousing
-
FPD2710000992 ClipClip
-
FPD2278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
FPG1278000585 Wire Seal (20 Gauge) (Purple)(Packard)Wire Seal (20 Gauge) (Purple)(Packard)
-
FPG1278000222 Male TerminalMale Terminal
-
FPG1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPG1710002000 HousingHousing
-
FPG2710001931 TerminalTerminal
-
FPG2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPG2710000751 Shrink TubingShrink Tubing
-
FPG2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
HIBM409010100 Female TerminalFemale Terminal
-
HIBM293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
HIBM710000751 Shrink TubingShrink Tubing
-
HIBM409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
HIC6409010100 Female TerminalFemale Terminal
-
HIC6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
HIC6710002314 HousingHousing
-
HIC6710002315 TerminalTerminal
-
HZ293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
HZ710002313 HousingHousing
-
HZ710002315 TerminalTerminal
-
KX1710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
KX1710000080 CapCap
-
KX1409012300 SealSeal
-
KX1409012100 Female TerminalFemale Terminal
-
KX2710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
KX2710000080 CapCap
-
KX2409012300 SealSeal
-
KX2409012100 Female TerminalFemale Terminal
