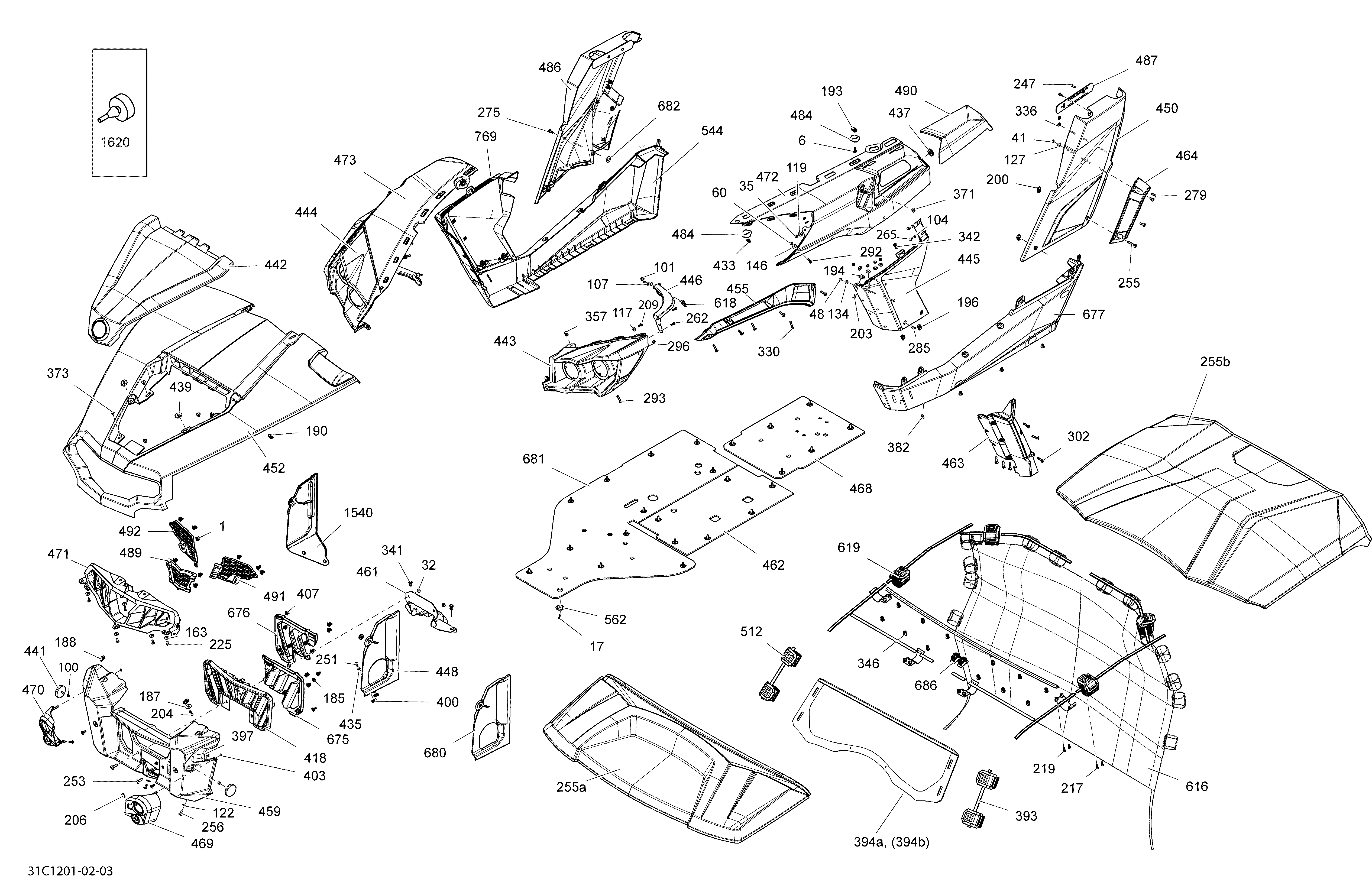

09- Body And Accessories для BRP Commander STD, XT, X, 1000 EFI - 2012
-
№АртикулНазвание
-
1517302785 ClipClip
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
17210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
32232081414 Hex. Nut M8. STD And X ModelHex. Nut M8. STD And X Model
-
35232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
41232561434 Elastic Stop Nut M6. XT ModelElastic Stop Nut M6. XT Model
-
48232561434 Elastic Stop Nut M6. XT ModelElastic Stop Nut M6. XT Model
-
60232561434 Elastic Stop Nut M6. XT ModelElastic Stop Nut M6. XT Model
-
100233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
101233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
104234051410 Flat Washer M5Flat Washer M5
-
107234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
117234062670 Flat WasherFlat Washer
-
119234062670 Flat WasherFlat Washer
-
122234062670 Flat WasherFlat Washer
-
127234062670 Flat Washer. XT ModelFlat Washer. XT Model
-
134234062670 Flat Washer. XT ModelFlat Washer. XT Model
-
146234062670 Flat Washer. XT ModelFlat Washer. XT Model
-
163234062670 Flat WasherFlat Washer
-
185234081410 Flat Washer 8 mm. STD And X ModelFlat Washer 8 mm. STD And X Model
-
187234082410 Flat Washer 8 mmFlat Washer 8 mm
-
188250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
190250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
193250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
194250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
196250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
200250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
203250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
204250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
206250000146 Truss Head Torx Screw K50 X 16. EuropeTruss Head Torx Screw K50 X 16. Europe
-
209250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
225250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
247250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
251250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
253250000197 Torx Truss Screw M8 X 30. STD And X ModelTorx Truss Screw M8 X 30. STD And X Model
-
255250000215 Torx Screw M6 X 45Torx Screw M6 X 45
-
256250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
262250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
265250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
275250000488 Torx Truss Screw M6 X 20. XT ModelTorx Truss Screw M6 X 20. XT Model
-
279250000488 Torx Truss Screw M6 X 20. XT ModelTorx Truss Screw M6 X 20. XT Model
-
285250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
293250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
296250000398 Stainless Torx Screw,Nylon Patch,M6 X 30Stainless Torx Screw,Nylon Patch,M6 X 30
-
302250000350 Torx Truss Screw M6 X 20. STD And X ModelTorx Truss Screw M6 X 20. STD And X Model
-
302250000371 Torx Screw M6 X 30 Stainless. XT ModelTorx Screw M6 X 30 Stainless. XT Model
-
302250000371 Torx Screw M6 X 30 Stainless. XT ModelTorx Screw M6 X 30 Stainless. XT Model
-
330250000371 Torx Screw M6 X 30 Stainless. XT ModelTorx Screw M6 X 30 Stainless. XT Model
-
336250100129 Push NutPush Nut
-
341293150089 Tuflok Plastic Rivet. STD And X ModelTuflok Plastic Rivet. STD And X Model
-
342293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
357293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
371293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
373293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
382293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
397293450274 InsertInsert
-
400293720053 GrommetGrommet
-
403389804300 Push Nut. EuropePush Nut. Europe
-
407517302785 ClipClip
-
418705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
433517302785 ClipClip
-
435517303439 KnobKnob
-
437517303756 GrommetGrommet
-
439705005156 Oval WasherOval Washer
-
441705002409 Reflector, AmberReflector, Amber
-
442705002881 Removable Hood, Yellow. Yellow ModelRemovable Hood, Yellow. Yellow Model
-
442705004384 Removable Hood, Red. Red ModelRemovable Hood, Red. Red Model
-
442705004385 Removable Hood, Camo. Camo ModelRemovable Hood, Camo. Camo Model
-
442705004386 Removable Hood, Black. X ModelRemovable Hood, Black. X Model
-
442705005291 Removable Hood, Magnesium. Magnsium ModelRemovable Hood, Magnesium. Magnsium Model
-
443705002885 LH Front FaciaLH Front Facia
-
444705002886 RH Front FaciaRH Front Facia
-
445705005533 LH Front Lateral Panel, Yellow. STD ModelLH Front Lateral Panel, Yellow. STD Model
-
445705005535 LH Front Lateral Panel, Red. XT Red ModelLH Front Lateral Panel, Red. XT Red Model
-
445705005533 LH Front Lateral Panel, Yellow. XT Yellow ModelLH Front Lateral Panel, Yellow. XT Yellow Model
-
445705005539 LH Front Lateral Panel, Black. X ModelLH Front Lateral Panel, Black. X Model
-
445705005541 LH Front Lateral Panel, Camo. XT Camo ModelLH Front Lateral Panel, Camo. XT Camo Model
-
445705005553 LH Front Lateral Panel, Magnesium. Magnsium ModelLH Front Lateral Panel, Magnesium. Magnsium Model
-
446705002891 Facia Front SupportFacia Front Support
-
448705002895 LH Deflector. STD And X ModelLH Deflector. STD And X Model
-
450705002904 LH Rear Lateral Pannel, Yellow. STD ModelLH Rear Lateral Pannel, Yellow. STD Model
-
450705003850 LH Rear Lateral Pannel, Red. XT Red ModelLH Rear Lateral Pannel, Red. XT Red Model
-
450705002904 LH Rear Lateral Pannel, Yellow. XT Yellow ModelLH Rear Lateral Pannel, Yellow. XT Yellow Model
-
450705004396 LH Rear Lateral Pannel, Camo. XT Camo ModelLH Rear Lateral Pannel, Camo. XT Camo Model
-
450705004398 LH Rear Lateral Pannel, Black. X ModelLH Rear Lateral Pannel, Black. X Model
-
450705005297 LH Rear Lateral Pannel, Magnesium. Magnsium ModelLH Rear Lateral Pannel, Magnesium. Magnsium Model
-
452705002915 Fixed Hood, Yellow. X ModelFixed Hood, Yellow. X Model
-
452705004379 Fixed Hood, Red. Red ModelFixed Hood, Red. Red Model
-
452705004380 Fixed Hood, Camo. Camo ModelFixed Hood, Camo. Camo Model
-
452705005289 Fixed Hood, Magnesium. Magnsium ModelFixed Hood, Magnesium. Magnsium Model
-
455715001013 Fender Extension Kit. XT ModelFender Extension Kit. XT Model
-
455715001013 Fender Extension Kit. XT Model EuropeFender Extension Kit. XT Model Europe
-
459705003306 Front Facia. STD ModelFront Facia. STD Model
-
459705003306 Front Facia. X ModelFront Facia. X Model
-
459705003306 Front Facia. XT ModelFront Facia. XT Model
-
459705003306 Front Facia. X Model EuropeFront Facia. X Model Europe
-
459705003306 Front Facia. EuropeFront Facia. Europe
-
459705005386 Front Facia. STD Model EuropeFront Facia. STD Model Europe
-
461705003399 Bottom Deflector. STD And X ModelBottom Deflector. STD And X Model
-
462705003513 LH Skid PlateLH Skid Plate
-
463715001013 Fender Extension Kit. XT ModelFender Extension Kit. XT Model
-
463715001013 Fender Extension Kit. XT ModelFender Extension Kit. XT Model
-
464715001013 Fender Extension Kit. XT ModelFender Extension Kit. XT Model
-
468705003624 Rear Skid PlateRear Skid Plate
-
469705003627 LH Flasher Cap. EuropeLH Flasher Cap. Europe
-
470705003628 RH Flasher Cap. EuropeRH Flasher Cap. Europe
-
471705003629 Upper Facia, BlackUpper Facia, Black
-
472705003030 LH Front Fender, Yellow. STD ModelLH Front Fender, Yellow. STD Model
-
472705003826 LH Front Fender, Red. XT Red ModelLH Front Fender, Red. XT Red Model
-
472705003030 LH Front Fender, Yellow. XT Yellow ModelLH Front Fender, Yellow. XT Yellow Model
-
472705004376 LH Front Fender, Camo. XT Camo ModelLH Front Fender, Camo. XT Camo Model
-
472705004378 LH Front Fender, Black. X ModelLH Front Fender, Black. X Model
-
472705005283 LH Front Fender, Magnesium. Magnsium ModelLH Front Fender, Magnesium. Magnsium Model
-
473705003029 RH Front Fender, Yellow. STD ModelRH Front Fender, Yellow. STD Model
-
473705003827 RH Front Fender, Red. XT Red ModelRH Front Fender, Red. XT Red Model
-
473705003029 RH Front Fender, Yellow. XT Yellow ModelRH Front Fender, Yellow. XT Yellow Model
-
473705004375 RH Front Fender, Camo. XT Camo ModelRH Front Fender, Camo. XT Camo Model
-
473705004377 RH Front Fender, Black. X ModelRH Front Fender, Black. X Model
-
473705005285 RH Front Fender, Magnesium. Magnsium ModelRH Front Fender, Magnesium. Magnsium Model
-
484705003841 Support PlateSupport Plate
-
486705002905 RH Rear Lateral Pannel, Yellow. STD ModelRH Rear Lateral Pannel, Yellow. STD Model
-
486705003851 RH Rear Lateral Pannel, Red. XT Red ModelRH Rear Lateral Pannel, Red. XT Red Model
-
486705002905 RH Rear Lateral Pannel, Yellow. XT Yellow ModelRH Rear Lateral Pannel, Yellow. XT Yellow Model
-
486705004395 RH Rear Lateral Pannel, Camo. XT Camo ModelRH Rear Lateral Pannel, Camo. XT Camo Model
-
486705004397 RH Rear Lateral Pannel, Black. X ModelRH Rear Lateral Pannel, Black. X Model
-
486705005299 RH Rear Lateral Pannel, Magnesium. Magnsium ModelRH Rear Lateral Pannel, Magnesium. Magnsium Model
-
487705004261 Support PlateSupport Plate
-
489705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
490705004337 CVT Inlet Cover, Yellow. Yellow ModelCVT Inlet Cover, Yellow. Yellow Model
-
490705004381 CVT Inlet Cover, Red. Red ModelCVT Inlet Cover, Red. Red Model
-
490705004382 CVT Inlet Cover, Camo. Camo ModelCVT Inlet Cover, Camo. Camo Model
-
490705004383 CVT Inlet Cover, Black. X ModelCVT Inlet Cover, Black. X Model
-
490705005287 CVT Inlet Cover, Magnesium. Magnsium ModelCVT Inlet Cover, Magnesium. Magnsium Model
-
491705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
492705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
544705005547 RH Center Lateral Panel. STD ModelRH Center Lateral Panel. STD Model
-
544705005549 RH Center Lateral Panel. XT ModelRH Center Lateral Panel. XT Model
-
544705005551 RH Center Lateral Panel. X ModelRH Center Lateral Panel. X Model
-
562705004510 CupCup
-
618207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
675705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
676705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
677705005546 LH Center Lateral Panel. STD ModelLH Center Lateral Panel. STD Model
-
677705005548 LH Center Lateral Panel. XTLH Center Lateral Panel. XT
-
677705005550 LH Center Lateral Panel. X ModelLH Center Lateral Panel. X Model
-
680705005113 LH Deflector. XT ModelLH Deflector. XT Model
-
681705005416 RH Plate SkidRH Plate Skid
-
682706200281 Hardened Washer. XT ModelHardened Washer. XT Model
-
769705005534 RH Front Lateral Panel, Yellow. STDRH Front Lateral Panel, Yellow. STD
-
769705005536 RH Front Lateral Panel, Red. XT Red ModelRH Front Lateral Panel, Red. XT Red Model
-
769705005534 RH Front Lateral Panel, Yellow. XT Yellow ModelRH Front Lateral Panel, Yellow. XT Yellow Model
-
769705005540 RH Front Lateral Panel, Black. X ModelRH Front Lateral Panel, Black. X Model
-
769705005543 RH Front Lateral Panel, Camo. XT Camo ModelRH Front Lateral Panel, Camo. XT Camo Model
-
769705005555 RH Front Lateral Panel, Magnesium. Magnsium ModelRH Front Lateral Panel, Magnesium. Magnsium Model
-
1540705002894 RH DeflectorRH Deflector
-
1620708000759 Rubber StopperRubber Stopper
