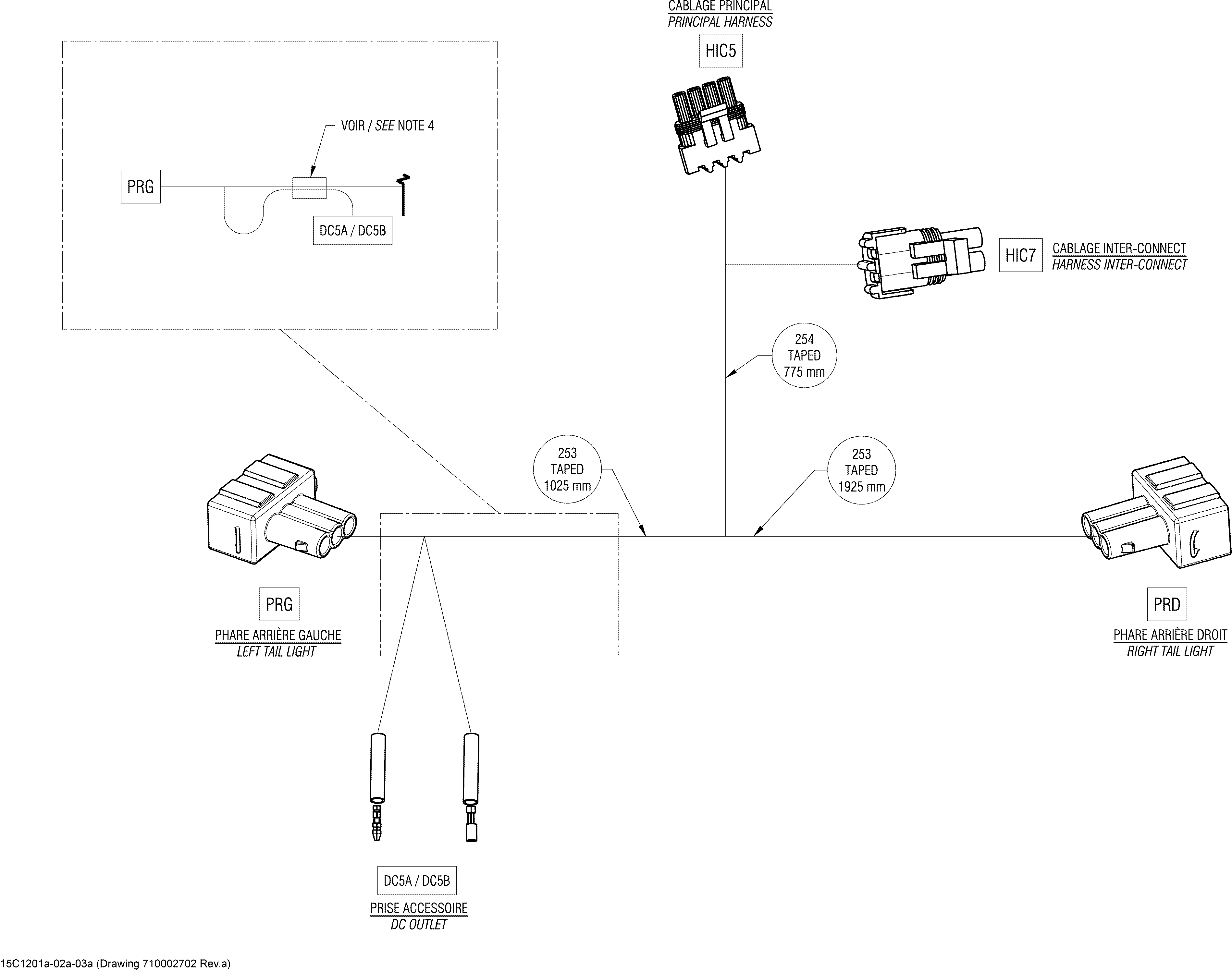

10- Electrical Harness Rear для BRP Commander STD, XT, X, 1000 EFI - 2012
-
№АртикулНазвание
-
1710002702 Rear Wiring Harness. Includes 1 to PRGRear Wiring Harness. Includes 1 to PRG
-
32278000998 Female TerminalFemale Terminal
-
228409007300 Female TerminalFemale Terminal
-
229278000223 Female TerminalFemale Terminal
-
237278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
239278000395 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
242278000218 Wire SealWire Seal
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
295278001008 Insulated SheathInsulated Sheath
-
297278001007 Insulated SheathInsulated Sheath
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
484415128501 SealSeal
-
504278000585 Wire Seal (20 Gauge) (Purple)(Packard)Wire Seal (20 Gauge) (Purple)(Packard)
-
506710000421 Female TerminalFemale Terminal
-
918278002261 Female TerminalFemale Terminal
-
1302710002711 Shrink TubingShrink Tubing
-
DC5A278001008 Insulated SheathInsulated Sheath
-
DC5A278002261 Female TerminalFemale Terminal
-
DC5B293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
DC5B278001007 Insulated SheathInsulated Sheath
-
DC5B710000421 Female TerminalFemale Terminal
-
HIC5278000395 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
HIC5278000585 Wire Seal (20 Gauge) (Purple)(Packard)Wire Seal (20 Gauge) (Purple)(Packard)
-
HIC5278000223 Female TerminalFemale Terminal
-
HIC7278000220 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
HIC7278000218 Wire SealWire Seal
-
HIC7409007300 Female TerminalFemale Terminal
-
PRD710002104 HousingHousing
-
PRD415128501 SealSeal
-
PRD278000998 Female TerminalFemale Terminal
-
PRG710002104 HousingHousing
-
PRG415128501 SealSeal
-
PRG278000998 Female TerminalFemale Terminal
