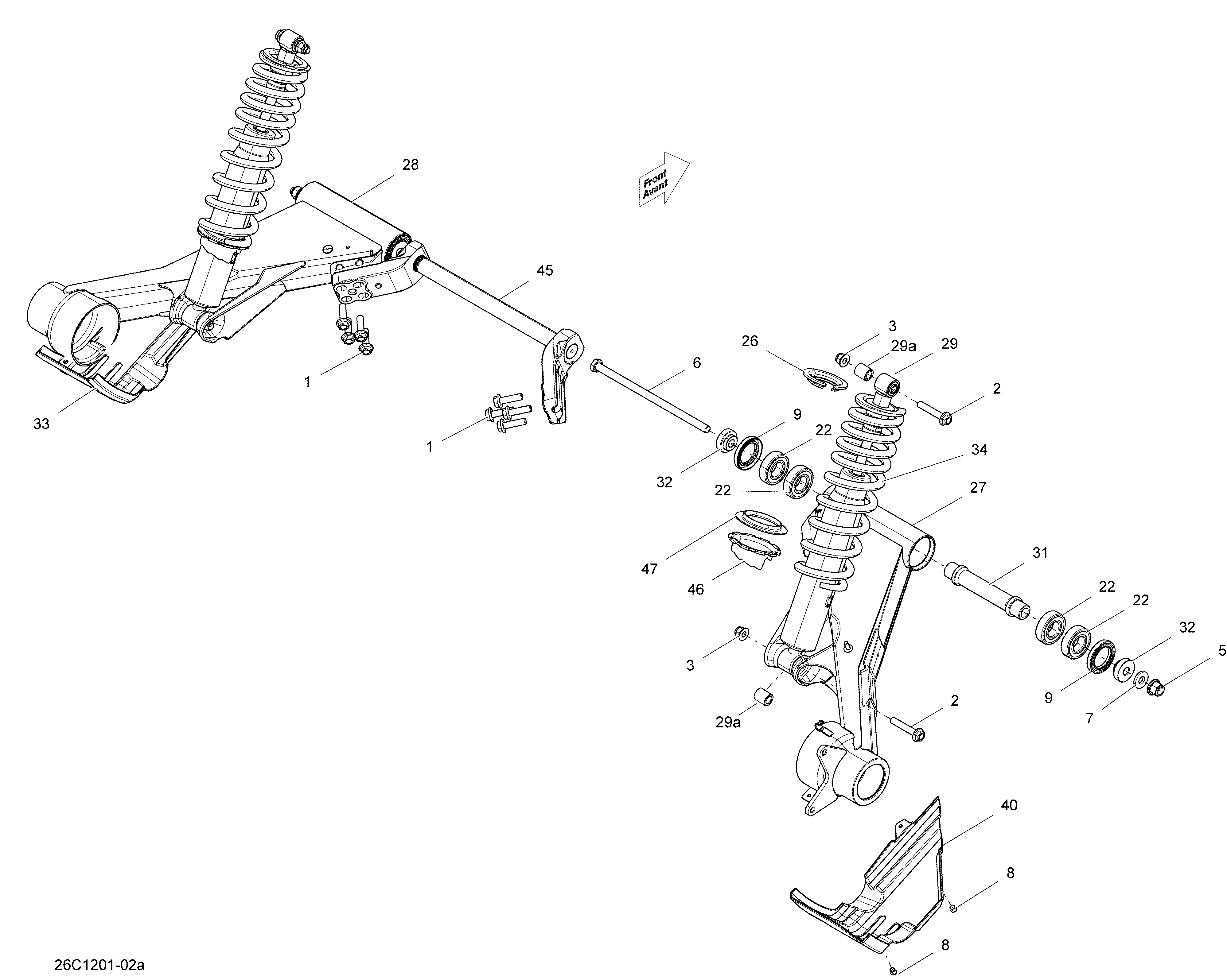

08- Rear Suspension для BRP Commander STD, XT, X, 1000 EFI - 2012
-
№АртикулНазвание
-
1207503544 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
2207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
3233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
6250000515 Hex. Cap Screw M12 X 241Hex. Cap Screw M12 X 241
-
7250200120 Flat Washer M12Flat Washer M12
-
8293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
9293200094 SealSeal
-
22293350055 Ball BearingBall Bearing
-
26706000567 Spring StopperSpring Stopper
-
27706001178 RH Swing ArmRH Swing Arm
-
28706001177 LH Swing ArmLH Swing Arm
-
29706000615 Rear Shock Ass'yRear Shock Ass'y
-
29a715900122 BushingBushing
-
31706000616 Pivot BushingPivot Bushing
-
32706000629 SpacerSpacer
-
33706000630 LH Joint ProtectorLH Joint Protector
-
34706000667 Rear Spring, Blue-Gold. STD And XT Yellow ModelRear Spring, Blue-Gold. STD And XT Yellow Model
-
34706001043 Rear Spring, Blue-Yellow. XT Red ModelRear Spring, Blue-Yellow. XT Red Model
-
34706001045 Rear Spring, Green-Yellow. XT Magnesium And CAMO ModelRear Spring, Green-Yellow. XT Magnesium And CAMO Model
-
40706000814 RH Joint ProtectorRH Joint Protector
-
45706000909 Sway Bar Ass'ySway Bar Ass'y
-
46706000910 Adjustable RingAdjustable Ring
-
47706000911 Protector RingProtector Ring
