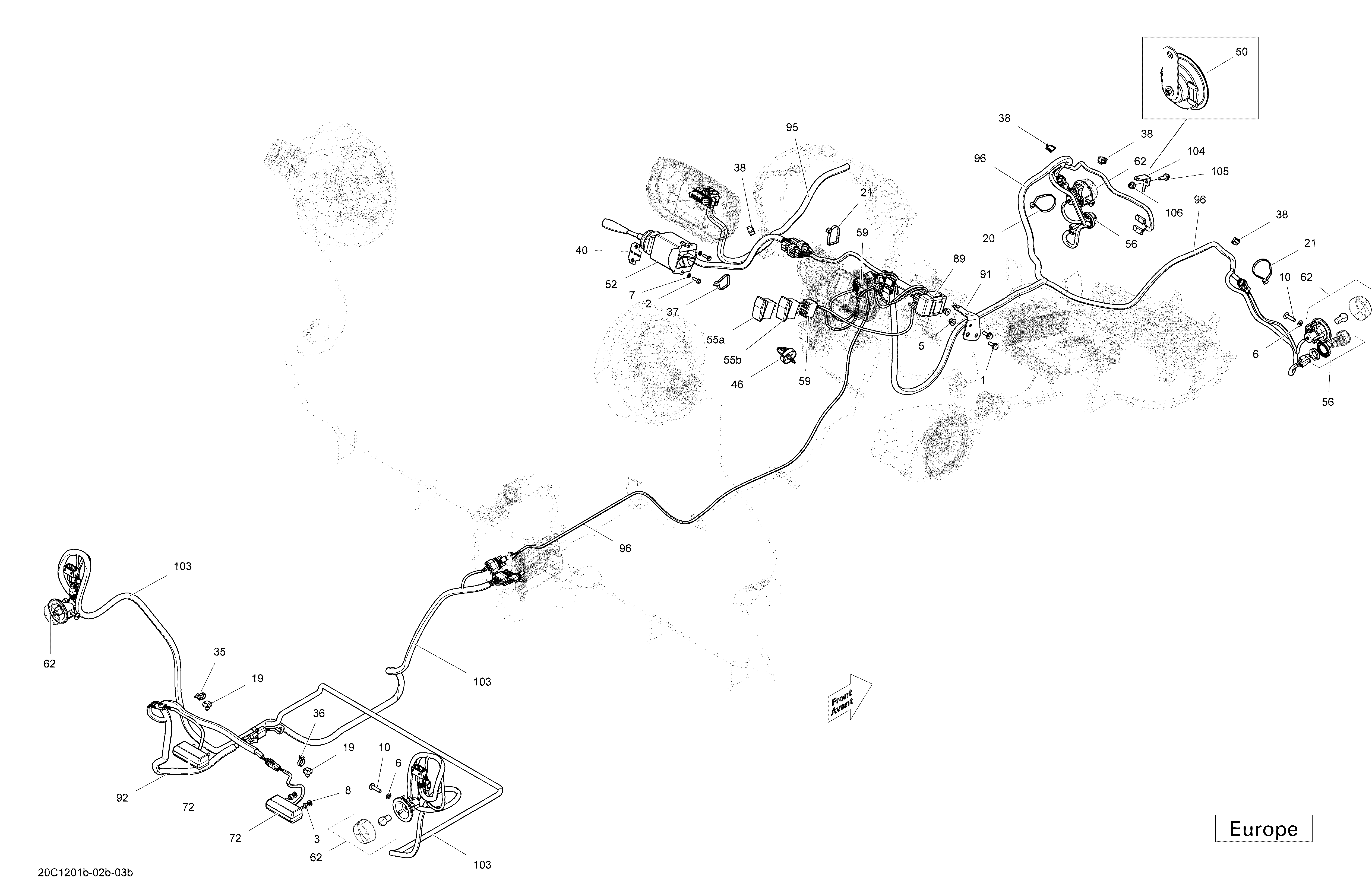

10- Electrical System Europe для BRP Commander STD, XT, X, 1000 EFI - 2012
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
3232061600 Hex. Nut M6Hex. Nut M6
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6234061410 Flat Washer 6 mmFlat Washer 6 mm
-
7234151401 Lock Washer 5 mmLock Washer 5 mm
-
8234161601 Lock Washer Helical M6Lock Washer Helical M6
-
10250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
19293730018 Mount DartMount Dart
-
20293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
21293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
37414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38414227300 ClipClip
-
40704902614 Flasher DecalFlasher Decal
-
46710000817 Black-Electronic KeyBlack-Electronic Key
-
50710000983 HornHorn
-
52710001721 Turn SignalTurn Signal
-
56710001726 Day LightDay Light
-
59710002625 Wiring Harness Ass'yWiring Harness Ass'y
-
62710002047 FlasherFlasher
-
72710002055 License LightLicense Light
-
89710002393 Flasher UnitFlasher Unit
-
91710002408 SupportSupport
-
92710002220 Rear Harness Ass'yRear Harness Ass'y
-
95710002625 Wiring Harness Ass'yWiring Harness Ass'y
-
96710002634 Wiring Harness Ass'yWiring Harness Ass'y
-
103710002702 Rear Wiring HarnessRear Wiring Harness
-
103710002703 Rear Wiring Harness. EuropeRear Wiring Harness. Europe
-
104709200284 SupportSupport
-
105207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
106233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
55a710001725 Hi/Low Beam SwitchHi/Low Beam Switch
-
55b710002076 Switch. EuropeSwitch. Europe
