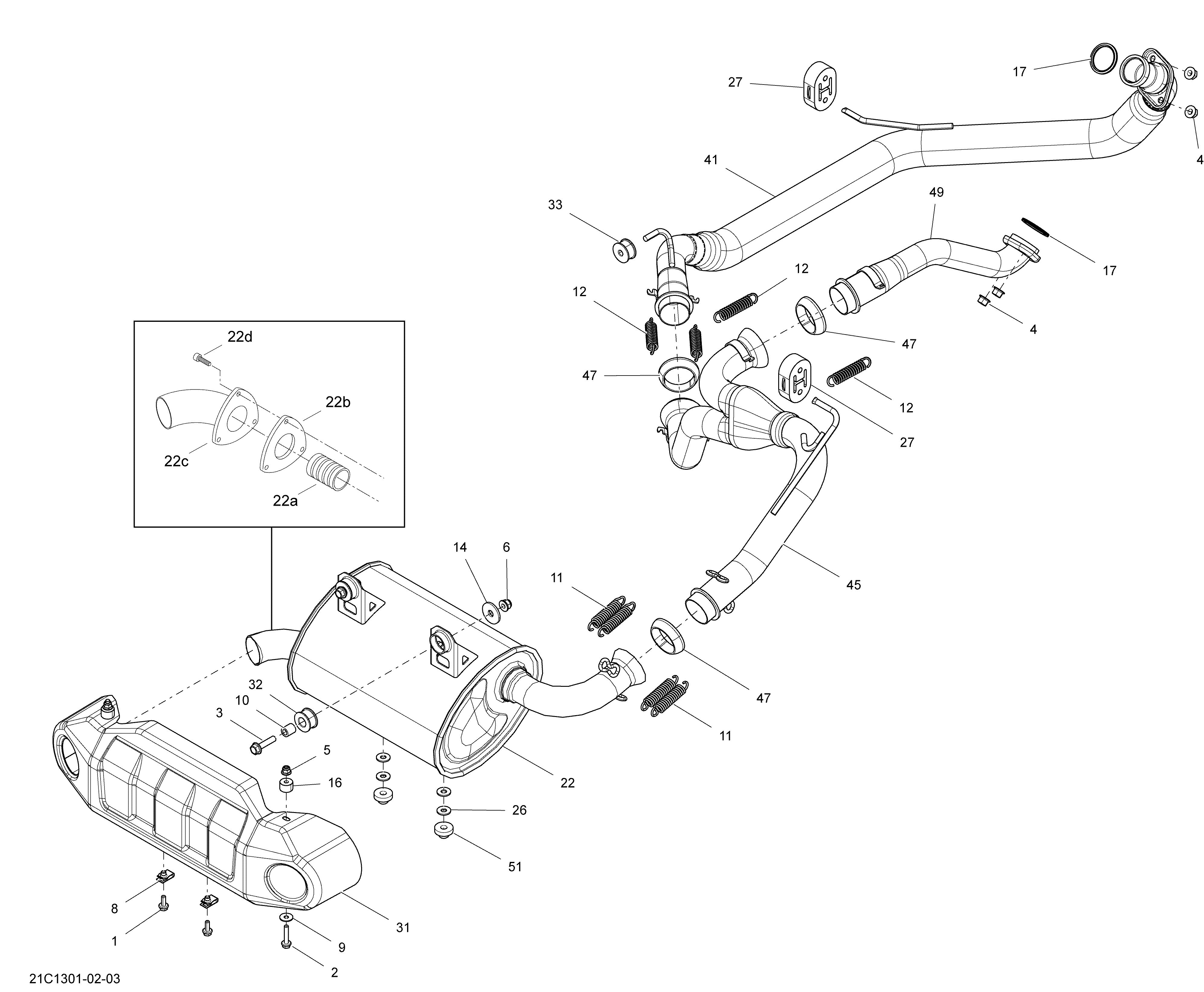

01- Exhaust System для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
3207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
4233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
9250200082 Flat WasherFlat Washer
-
10293900106 BushingBushing
-
11415107100 SpringSpring
-
12415107100 SpringSpring
-
14503032900 WasherWasher
-
16707000882 BushingBushing
-
17707600317 GasketGasket
-
22707600545 Muffler Ass'yMuffler Ass'y
-
22707600753 Muffler Ass'y. EuropeMuffler Ass'y. Europe
-
27707600638 Rubber BumperRubber Bumper
-
31707600675 DeflectorDeflector
-
32707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
33707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
41707601015 Front Head PipeFront Head Pipe
-
45707601020 Link Head PipeLink Head Pipe
-
47707601033 Exhaust GasketExhaust Gasket
-
49707601018 Rear Head PipeRear Head Pipe
-
51709200285 GrommetGrommet
-
22a715900089 Spark ArrestorSpark Arrestor
-
22b715900090 GasketGasket
-
22c715900091 Muffler Outlet End PieceMuffler Outlet End Piece
-
22d205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
