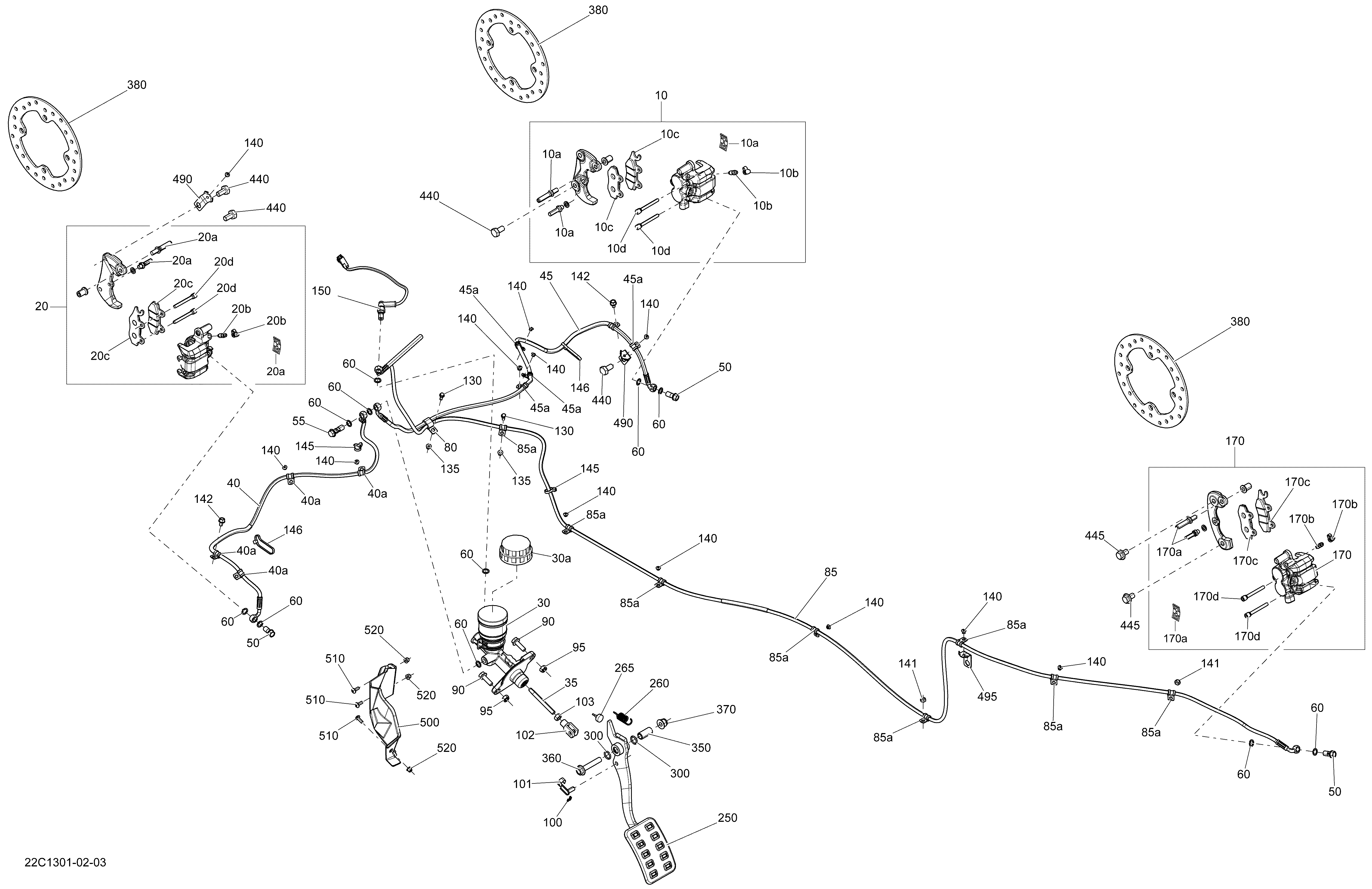

06- Brakes для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
10705600678 RH Caliper. Includes 10 to 10dRH Caliper. Includes 10 to 10d
-
10a715500333 Spring Boot KitSpring Boot Kit
-
10b705600080 Bleeding ScrewBleeding Screw
-
10c715500336 Brake Pad KitBrake Pad Kit
-
10d715500337 Pin SetPin Set
-
20705600679 LH Caliper. Includes 20 to 20dLH Caliper. Includes 20 to 20d
-
20a715500333 Spring Boot KitSpring Boot Kit
-
20b705600080 Bleeding ScrewBleeding Screw
-
20c715500335 Brake Pad KitBrake Pad Kit
-
20d715500337 Pin SetPin Set
-
30705600681 Master Cylinder. Includes 30 to 30aMaster Cylinder. Includes 30 to 30a
-
30a715500332 Diaphragm Cap KitDiaphragm Cap Kit
-
35705600833 Master Cylinder RodMaster Cylinder Rod
-
40705600943 LH Front Hose. Includes 40 to 40aLH Front Hose. Includes 40 to 40a
-
40a705600459 ClampClamp
-
45705600944 RH Front Hose. Includes 45 to 45aRH Front Hose. Includes 45 to 45a
-
45a705600459 ClampClamp
-
50705600609 Banjo BoltBanjo Bolt
-
55705600958 Banjo BoltBanjo Bolt
-
60705600310 Copper WasherCopper Washer
-
80293650220 ClampClamp
-
85705600945 Rear Flexible Hose. Includes 85 to 85aRear Flexible Hose. Includes 85 to 85a
-
85a705600459 ClampClamp
-
90207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
95232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
100371800700 Cotter PinCotter Pin
-
101250400056 PinPin
-
102705600100 YokeYoke
-
103232081414 Hex. Nut M8Hex. Nut M8
-
130210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
135233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
140390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
141232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
142210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
145414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
146414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
150705600946 Brake SwitchBrake Switch
-
170705600872 Rear Caliper. Includes 170 to 170dRear Caliper. Includes 170 to 170d
-
170a715500333 Spring Boot KitSpring Boot Kit
-
170b705600080 Bleeding ScrewBleeding Screw
-
170c715500336 Brake Pad KitBrake Pad Kit
-
170d715500337 Pin SetPin Set
-
250705600724 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265708000759 Rubber StopperRubber Stopper
-
300293300144 O-RingO-Ring
-
350705600815 Inner SpacerInner Spacer
-
360207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
370233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
380705600684 Brake DiscBrake Disc
-
440250000057 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
445250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
490705601088 BracketBracket
-
495705601088 BracketBracket
-
500705600917 LH Front DeflectorLH Front Deflector
-
510250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
520233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
