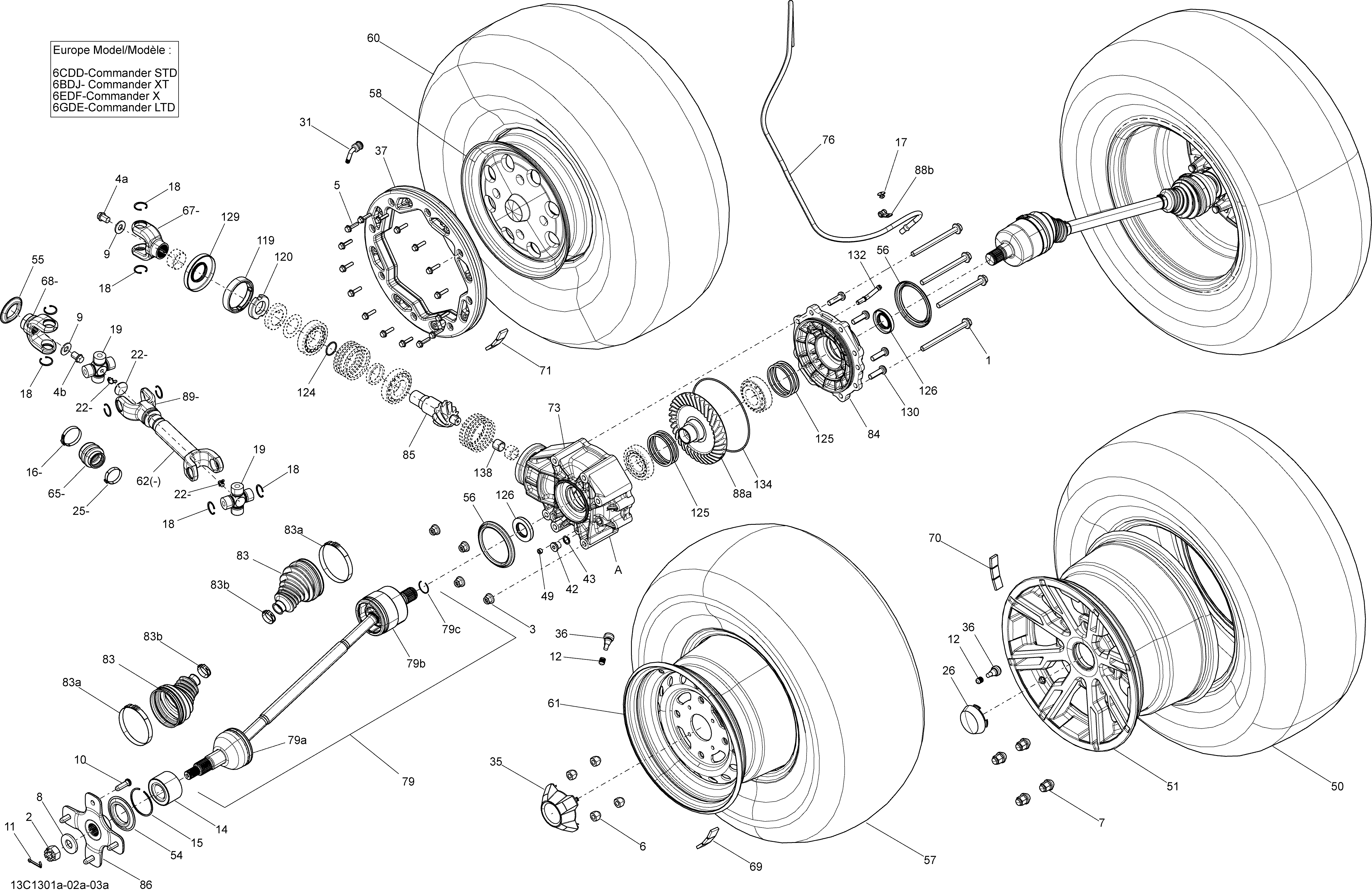

08- Drive System, Rear Europe для BRP Commander STD, DPS, XT, 800R EFI - 2013
-
№АртикулНазвание
-
1230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
2250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
3233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
4a250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
4b250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
6250100042 Wheel NutWheel Nut
-
7250100082 Chrome Wheel Nut M10 X 1.25. XT, DPSChrome Wheel Nut M10 X 1.25. XT, DPS
-
7250100082 Chrome Wheel Nut M10 X 1.25. DPSChrome Wheel Nut M10 X 1.25. DPS
-
7250100082 Chrome Wheel Nut M10 X 1.25. XT Except CAMOChrome Wheel Nut M10 X 1.25. XT Except CAMO
-
7250100100 Black Wheel Nut M10 X 1.25. XT CAMOBlack Wheel Nut M10 X 1.25. XT CAMO
-
7250100100 Black Wheel Nut M10 X 1.25. XT CAMOBlack Wheel Nut M10 X 1.25. XT CAMO
-
7250100082 Chrome Wheel Nut M10 X 1.25. DPSChrome Wheel Nut M10 X 1.25. DPS
-
8250200049 Spring WasherSpring Washer
-
9250200102 Flat Washer M12Flat Washer M12
-
10250300045 Wheel StudWheel Stud
-
11250400036 Cotter PinCotter Pin
-
12293000110 Valve Cap. Except XValve Cap. Except X
-
14293350040 Cone BearingCone Bearing
-
15293370019 CirclipCirclip
-
16293650138 Oetiker Gear ClampOetiker Gear Clamp
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18715900102 Snap RingSnap Ring
-
19715900186 U-JointU-Joint
-
22715900184 Grease FittingGrease Fitting
-
25509000045 Oetiker Gear ClampOetiker Gear Clamp
-
26705400504 Wheel Cap. XT CAMOWheel Cap. XT CAMO
-
26705400504 Wheel Cap. XT CAMOWheel Cap. XT CAMO
-
26705400520 Wheel Cap. XT, DPSWheel Cap. XT, DPS
-
26705400520 Wheel Cap. DPSWheel Cap. DPS
-
26705400520 Wheel Cap. XT Except CAMOWheel Cap. XT Except CAMO
-
26705400520 Wheel Cap. DPSWheel Cap. DPS
-
36705400193 Rim Valve With CapRim Valve With Cap
-
36705400193 Rim Valve With Cap. DPSRim Valve With Cap. DPS
-
36705400193 Rim Valve With Cap. XT CAMORim Valve With Cap. XT CAMO
-
36705400193 Rim Valve With Cap. XT EuropeRim Valve With Cap. XT Europe
-
36705400193 Rim Valve With Cap. DPSRim Valve With Cap. DPS
-
42705500504 Fill Level PlugFill Level Plug
-
43705500506 Copper WasherCopper Washer
-
49705500894 Drain PlugDrain Plug
-
49705501724 Plug Drain. EuropePlug Drain. Europe
-
50705500964 Rear Tire. XT, DPSRear Tire. XT, DPS
-
50705500964 Rear Tire. DPSRear Tire. DPS
-
50705500964 Rear Tire. XT CAMORear Tire. XT CAMO
-
50705500964 Rear Tire. DPSRear Tire. DPS
-
50705501295 Rear Tire. XT EuropeRear Tire. XT Europe
-
50705501295 Rear Tire. XT EuropeRear Tire. XT Europe
-
51705500965 Silver Rear Rim. XT, DPSSilver Rear Rim. XT, DPS
-
51705500965 Silver Rear Rim. DPSSilver Rear Rim. DPS
-
51705500965 Silver Rear Rim. XT EuropeSilver Rear Rim. XT Europe
-
51705500965 Silver Rear Rim. DPSSilver Rear Rim. DPS
-
51705501261 Black Rear Rim. XT CAMOBlack Rear Rim. XT CAMO
-
51705501261 Black Rear Rim. XT CAMOBlack Rear Rim. XT CAMO
-
54705501121 Wear SleeveWear Sleeve
-
55705501123 ProtectorProtector
-
56705501124 Wear RingWear Ring
-
61705501623 Black Rear Rim, BlackBlack Rear Rim, Black
-
62705501257 Drive Axle Ass'yDrive Axle Ass'y
-
65715900118 Rubber BootRubber Boot
-
67715900101 Fixe YokeFixe Yoke
-
68705501373 Fixed JointFixed Joint
-
69705501385 1/2 OZ Weight1/2 OZ Weight
-
71705501385 1/2 OZ Weight1/2 OZ Weight
-
73705501542 LH Rear Cover. EuropeLH Rear Cover. Europe
-
76415080200 Hose, PolyurethaneHose, Polyurethane
-
79705501481 Half ShaftHalf Shaft
-
79a705501776 CV JointCV Joint
-
79b705501780 Plunging JointPlunging Joint
-
79c705501781 CirclipCirclip
-
83705501777 Rubber Boot KitRubber Boot Kit
-
83a715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
83b715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
84705501541 RH Rear Cover. EuropeRH Rear Cover. Europe
-
85703500834 Pinion 10 Tooth Kit. EuropePinion 10 Tooth Kit. Europe
-
86705501713 Wheel HubWheel Hub
-
88b705600459 ClampClamp
-
89715900106 Spline YokeSpline Yoke
-
119705501549 Nut. EuropeNut. Europe
-
120705501550 Nut. EuropeNut. Europe
-
124705501554 O-Ring. EuropeO-Ring. Europe
-
125703500835 Differential Shim Kit. EuropeDifferential Shim Kit. Europe
-
126705501556 Oil Seal. EuropeOil Seal. Europe
-
129705501557 Oil Seal. EuropeOil Seal. Europe
-
130705501562 Bolt. EuropeBolt. Europe
-
132705501584 Breather Tube. EuropeBreather Tube. Europe
-
134705501711 O-Ring. EuropeO-Ring. Europe
-
138703500836 Needle Bearing Ass'y. EuropeNeedle Bearing Ass'y. Europe
-
A705501723 Rear Differential Ass'y. EuropeRear Differential Ass'y. Europe
